ARTIX-7 FPGA Development Board AX7035 User Manual

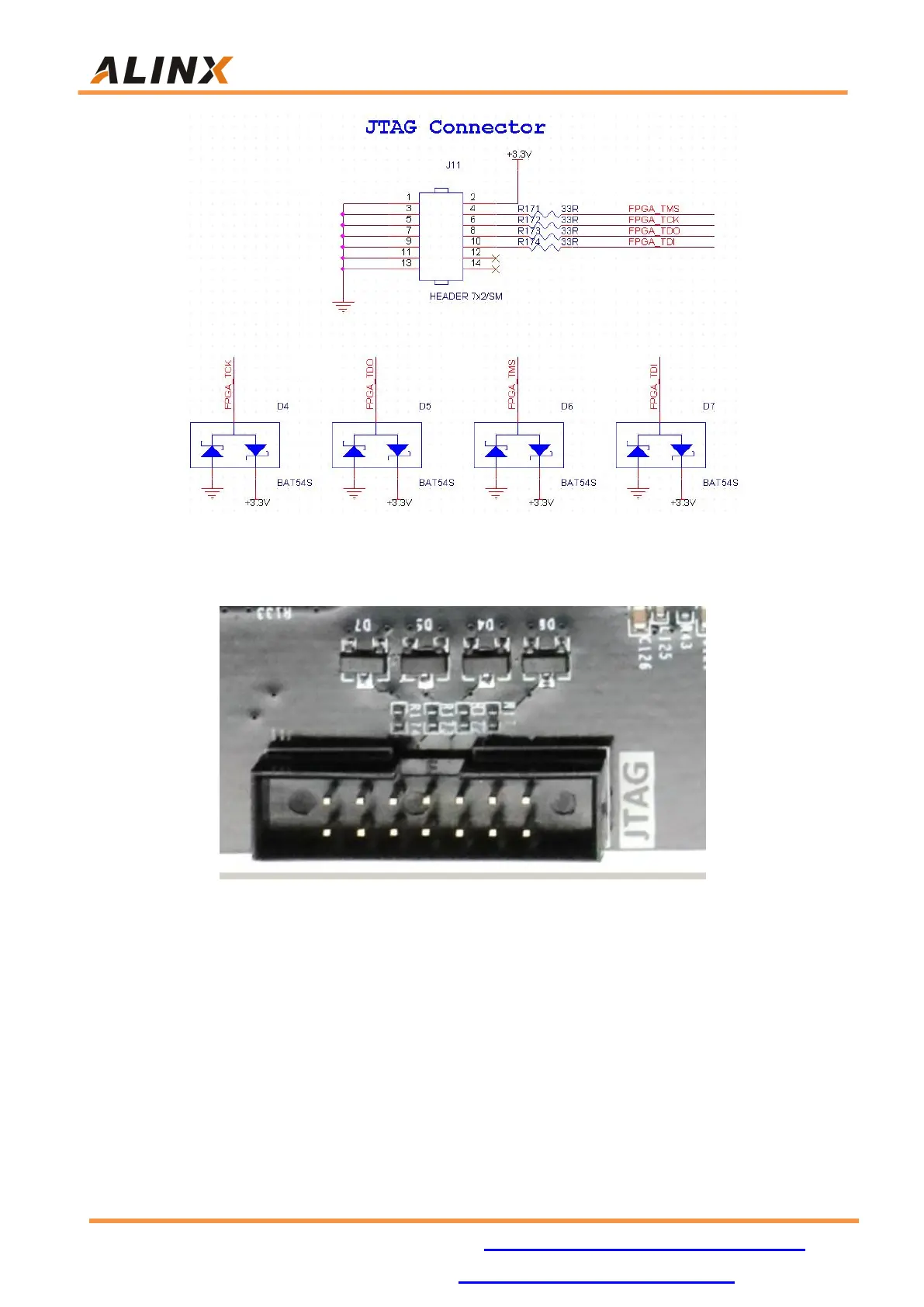

Figure 19-1: JTAG Interface Schematic
Figure 19-2: JTAG Interface on the FPGA board
Be careful not to hot swap when JTAG cable is plugged and unplugged.
Part 20: User Keys
The AX7035 FPGA development board contains one reset key and four
user keys KEY1~KEY4. All keys are connected to the normal IO of the FPGA.
