ARTIX-7 FPGA Development Board AX7035 User Manual
33 / 42
DIG5
K6
Corresponding segment F
DIG6
K3
Corresponding segment G
DIG7
H4
Corresponding point DP
SEL0
M2
The first digital tube from the right
SEL1
N4
The second digital tube from the right
SEL2
L5
The third digital tube from the right
SEL3
L4
The fourth digital tube from the right
SEL4
M16
The fifth digital tube from the right
SEL5
M17
The sixth digital tube from the right
Part 16: Temperature Sensor
A high-precision, low-power, digital temperature sensor chip is mounted on
the AX7035 FPGA development board, and the model is LM75 of ON
Semiconductor. The temperature accuracy of the LM75 chip is 0.5 degrees.
The sensor and FPGA are directly connected to the I2C digital interface. The
FPGA reads the temperature near the current FPGA development board
through the I2C interface. Figure 16-1 below shows the design of the LM75
sensor chip.

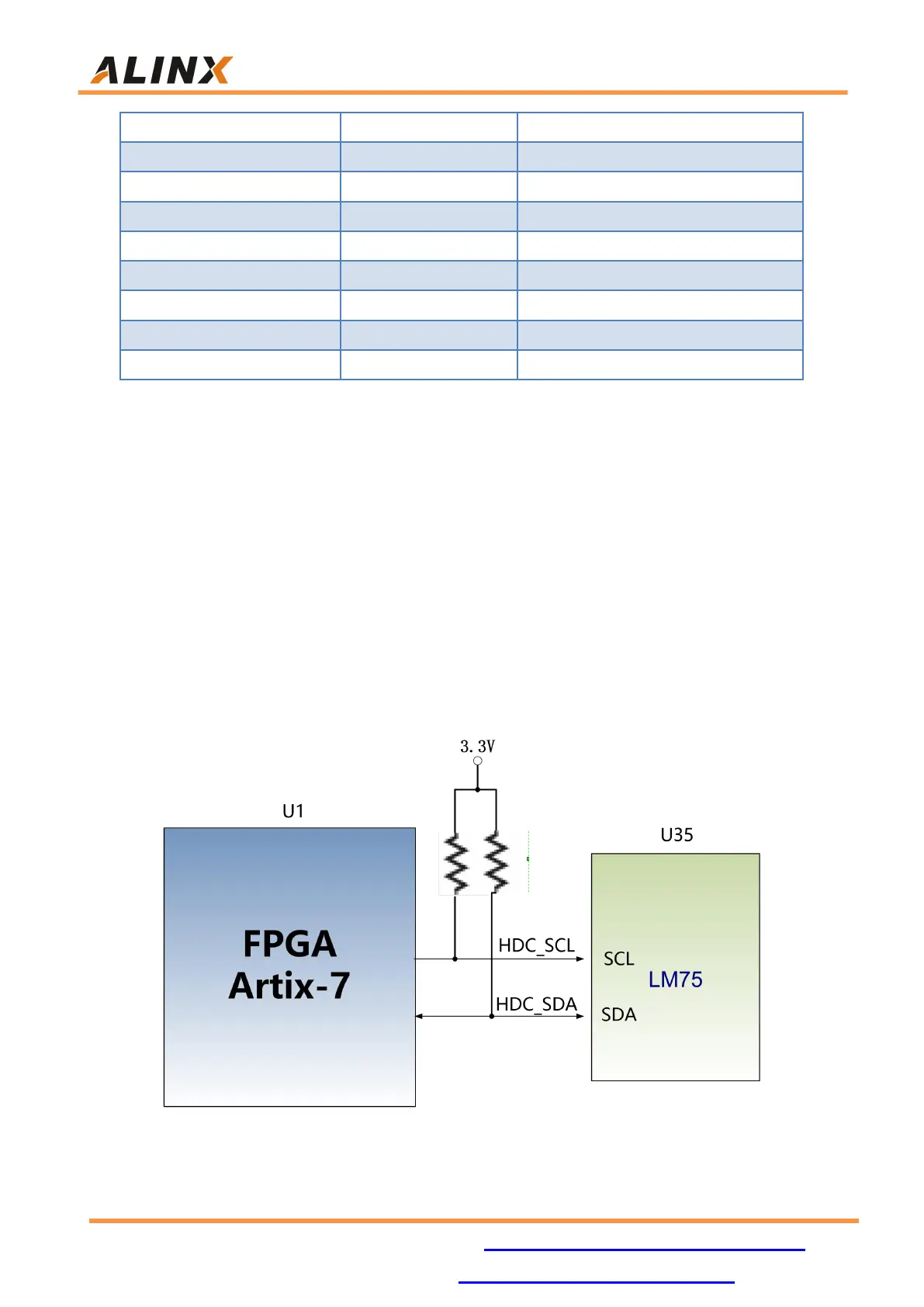

Figure 16-1: LM75 Sensor Schematic
