ARTIX-7 FPGA Development Board AX7035 User Manual
32 / 42

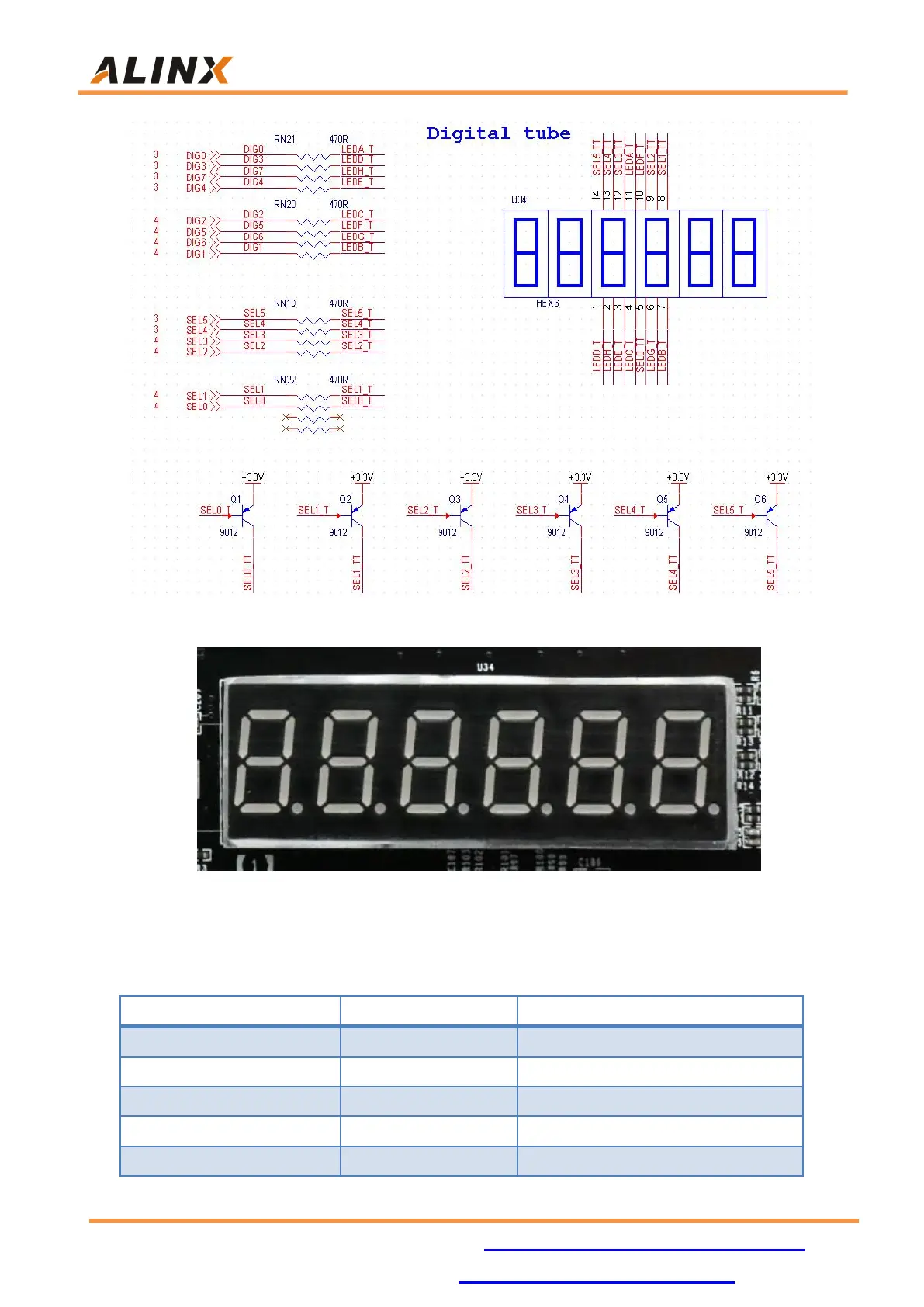

Figure 15-2: Digital Tube Schematic
Figure 15-3: Digital Tube on the FPGA Board
Digital tube pin assignment
Pin Name
FPGA Pin
Description
DIG0
J5
Corresponding segment A
DIG1
M3
Corresponding segment B
DIG2
J6
Corresponding segment C
DIG3
H5
Corresponding segment D
DIG4
G4
Corresponding segment E
