ARTIX-7 FPGA Development Board AX7035 User Manual
36 / 42
21
B18
22
B17
23
A19
24
A18
25
C19
26
C18
27
A20
28
B20
29
C17
30
D17
31
D19
32
E19
33
E18
34
F18
35
E17
36
F16
37
GND
38
GND
39
+3.3V
40
+3.3V

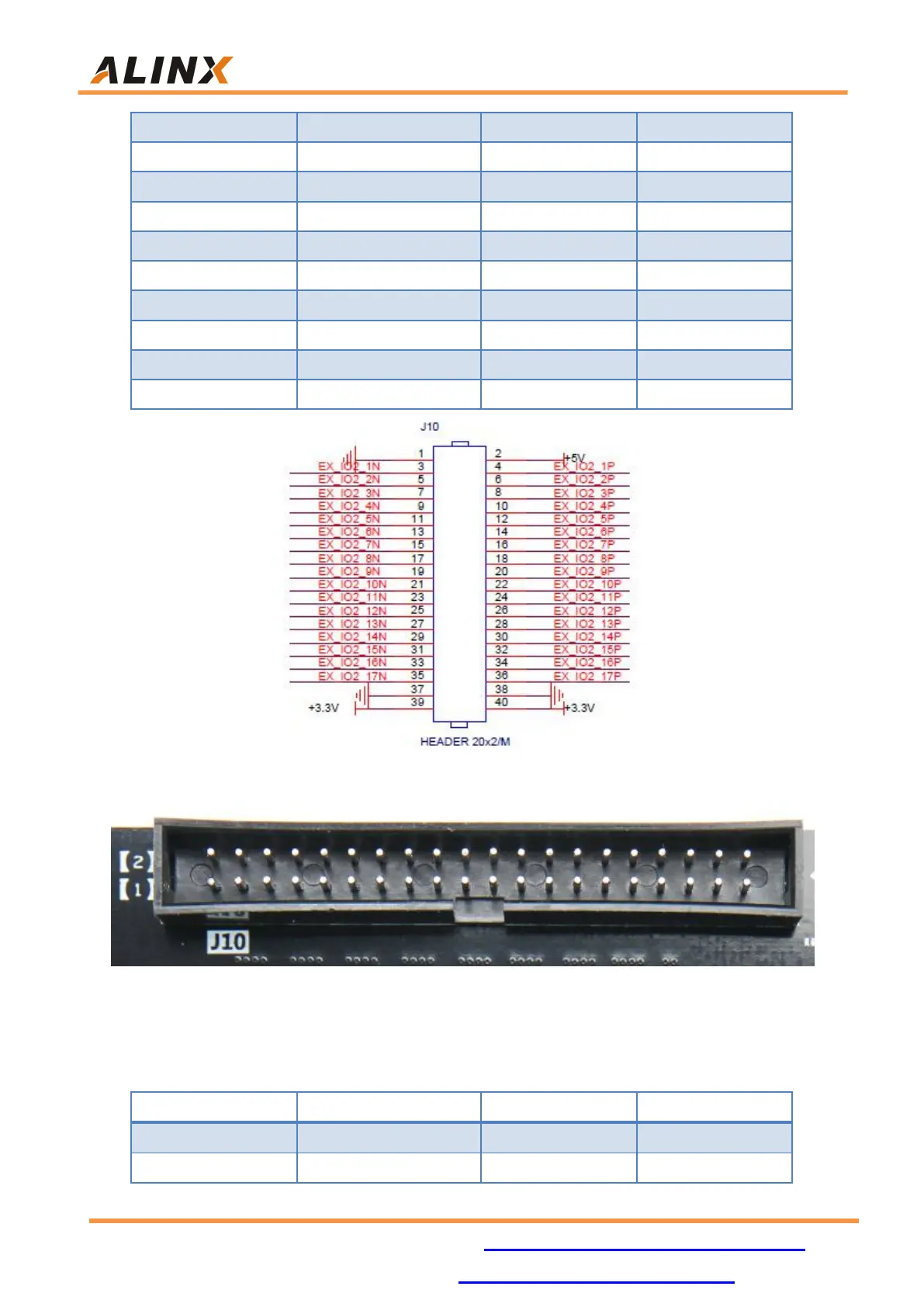

Figure 17-3: Expansion header J10 schematic
Figure 17-4: Expansion header J10on the FPGA Board
J10 Expansion Header Pin Assignment
J10 Pin Number
FPGA Pin
J10 Pin Number
FPGA Pin
1
GND
2
+5V
3
P17
4
N17
