ARTIX-7 FPGA Development Board AX7035 User Manual
38 / 42

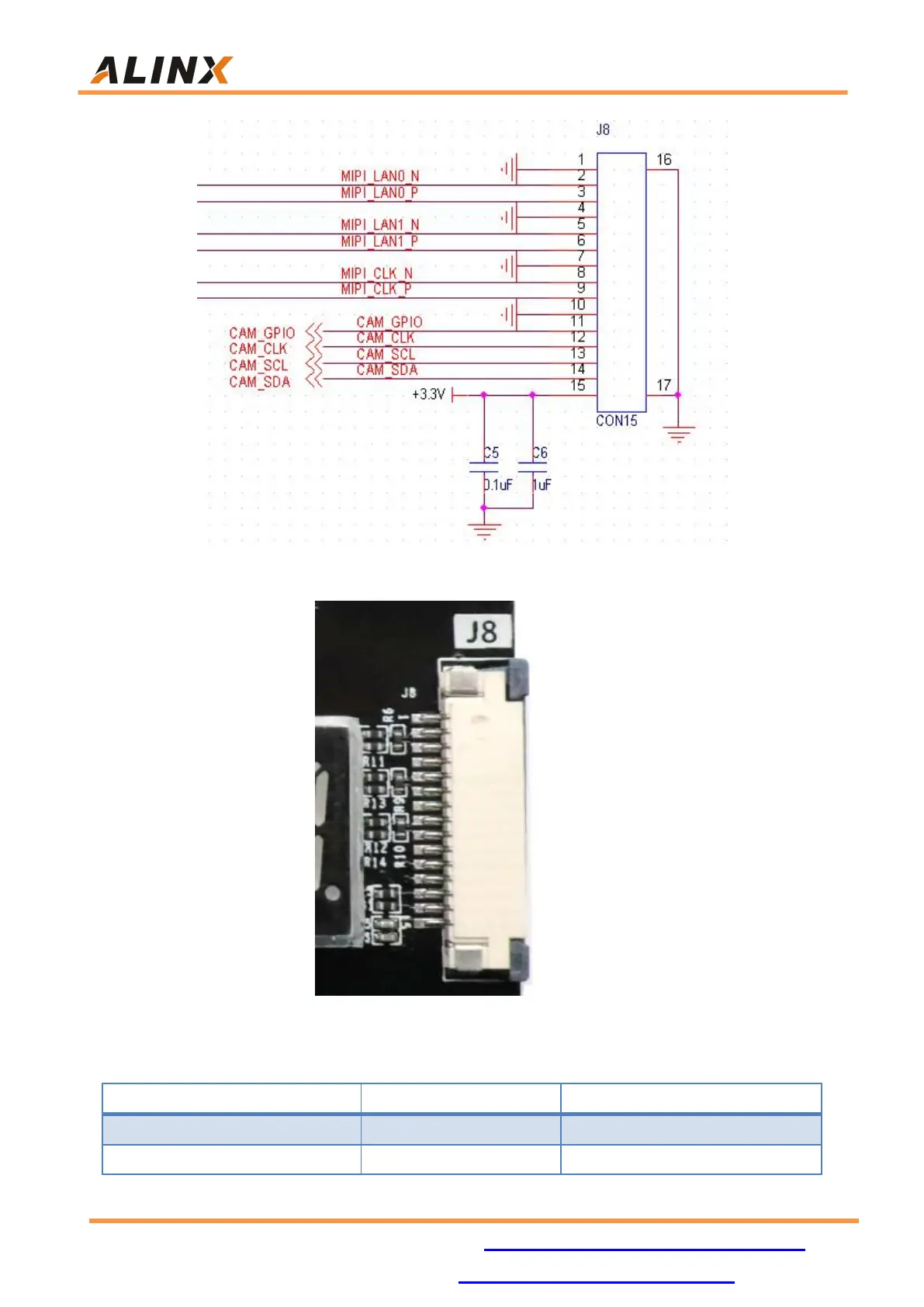

Figure18-1: FPC Expansion Ports Schematic
Figure18-2: FPC Expansion Ports on the FPGA Board
FPC Expansion Ports Pin Assignment
Pin Number
Signal network name
FPGA Pin
1
GND
-
2
MIPI_LAN0_N
D2
