Allen-Bradley 1336 FORCE User Manual

Chapter 2
Installation/Wiring
2–4

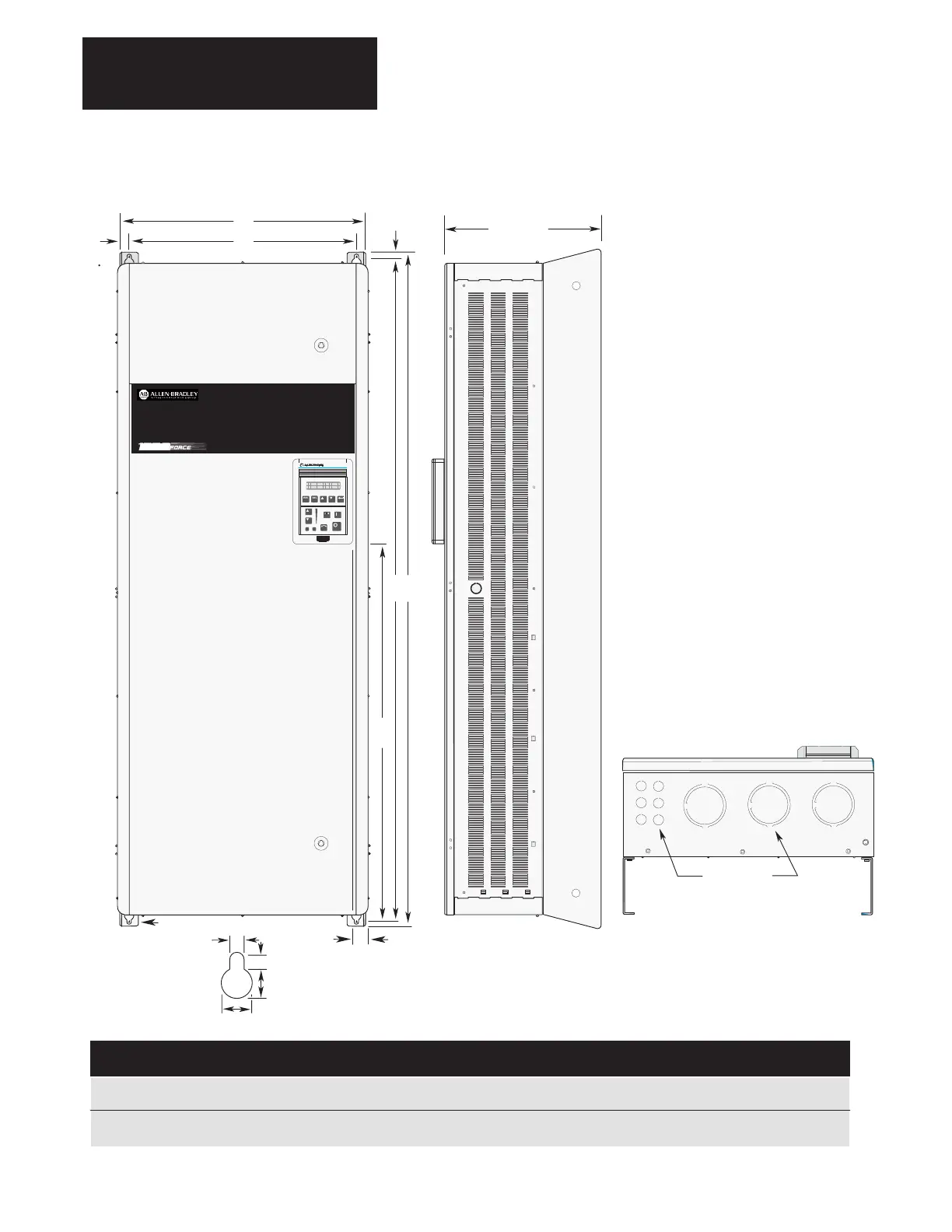

Figure 2.4.
IP 20 (NEMA Type 1) Dimensions – Frame E
7.0 (0.28)
7.0 (0.28)
12.7 (0.50)
12.7 (0.50)
Mounting Holes (4)
D
A
Y
EB
Z
BB
CC
C Max.
KNOCKOUTS
3–DUAL SIZE, 6–FIXED
All Dimensions in Millimeters and (Inches)
All Weights in Kilograms and (Pounds)
Knockouts
3–Dual Size, 6–Fixed
88.9/101.6, 12.7
(3.50/4.00, 0.50)
Shipping
Weight
186 kg
(410 lbs.)
163 kg
(360 lbs.)
CC
151.9
(5.98)
126.3
(4.97)
Frame
1
Reference
E–Enclosed
E–Open
A
511.0
(20.12)
511.0
(20.12)
B
1498.6
(59.00)
1498.6
(59.00)
C Max.
424.4
(16.71)
372.6
(14.67)
D
477.5
(18.80)
477.5
(18.80)
E
1447.8
(57.00)
1447.8
(57.00)
Y
16.8
(0.66)
16.8
(0.66)
Z
40.1
(1.61)
40.1
(1.61)
AA
195.0
(7.68)
138.4
(5.45)
BB
901.4
(35.49)
680.0
(26.77)
