Allen-Bradley 1336 PLUS Troubleshoot Manual

1–9Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.2 – March 1998
Description
When the drive-mounted HIM is supplied, it will be connected as
SCANport Adapter 1 (refer to Figure 1.6) and visible from the front
of the drive. The HIM can be divided into two sections: Display
Panel and Control Panel. The Display Panel provides a means of
programming the drive and viewing the various operating
parameters. The Control Panel allows different drive functions to be
controlled. Refer to the 1336 IMPACT User Manual for HIM
operation.
Important: The operation of HIM functions depends upon drive
parameter settings. Default parameter values allow full
HIM functionality.

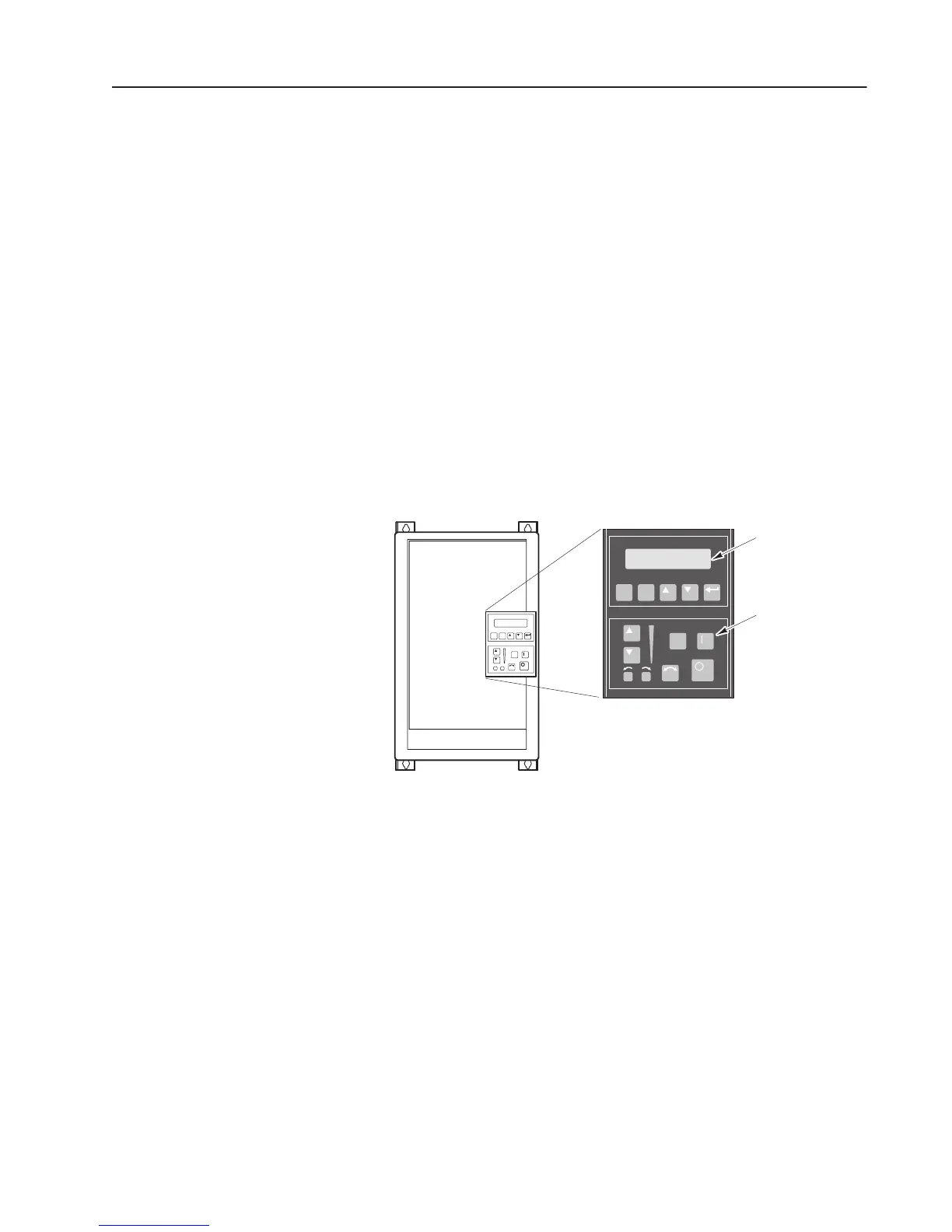

Figure 1.5
Human Interface Module
Display Panel
Control Panel
JOG
ESC SEL
Human Interface Module
(HIM)
AB0268B
JOG
ESC SEL
Human Interface Module
(HIM)

Allen-Bradley 1336 PLUS Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Frequency	0-400 Hz
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Enclosure	NEMA 1
Output Current	Varies by model
Power Rating	Varies by model
Communication	RS-485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Storage Temperature	-40 to 70°C (-40 to 158°F)
Humidity	5 to 95% non-condensing
Control Method	Sensorless Vector
