Allen-Bradley 1336 PLUS Troubleshoot Manual

1–13Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.2 – March 1998

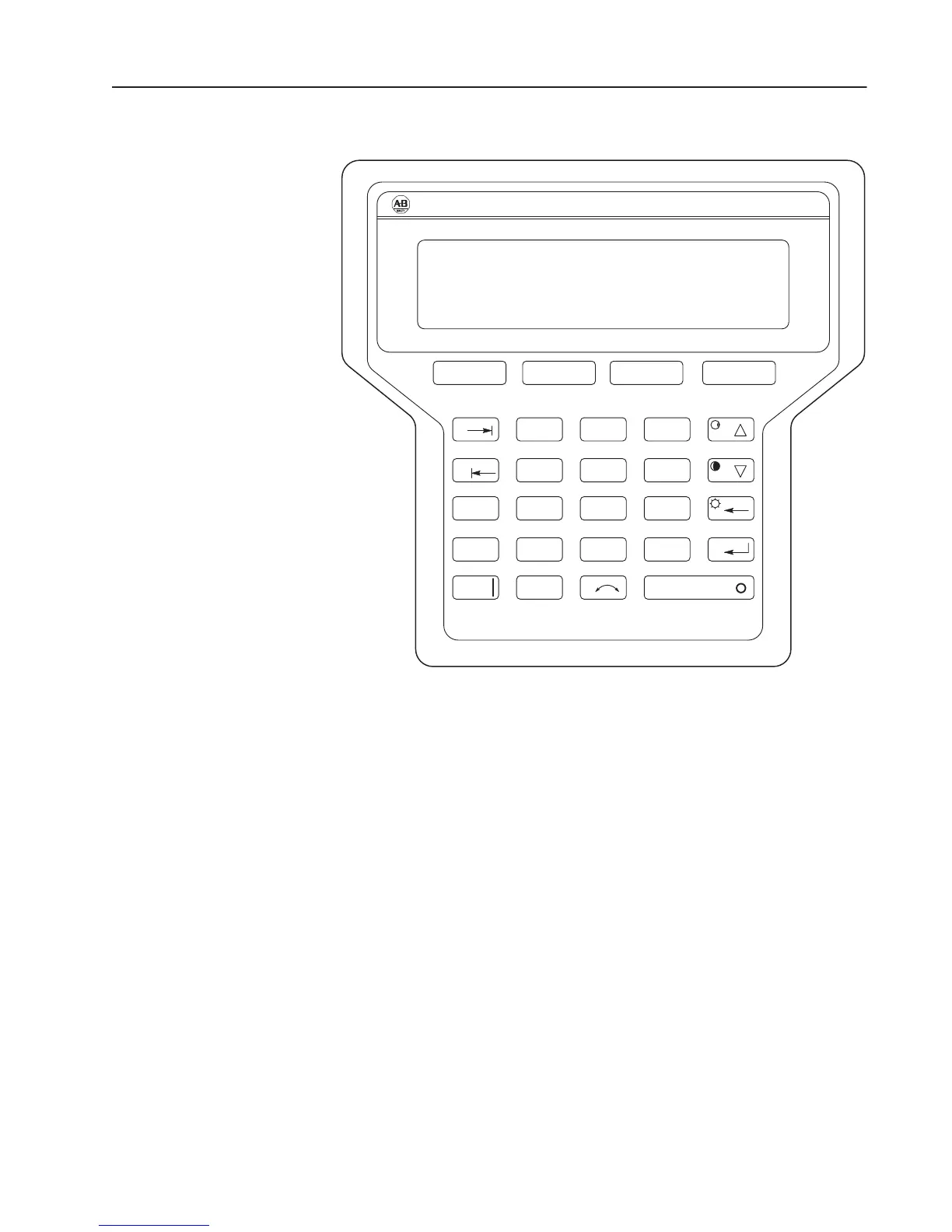

Figure 1.8
Graphic Programming Terminal
AB0554A
F1 F2 F3 F4
78 9
456
12 3
.
0+/–
+
DEF
ALT PRESET 4 PRESET 5 XREF 1
PRESET 1 PRESET 2 PRESET 3
ESC
–
JOG
DriveTools software is a Windows 3.1 compatible family of
application programs allowing the user to perform programming,
monitoring, and diagnostic operations on Rockwell Automation AC
and DC digital drive products. The software consists of five
Windows applications. For operation, refer to the Product Data
DriveTools Software manual.
All control functions in the 1336 IMPACT drive are performed
through the use of parameters that can be changed with a
programming terminal or DriveTools. Refer to an overview Block
Diagram of the Control Firmware Function in the 1336 IMPACT
User Manual.
Feedback information is derived from hardware devices as part of
the process equipment used. Analog signals are converted to digital
signals for use by the drive. Control signals may be provided to the
drive by the Main Control Board.
DriveTools
Control Firmware Function

Allen-Bradley 1336 PLUS Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Frequency	0-400 Hz
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Enclosure	NEMA 1
Output Current	Varies by model
Power Rating	Varies by model
Communication	RS-485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Storage Temperature	-40 to 70°C (-40 to 158°F)
Humidity	5 to 95% non-condensing
Control Method	Sensorless Vector
