Allen-Bradley 1336 PLUS Troubleshoot Manual

1–10 Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.2 – March 1998

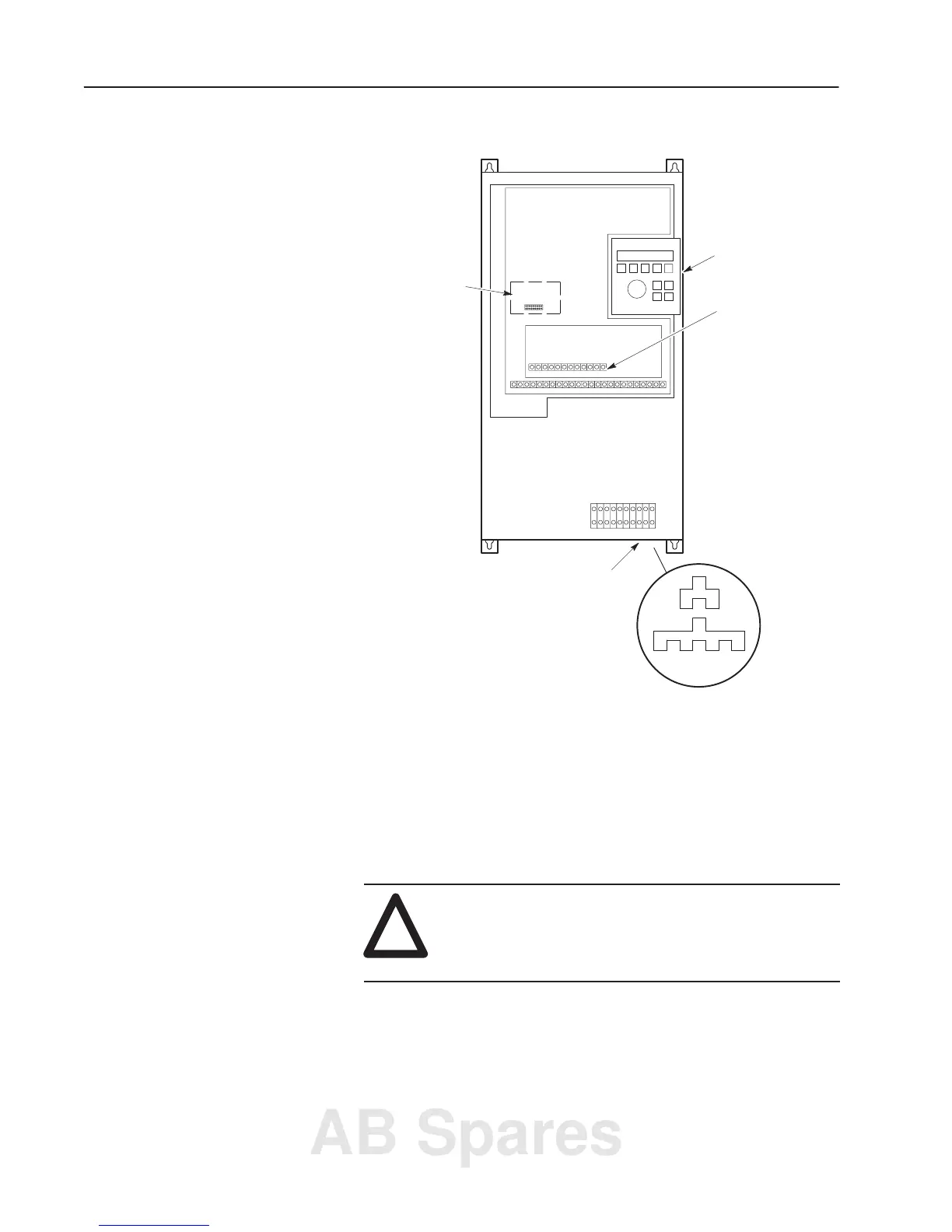

Figure 1.6
Adapter Locations
AB0337B
Internal
Communication
(Adapter 6)
Drive Mounted
HIM (Adapter 1)
L Option
(TB3 Adapter 0)
23
342 5
Expansion Options
Communications Port Remote HIM/
Communication Options (Adapter 2) or
Expansion Options (Adapters 2, 3, 4, 5)
Removing the HIM
For handheld operation, you can remove the module and place it up
to 10 meters (33 feet) from the 1336 IMPACT drive. (You do need a
cable to do this.)
!
ATTENTION: Some voltages present behind the
drive front cover are at incoming line potential. To
avoid an electrical shock hazard, use extreme caution
when removing/replacing the HIM.
AB Spares

Allen-Bradley 1336 PLUS Specifications

General

Input Voltage	200-240VAC, 380-480VAC, 500-600VAC
Output Frequency	0-400 Hz
Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Enclosure	NEMA 1
Output Current	Varies by model
Power Rating	Varies by model
Communication	RS-485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Storage Temperature	-40 to 70°C (-40 to 158°F)
Humidity	5 to 95% non-condensing
Control Method	Sensorless Vector
