2–14 Troubleshooting and Error Codes
Publication 1336 IMPACT-6.2 – March 1998
The following charts list drive symptoms, symptom descriptions, and
recommended actions.

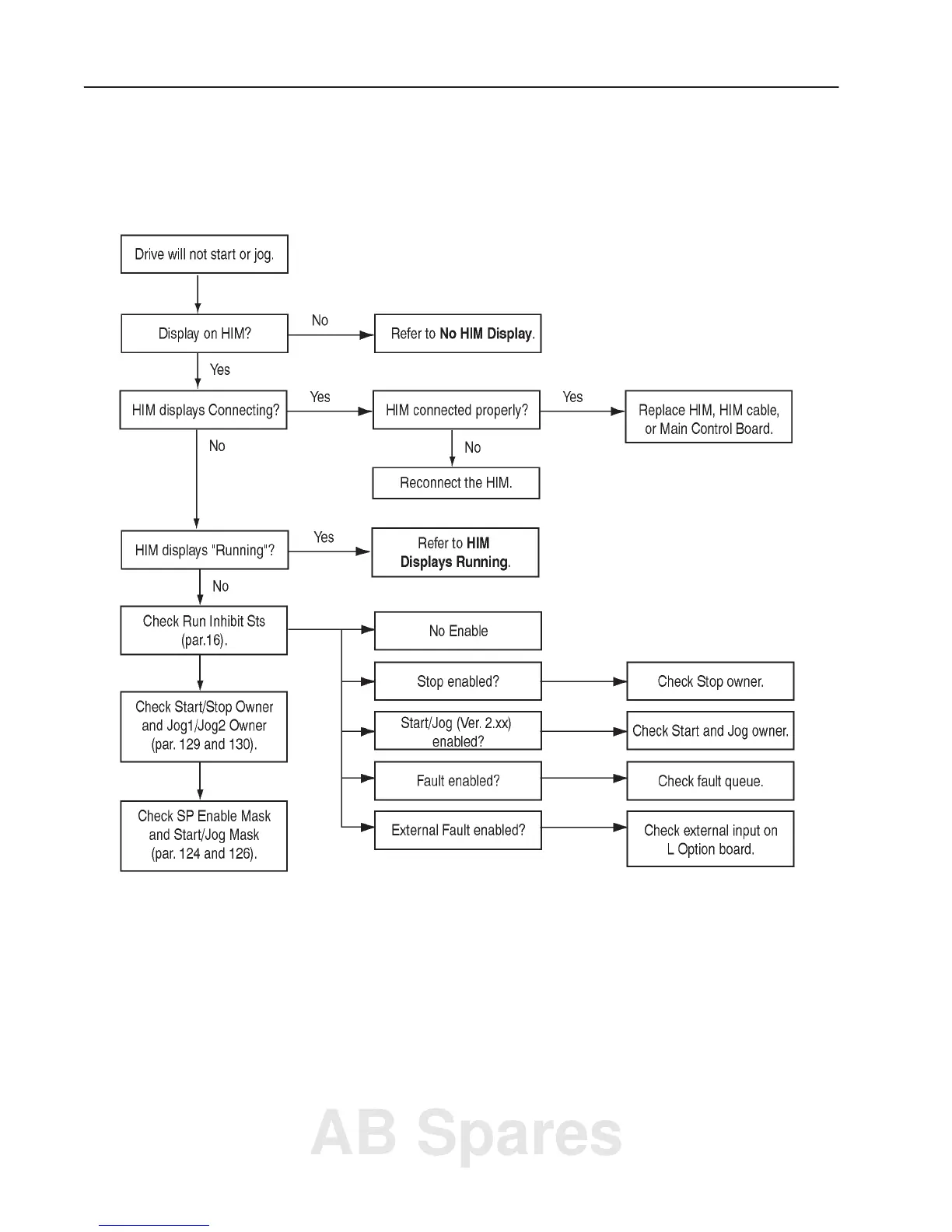

Figure 2.4
Drive Will Not Start or Jog
Diagnostic Procedures by
Symptom
