176 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018
Chapter 4 Measurement Definition
Configuring Complementary Differential Expansion Measurements
Complementary Differential Expansion requires that two static
channels, in pairs, be used. These pairs are either Channels 0/1 or
Channels 2/3, with the short side probe input to the first channel of the
pair.
The Complementary Differential Expansion measurement requires
edits to pages in Module Definition and, in normal Module
Configuration, the HW Configuration, and the DC page for each
channel of the pair.
Module Definition - Define Module Definition

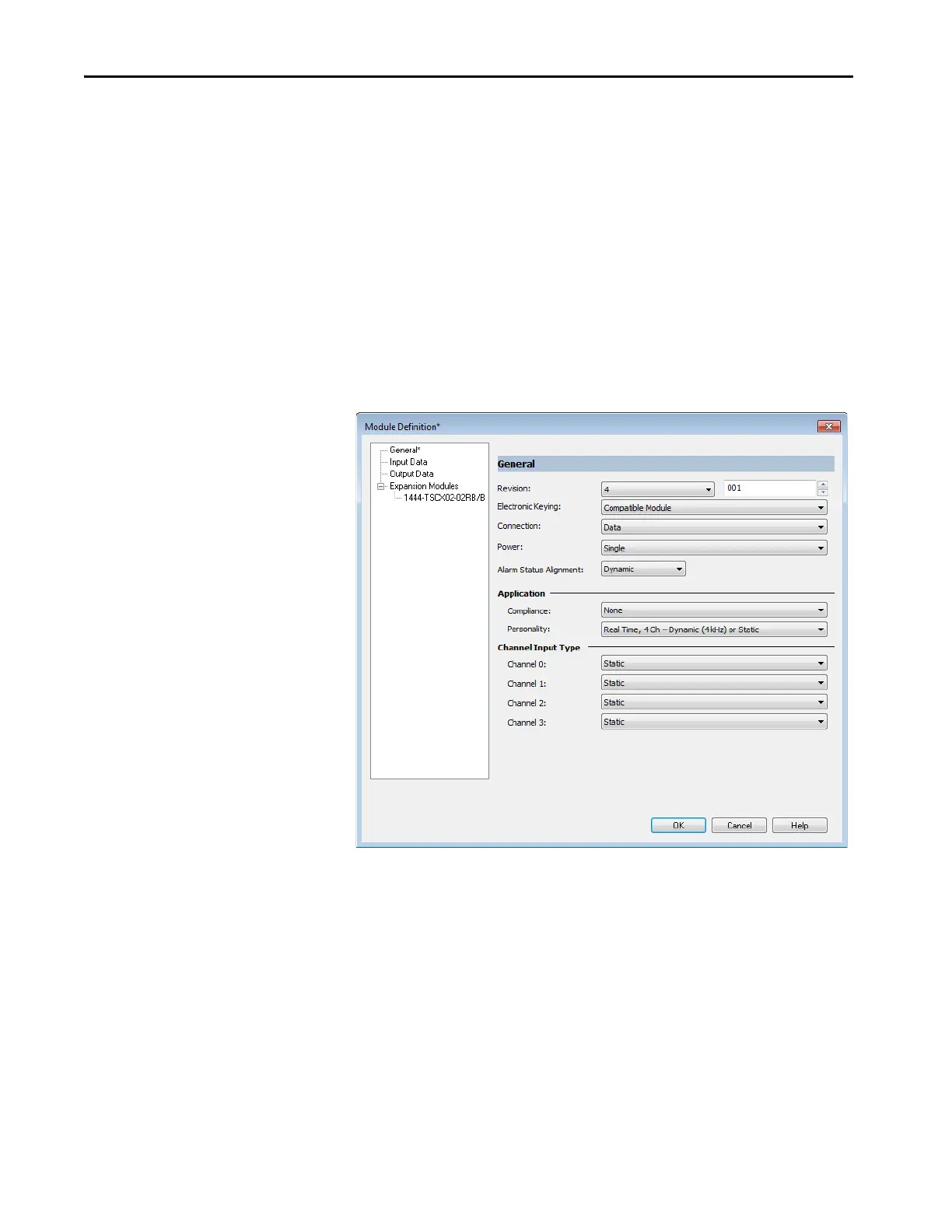

Figure 69 - Module Definition
In Module Definition on the Define Module Functionality, set the Personality
to either of the Real Time 4 kHz selections.
