Measurement Definition Chapter 4
Module Definition - Define Module Definition

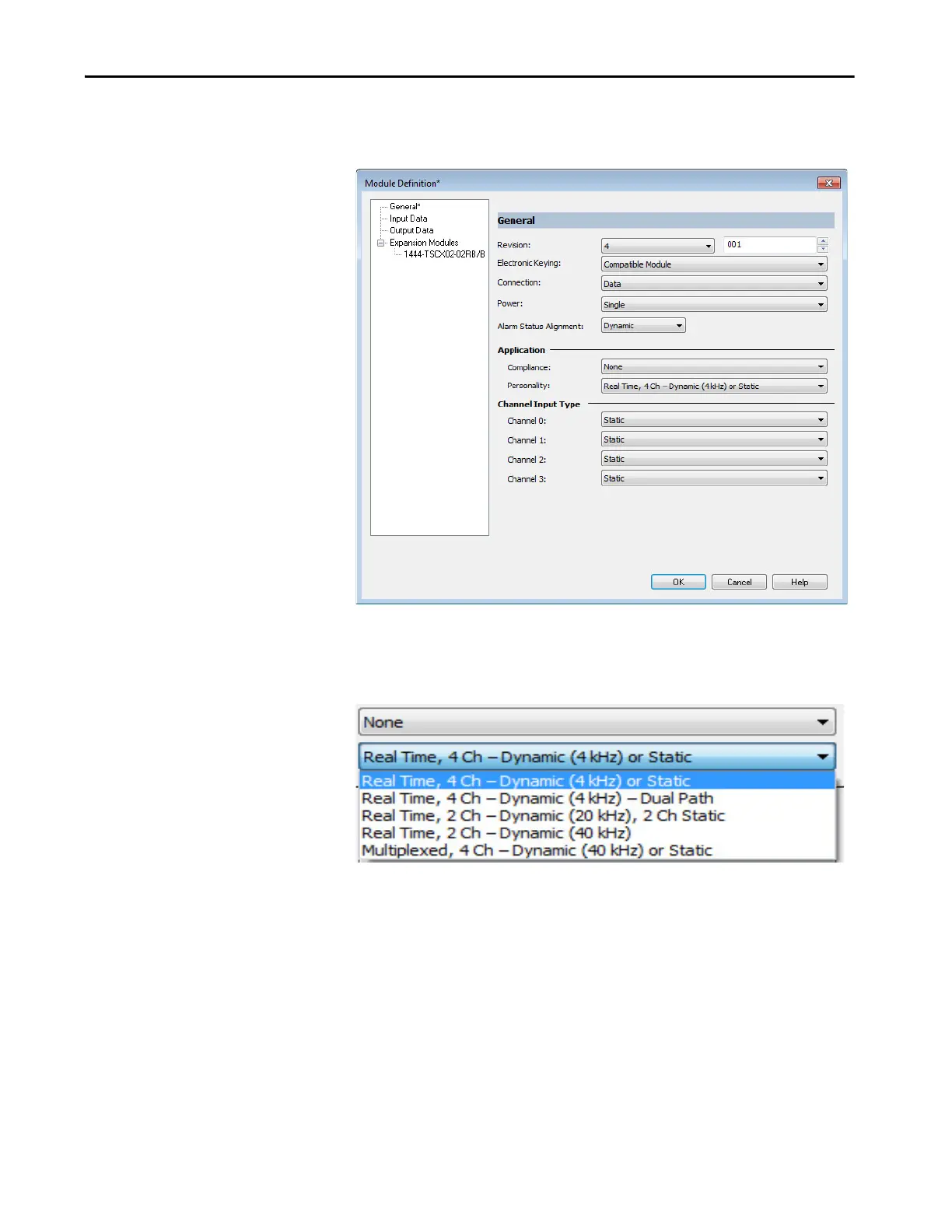

Figure 77 - Define Module Functionality
In Module Definition on the Define Module Functionality, set the Personality
to either of the Real Time 4 kHz selections.
Figure 78 - Real Time Selections
And for each channel of the pair to be used for the measurement, select “Static”
for the Channel type.
