Chapter 10 Operate the Module

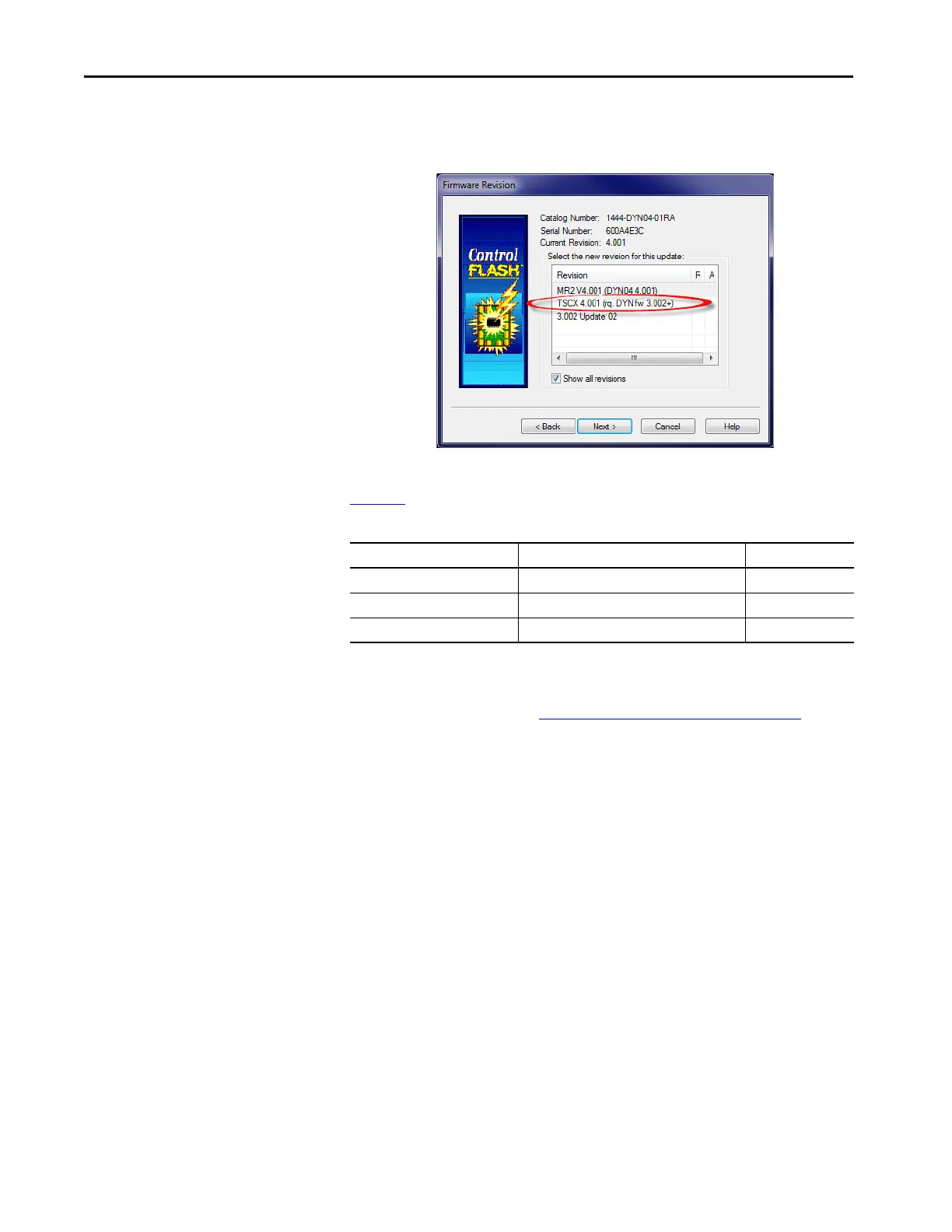

This example indicates that the update contains firmware revision 4.001 for
the Tachometer Signal Conditioner Expansion Module. To install, it requires
that the DYN module is at firmware v3.002 or greater.
Tachometer Signal Condition Expansion Module is abbreviated as “TSCX”.
Tab le 49
shows the abbreviations for each of the expansion modules.
Updating expansion module firmware is done using ControlFLASH to
“update” the firmware of the host module of the expansion module with the
procedure that is provided in Updating Module Firmware
on page 246.
However, the expansion module firmware update package excludes new
firmware for the host module. Host module firmware is updated
independently and must be updated before updating any connected expansion
modules.
Table 49 - Expansion Module Abbreviations
Expansion Module Description Abbreviation
1444 -TSCX02-024B Tachometer Signal Conditioner Expansion Module TSCX
1444-RELX00-04RB Relay Expansion Module RELX
1444-AOFX00-04RB 4…20 mA Expansion Module AOFX
