Rockwell Automation Publication 1444-UM001D-EN-P - June 2018 95
Configure the 1444 Dynamic Measurement Module Chapter 3
Select the series of the hardware installed. Relay and analog output modules are
available only in series A. The tachometer signal conditioner module is at series
B. The series B tachometer signal conditioner module enables auto trigger
(auto threshold) level detection. See Configure the Tachometer Expansion
Module on page 193.
The module series designation is on the underside of the module as shown in

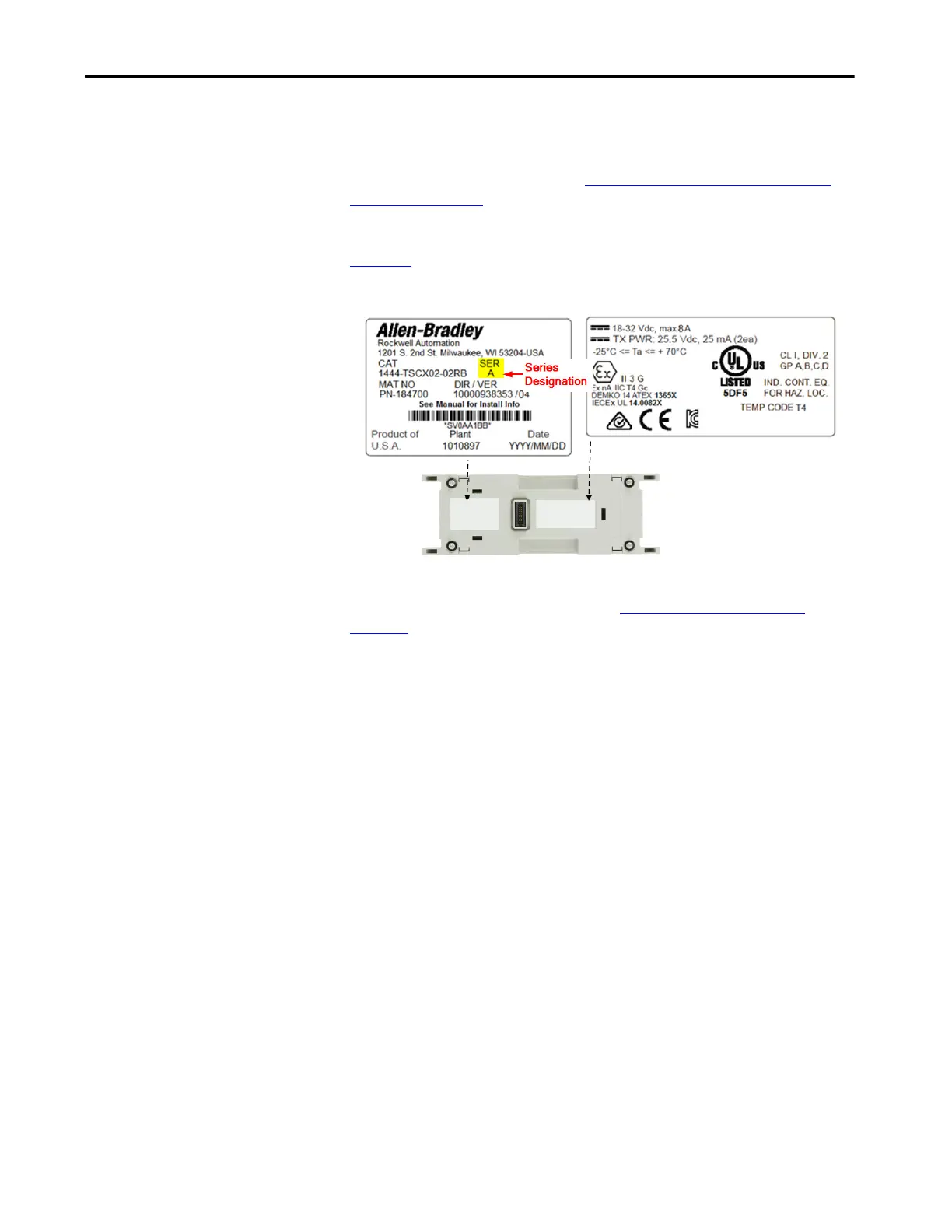

Figure 42
.
Figure 42 - Series Designation
Use the Address pull-down menu to select an address (0, 1, 2) for a connected
relay module (1444-RELX00-04RB). See Relay Expansion Module
on
page 203:
• Configuration of expansion modules is included in the configuration of
the host module of the expansion module.
• Addresses are set automatically for connected Tachometer Signal
Conditioner (1444-TSCX02-02RB) and 4…20 mA analog (1444-
AOFX00-04RB) expansion modules.
