Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
200 Configure POINT I/O Modules in RSLogix 5000 Software

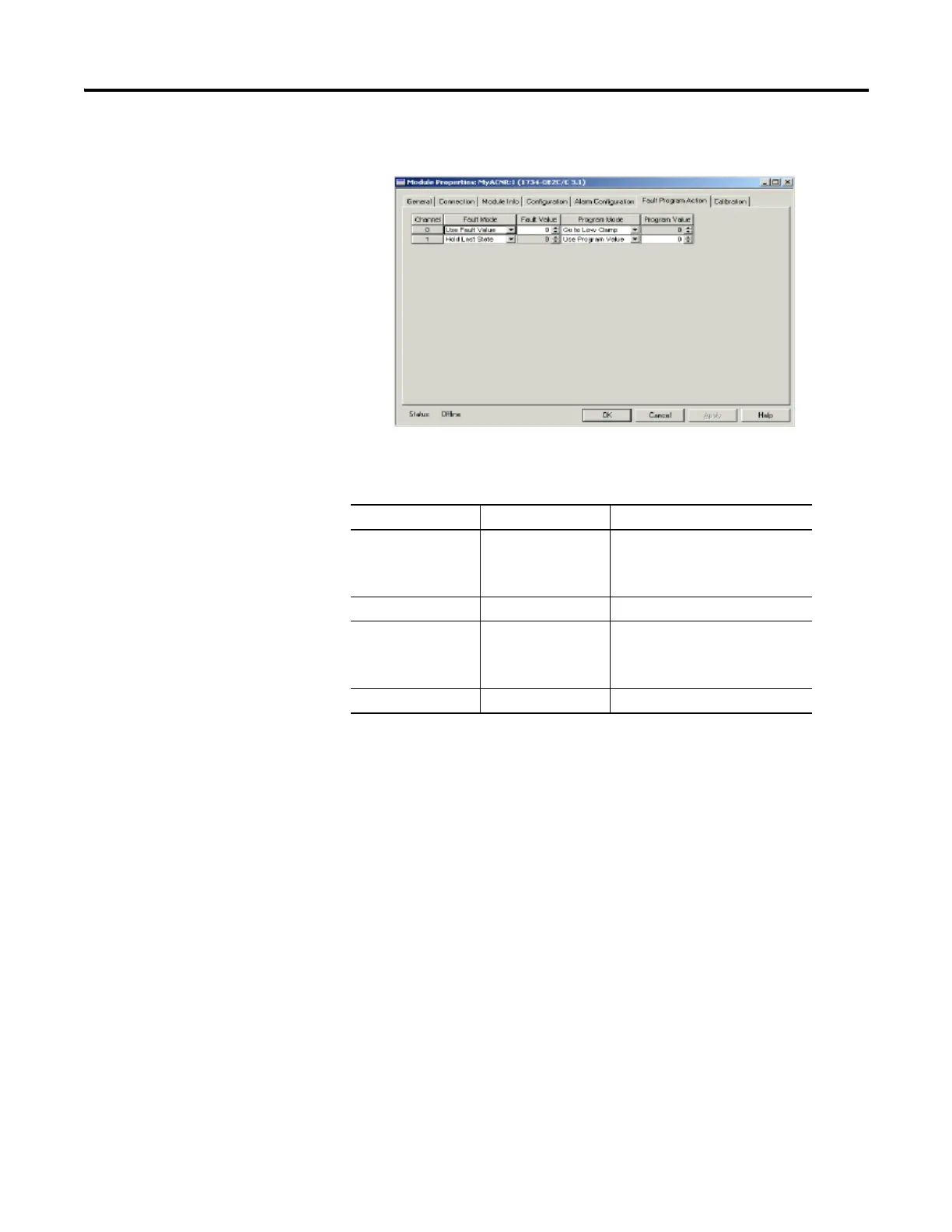

You see a Fault/Program Action dialog.
2. From the Fault/Program Action dialog, complete items, referring to the
table.
3. From the bottom of the dialog, perform one of the following:
• Click another tab at the top of the dialog.
or
• Click OK to save changes and close the dialog.
or
• Click Cancel to return to default values.
or
• Click Apply to save changes you made on any of the dialogs and
continue to display the dialog, noting that you enable the Apply button
when you make changes to any of the dialogs
Work with the Calibration Dialog
To complete entries on this dialog, proceed as follows. Perform calibration in
Hard Run or Remote mode. For information about the tools and steps for
calibration, refer to the Calibrating Your Analog Module section of this manual.
1. From the General dialog, click Calibration.
For This Value Select Comments
Fault Mode Hold Last State
Go to Low Clamp
Go to High Clamp
Use Program Value
Default is Go to Low Clamp.
Fault Value -32768…32767 Default is 0.
Program Mode Hold Last State
Go to Low Clamp
Go to High Clamp
Use Program Value
Default is Go to Low Clamp.
Program Value -32768…32767 Default is 0.
