Rockwell Automation Publication 1788-UM059B-EN-P - September 2015 47
Configure the Linking Device Chapter 4

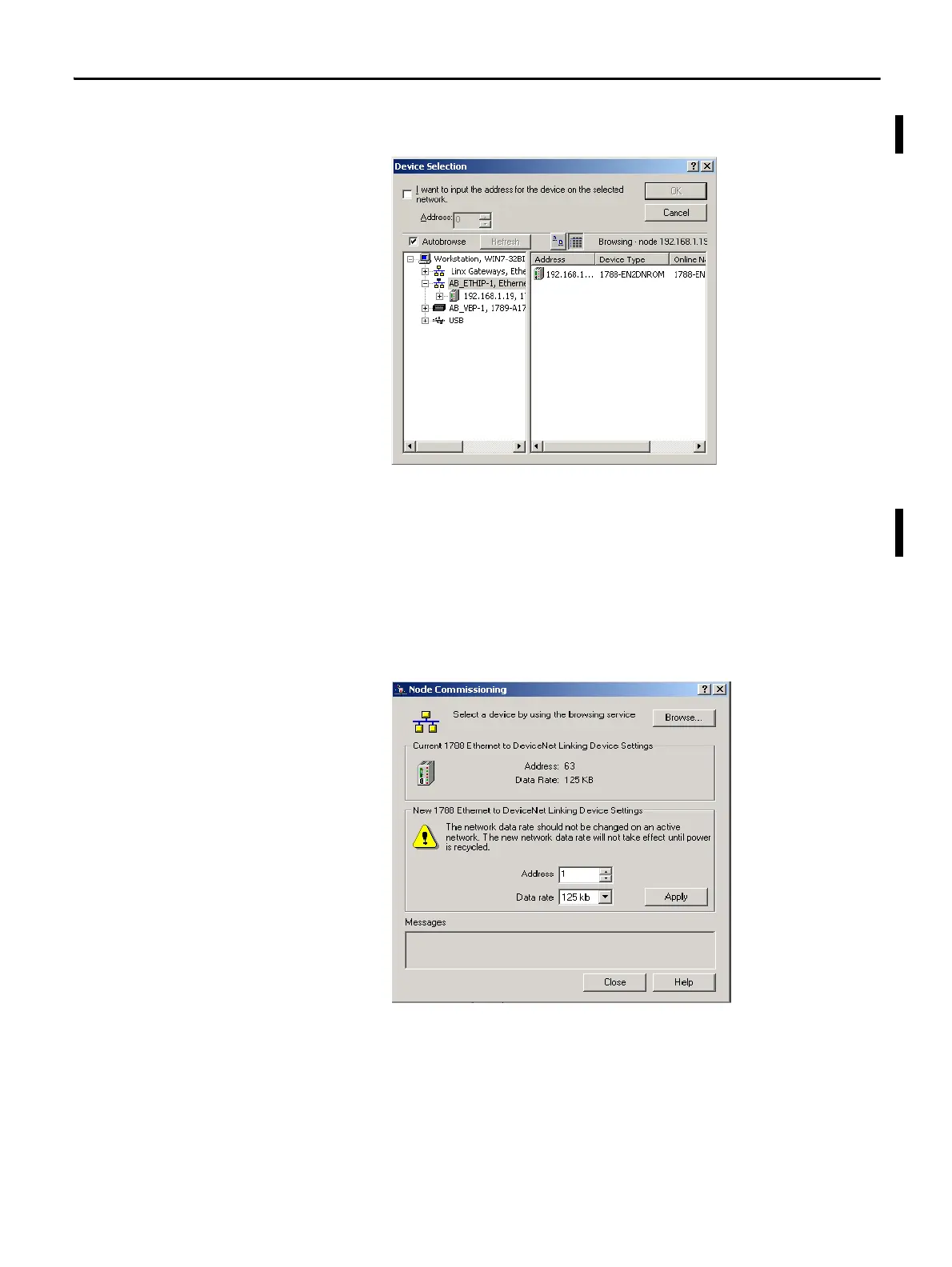

4. In the left pane of the dialog box, click the + next to the IP address for the
linking device.
5. In the left pane, click the + next to the DeviceNet network.
You see the linking device in the left pane.
6. Click the linking device in the left pane.
The linking device appears in the right pane.
7. Click OK.
8. If a warning text box appears, asking you if you wish to continue, click Yes.
9. Enter the desired node address or baud rate, then click Apply.
