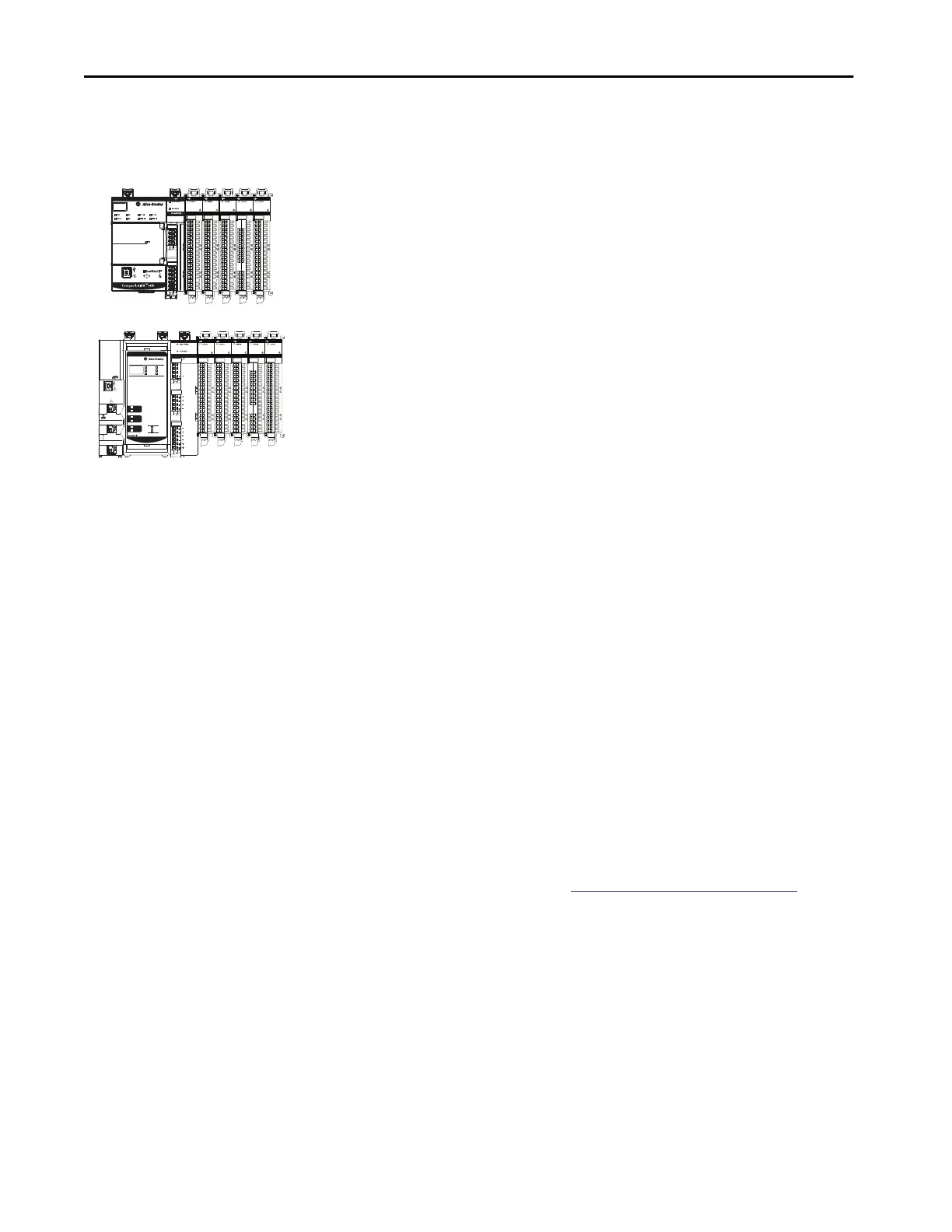

Allen-Bradley 5069-OBV8S User Manual

124 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Chapter 4 Output Module Features
Connection Fault Handling
You can configure Compact 5000 I/O standard module behavior when a
connection fault occurs, that is, the connection between the owner-controller
and the output module breaks.
You must define the following:
• Immediate output behavior when the connection breaks.
• Length of time that the output behaves as defined.
• Output behavior if the connection remains broken when the length of
time that is defined previously expires.
Output Behavior Immediately After a Connection Fault
When the connection between an owner-controller and output module
breaks, the output can behave in the following ways, depending on how the
Fault Mode parameter is configured:
• Turn off - Default
• Transition to a specific, user-defined value.
• Hold its last state.
If you configure the output to hold its last state, the output remains at
that state value until the following occurs:
– The connection to the owner-controller is re-established.
– The output returns to normal operation, as defined in the module
configuration.
The output state remains as commanded if Fault State Duration is set to
Forever.
If the Fault State Duration is set to a value other than Forever, the output state
changes to a user-configurable Final Fault State after the specified time period
elapses. For more information, see
Final Fault State Value on page 125.
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
