176 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Chapter 6 Configure a Standard Module
Edit 5069-IB6F-3W Module
Configuration Categories
In addition to the General, Connection, and Module Info categories, the
following categories are available when you configure a 5069-IB6F-3W
module:
•
Points Category
•
Counters Category
•
Events Category
•
Time Sync Category
Counters Category
The Counters category is available only if you choose a value for Counters in
the Module Definition dialog box.
The Counters category for the 5069-IB6F-3W module functions the same as it
does for the other Compact 5000 I/O standard input modules. The only
difference is that the 5069-IB6F-3W module offers no more than four
counters.

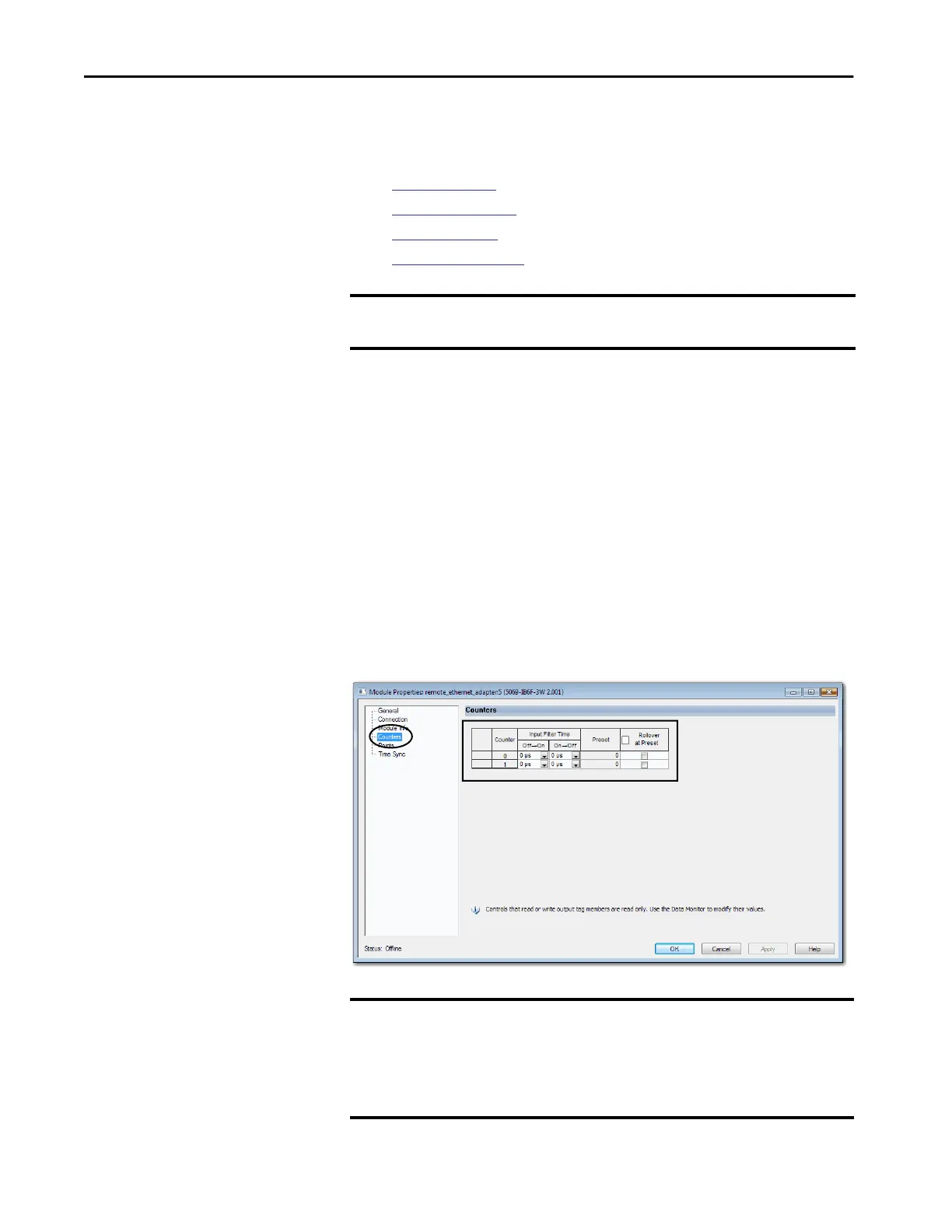

The Counters category shows the configuration options available for each
counter. You can also configure the counter Preset value and enable Rollover at
Preset.
IMPORTANT If you use the Listen Only connection type, the Points Category, Counters
Category, Events Category, and Time Sync Category do not appear.
IMPORTANT The total number of Counters subtracts from the available number of Points.
For example, if you configure a 5069-IB6F-3W module to use two counters,
the number of points available on the module is four. That is, points 2…5.
The maximum number of counters that can be configured is four channels.
That is, counter 0…3.
