204 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019

Chapter 7 Configure and Replace Safety Modules

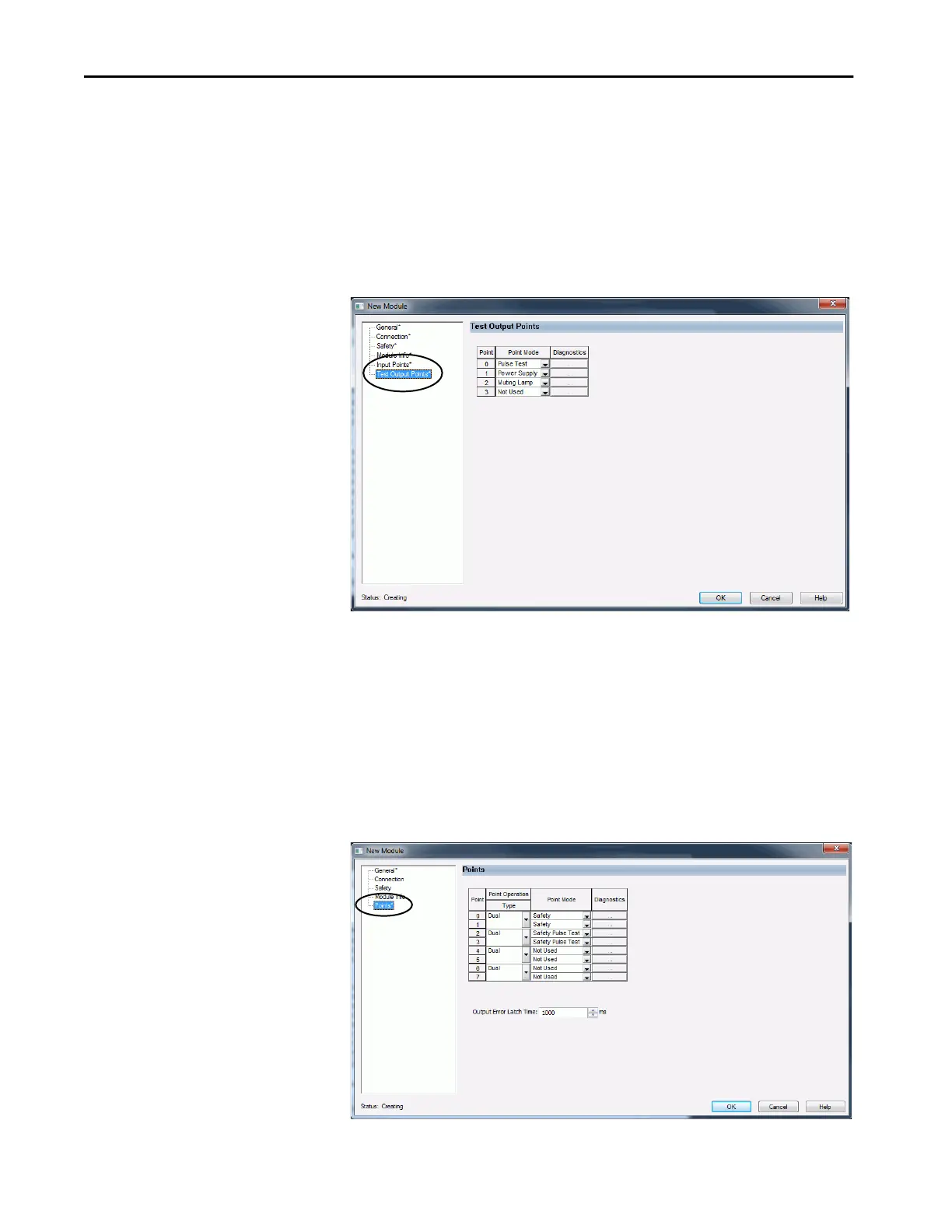

Test Output Points Category

The Test Output Points category is only available if you choose This

Controller for the Configured By parameter on the Module Definition

dialog box.

You must configure each point to use it in a Safety application. The outputs are

disabled by default.

Edit the 5069-OBV8S and

5069-OBV8SK Module

Points Category

The 5069-OBV8S and 5069-OBV8SK modules use the Points category.

The Points category is only available if you choose This Controller for the

Configured By parameter on the Module Definition dialog box.

You must configure each point to use it in a Safety application. The outputs are

disabled by default.
