192 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019
Chapter 7 Configure and Replace Safety Modules
Before You Begin
You must complete the following tasks before you can configure the module:
1. Create a Logix Designer application project.
2. If you use the safety modules as remote I/O modules, add a
Compact 5000 I/O EtherNet/IPâ„¢ adapter to the project.
For more information on how to add a Compact 5000 I/O EtherNet/IP
adapter to a Logix Designer application project, see the Compact 5000
EtherNet/IP Adapters User Manual, publication
5069-UM007.
Once the project is created and, if necessary, the adapter is added, you can
create a module in the Logix Designer application project.
Create a New Module
Unlike Compact 5000 I/O standard modules, you cannot add a Compact
5000 I/O safety module to a Logix Designer application project while the
project is online. The project must be offline to add Compact 5000 I/O safety
modules to it.
You can create a new local or remote Compact 5000 I/O safety module. Local
I/O modules are installed in the same system as the Compact
GuardLogix® 5380 controllers. Remote I/O modules are installed in a system
that includes a Compact 5000 I/O EtherNet/IP adapter that connects to an
EtherNet/IP network.
New Local Safety Module
To create a new local Compact 5000 I/O safety module, complete the
following steps.

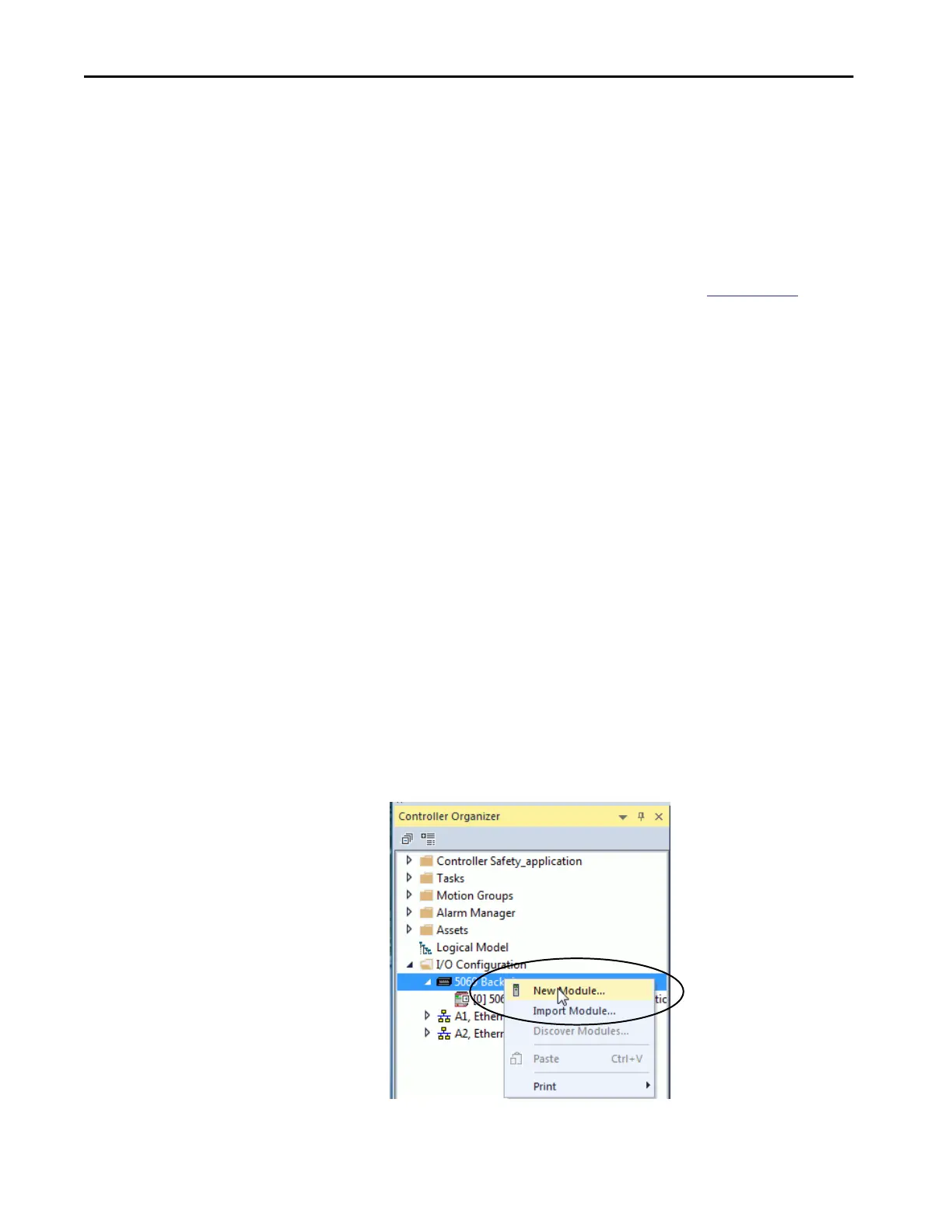

1. Right-click the 5069 Backplane and choose New Module.
