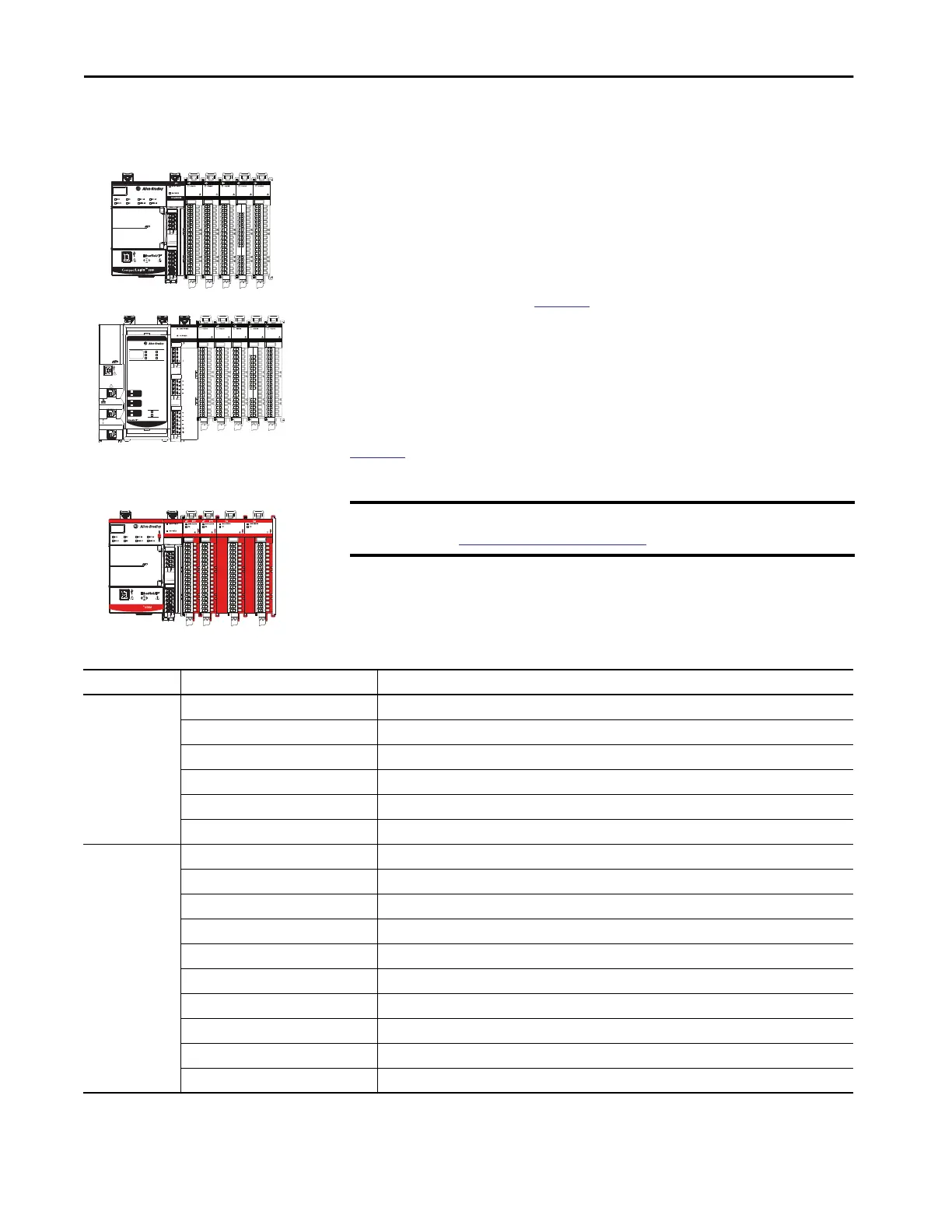

Chapter 3 Input Module Features
Fault and Status Reporting
The input modules multicast fault and status data with channel data to the
owner and listening controllers. The data is returned via module tags that you
can monitor in your Logix Designer application.
With some exceptions, the Compact 5000 I/O digital input modules provide
the fault and data status in a point-centric format. The tag names that include
Ptxx represent point-centric data in the table. The xx represents the point
number.
Not all tags that are listed in
Table 13 apply to all Compact 5000 I/O digital
input modules. For example, the 5069-IB16F module uses the
Eventx.PtxxData tag. The 5069-IB16 or 5069-IB16K modules do not use it.
Compact 5000 I/O Standard Input Modules
Table 13 lists tags that are used on Compact 5000 I/O standard
input modules.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
IMPORTANT For more information on the valid values for each tag, see Appendix B,
Module Tag Definitions on page 231.
Table 13 - Compact 5000 I/O Standard Input Module - Fault and Data Status
Data Type Tag Name
(1)
Triggering Event That Sets
Fault
ConnectionFaulted
(2)
The owner-controller loses its connection to the module.
Counterxx.Fault The counter data quality is bad.
Ptxx.Fault The point data quality is bad.
Eventx.CounterxxFault The corresponding counter had a fault that indicated when the event occurred.
Eventx.Fault The signal connection is lost.
Eventx.Ptxx.Fault The event data quality is bad.
Status
RunMode The module is in Run Mode.
DiagnosticActive Indicates if any diagnostics are active or if the prognostics threshold is reached.
DiagnosticSequenceCount The count increments each time that a diagnostic condition is detected or removed.
Counterxx.Data The point input status is 0 or 1.
Counterxx.Uncertain The counter data can be imperfect.
Eventx.PtxxData The point input status is 0 or 1.
Eventx.Uncertain The event data can be imperfect.
Ptxx.Data The point input status is 0 or 1.
Ptxx.Uncertain The point data can be imperfect.
Uncertain
(2)
The module is operating outside its designed operating range if data is under manual or override control.
(1) Not all tag names apply to all Compact 5000 I/O standard input modules. For example, only modules that support the Events feature use the Event tags but modules.
(2) This tag provides module-wide data and affects all channels simultaneously.
