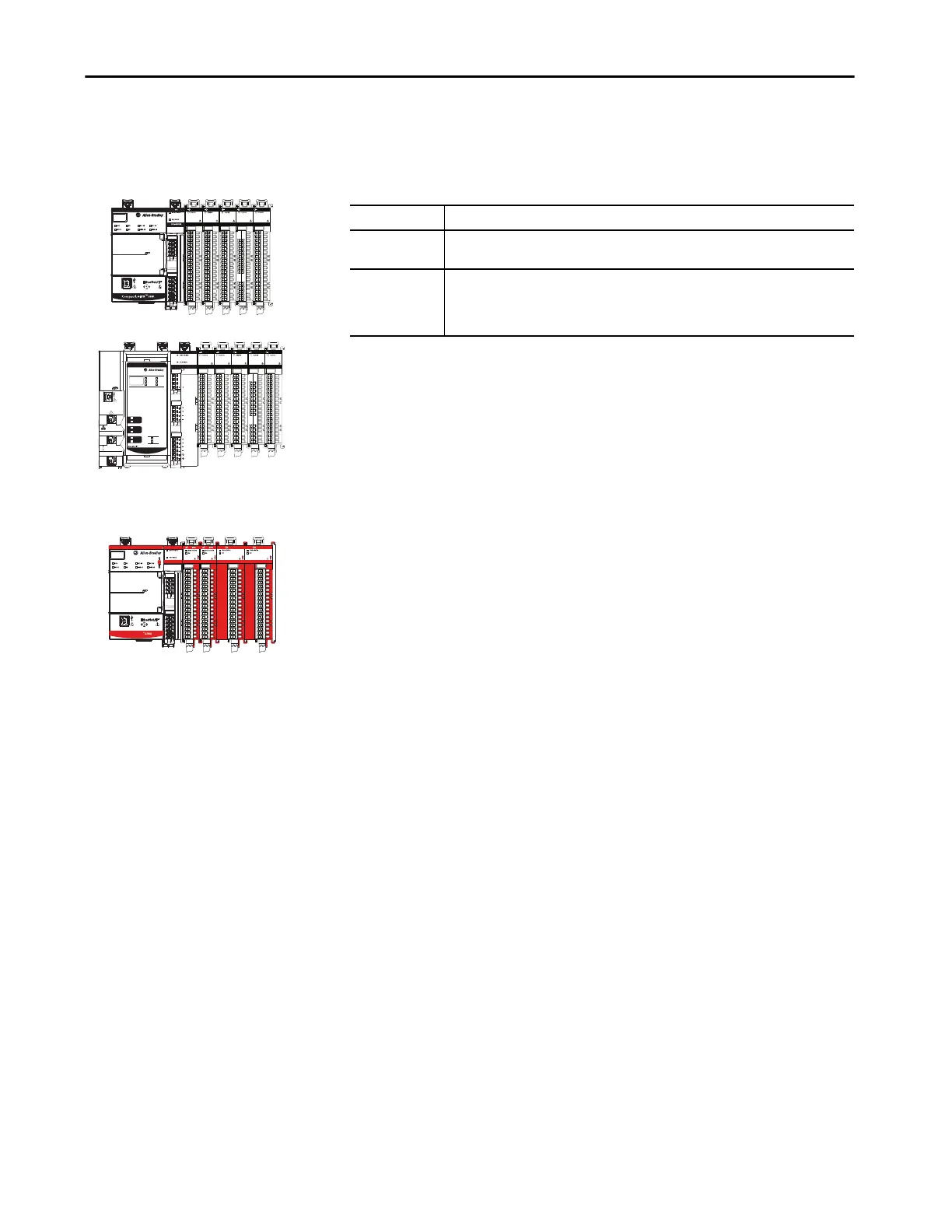

Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 83
Input Module Features Chapter 3
Data Transfer at RPI or
Change of State
Compact 5000 I/O digital input modules always send data at the RPI, but they
send data at a change of state only if the COS feature is enabled.
The table describes the two ways a module sends data to the owner-controller.
You set the RPI on the Connection page of the Module Properties dialog box
in the Logix Designer application.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Method Description
RPI A user-defined rate at which the module updates the information that is sent to its
owner-controller.
COS Configurable feature that, when enabled, instructs the module to update its owner-controller
with new data whenever a specified input point transitions from On to Off and Off to On. The
data is sent at the RPI rate when there is no change of state. By default, this setting is always
enabled for input modules.
