Chapter 2 Features Common to Compact 5000 I/O Digital Modules
Producer/Consumer
Communication

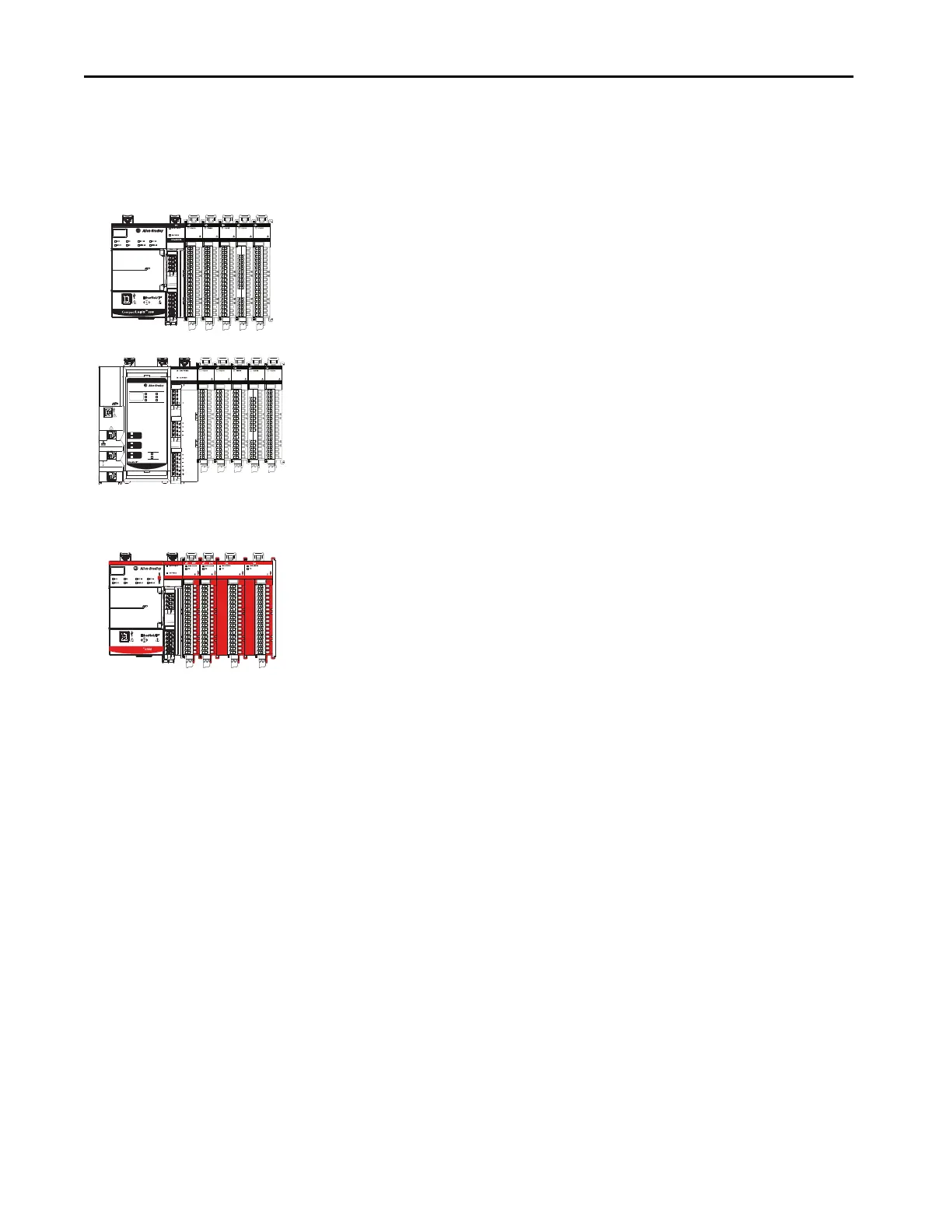

Compact 5000 I/O digital modules use the Producer/Consumer
communication model to produce data without a controller polling them first.
The modules produce the data and controllers consume it. That is, the owner-
controller and controllers with a Listen Only connection to the module can
consume it.
When an input module produces data, the controllers can consume the data
simultaneously. Simultaneous data consumption minimizes the need for one
controller to send the data to other controllers.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
