Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 155

Configure a Standard Module Chapter 6

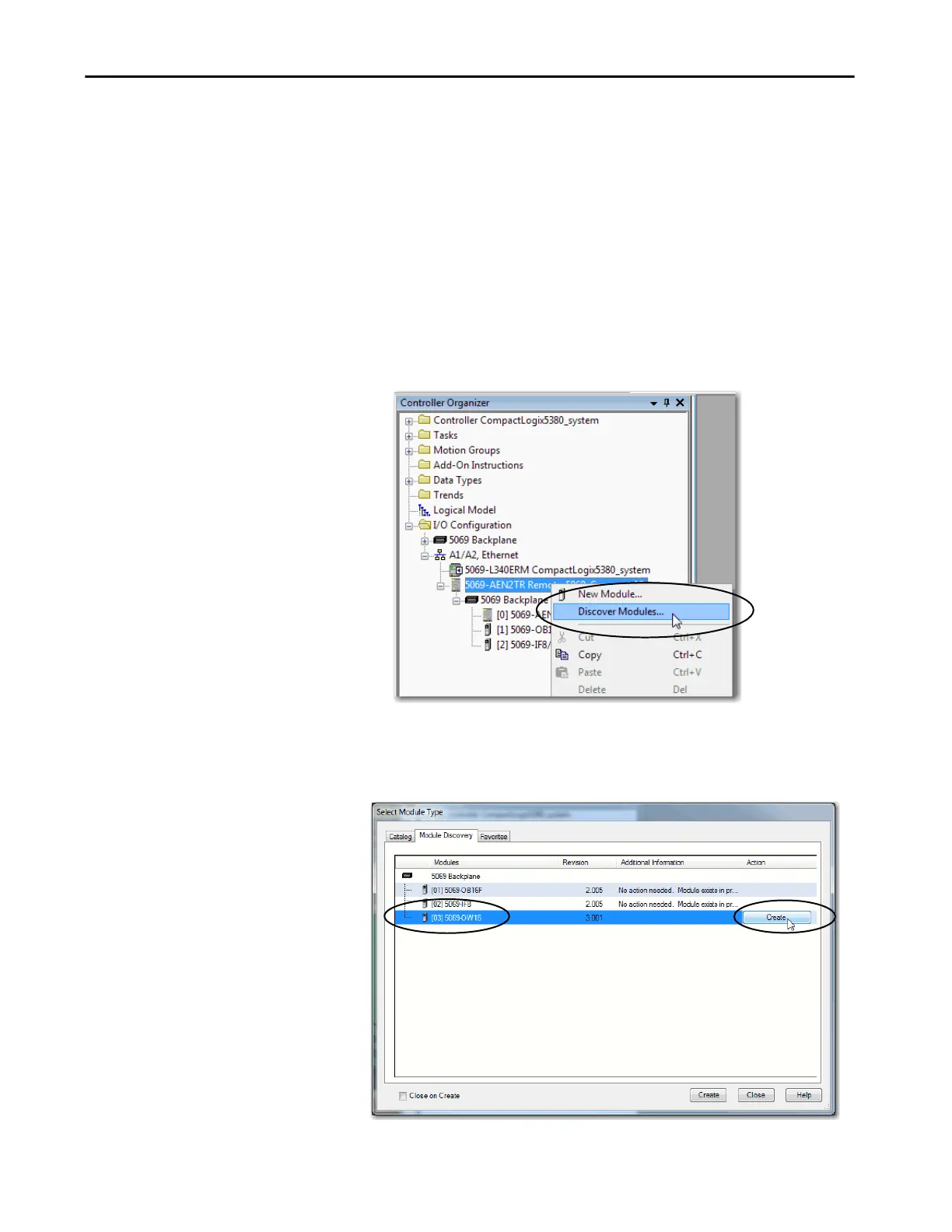

Discover Remote I/O Modules

To use the Discover Modules method with remote I/O modules, complete the

following steps.

1. Go online with your Logix Designer application.

The project must include a Compact 5000 I/O EtherNet/IP adapter.

2. Right-click the Compact 5000 I/O EtherNet/IP adapter and choose

Discover Modules.

The Logix Designer application automatically detects available modules

that are connected to the backplane.

3. At the Select Module Type window, click Create to add the discovered

module to your project.
