128 Rockwell Automation Publication 5069-UM004A-EN-P - April 2019

Chapter 4 Output Module Features

GSV Instruction

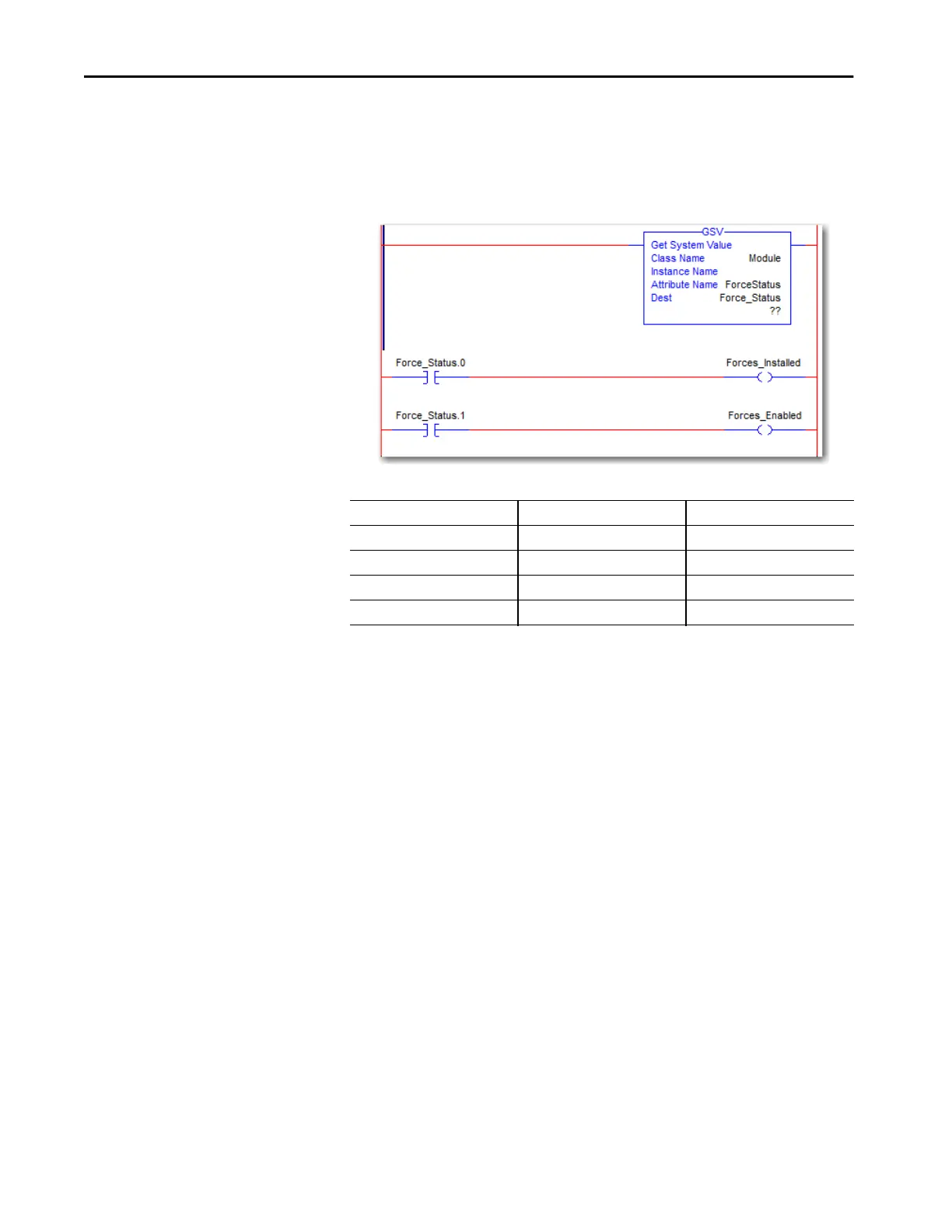

This example shows how to use a GSV instruction to get the status of forces.

For the purposes of this example, Force_Status is a DINT tag.

To Determine This Examine This bit For This Value

Forces are installed. 0 1

No forces are installed. 0 0

Forces are enabled. 1 1

Forces are disabled. 1 0
