Rockwell Automation Publication 825-UM004D-EN-P - November 2012 127
825-PDN DeviceNet Communication Card Chapter 9
18. From the pull-down menu, select Fault.
19. Place the input to the left of the AND
function.
20. Connect the input to the Inp
ut 2 of the AND latch.
21. From the toolbar, select Net
work Output Point.
22. From the pull-down menu, select Flt
Reset.
23. Select OK.
24. Moving your cursor into the grid, place the Out
put to the right of the
AND function block.
25. Connect the Out
put of the AND function block to Flt Reset.

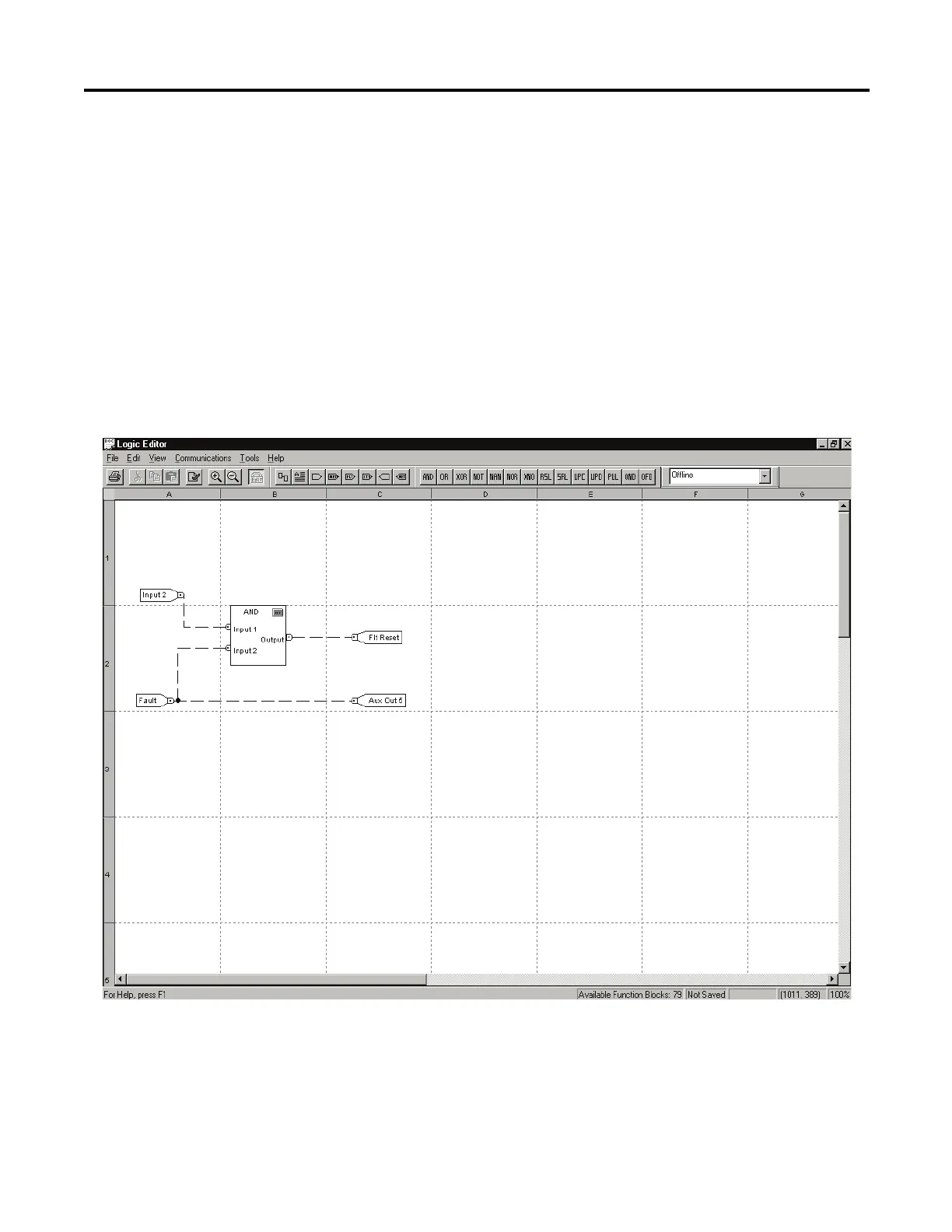

Figure 45 - DeviceLogix Logic Editor Screen
26. From the toolbar. select Discrete Output Point.
27. From the pull-down menu, select Aux
Out 5. This is the tower light output
listed in the I/O table example.
