Allen-Bradley Kinetix 6200 User Manual

166 Rockwell Automation Publication 2094-UM002G-EN-P - August 2016
Chapter 6 Configure and Start the Kinetix 6200 Drive System

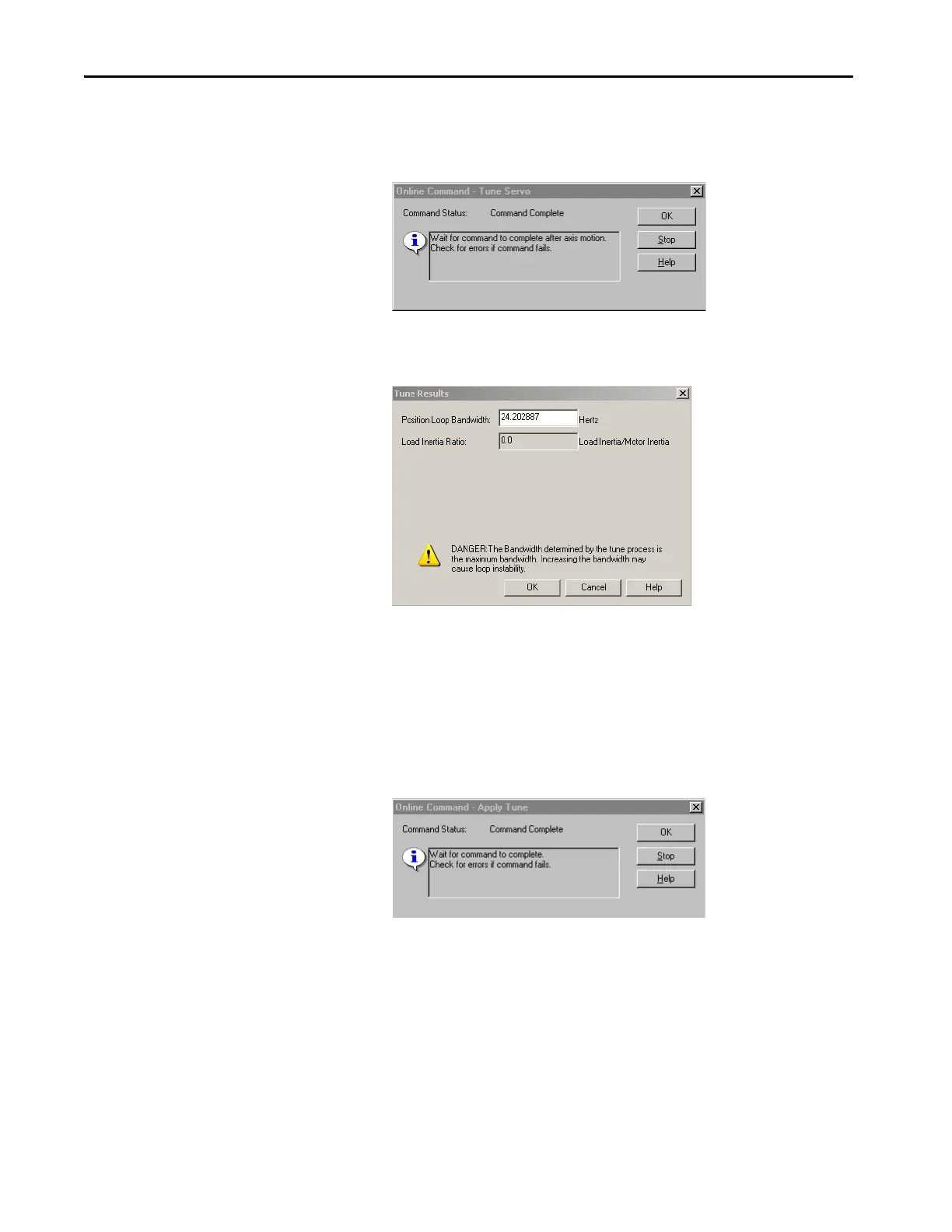

The Online Command - Tune Servo dialog box opens. When the test
completes, the Command Status changes from Executing to Command
Complete.
8. Click OK.
The Tune Bandwidth dialog box opens.
Actual bandwidth values (Hz) depend on your application and can
require adjustment once motor and load are connected.
9. Record your bandwidth data for future reference.
10. Click OK.
The Online Command - Apply Tune dialog box opens. When the test
completes, the Command Status changes from Executing to Command
Complete.
11. Click OK.
