Rockwell Automation Publication 2094-UM002G-EN-P - August 2016 263

Upgrade the Drive Firmware Appendix B

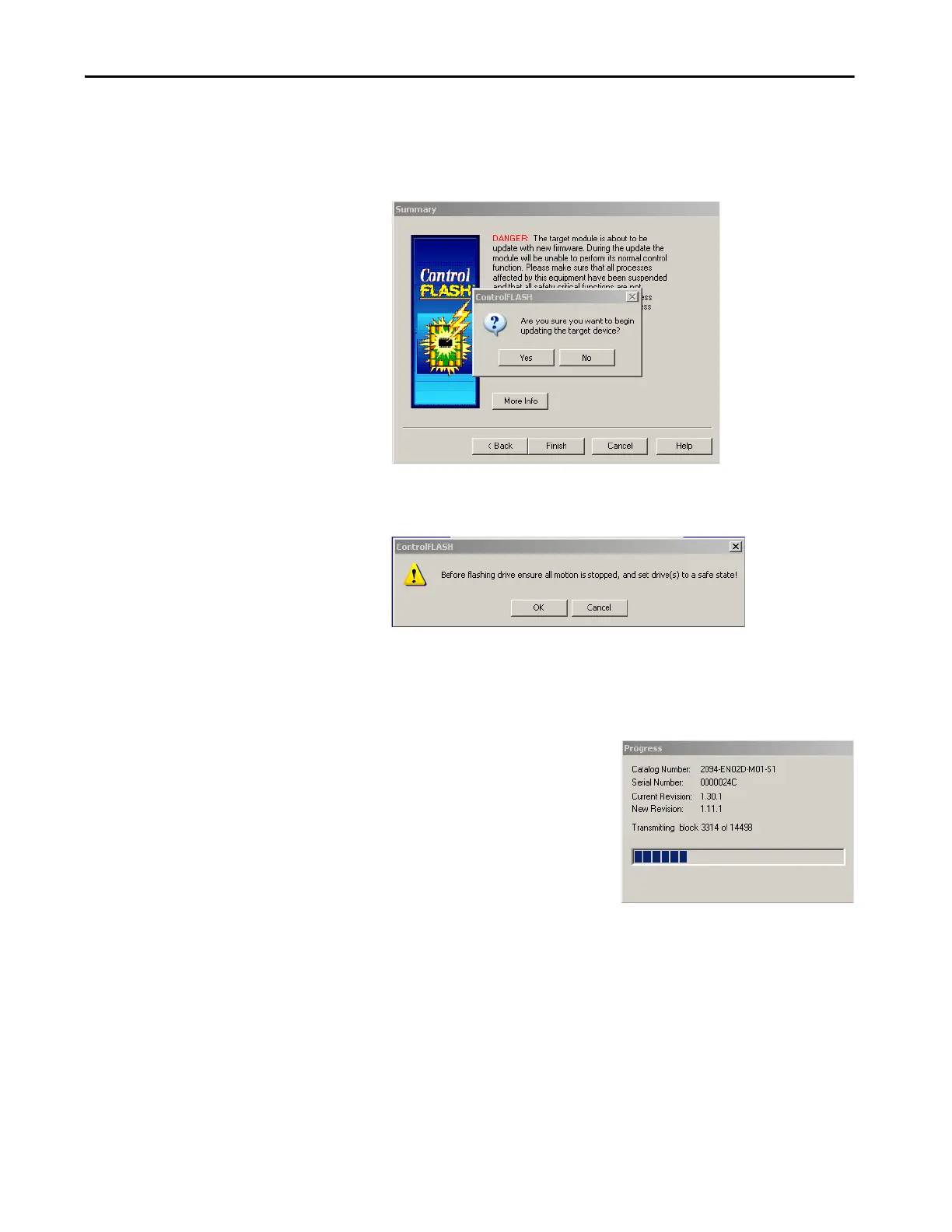

10. Confirm the drive catalog number and firmware revision.

11. Click Finish.

This ControlFLASH warning dialog box opens.

12. Click Yes (only if you are ready).

This ControlFLASH warning dialog box opens.

In this example, the warning applies to the Kinetix 6500 control

modules. If you are flashing a Kinetix 6200 control module, the warning

will be different.

13. Acknowledge the warning and click OK.

The Progress dialog box opens

and flashing begins.

The control module four-

character status indicator changes from CP-2, CONFIGURING,

STOPPED, RUNNING, or PRE-CHARGE to FIRMWARE

UPDATE, which indicates that upgrading is in progress.
