Publication 2711P-UM001B-EN-P
7-8 Transferring files and Upgrading Firmware
Upgrading Firmware Using
a Firmware Upgrade Card
This section shows to upgrade firmware in the PanelView Plus
terminal using a firmware upgrade card that was created with the
Firmware Upgrade Wizard.
1. Insert the firmware upgrade card into the card slot of a
PanelView Plus terminal with power on, or power on the
terminal with a firmware upgrade card loaded in card slot.

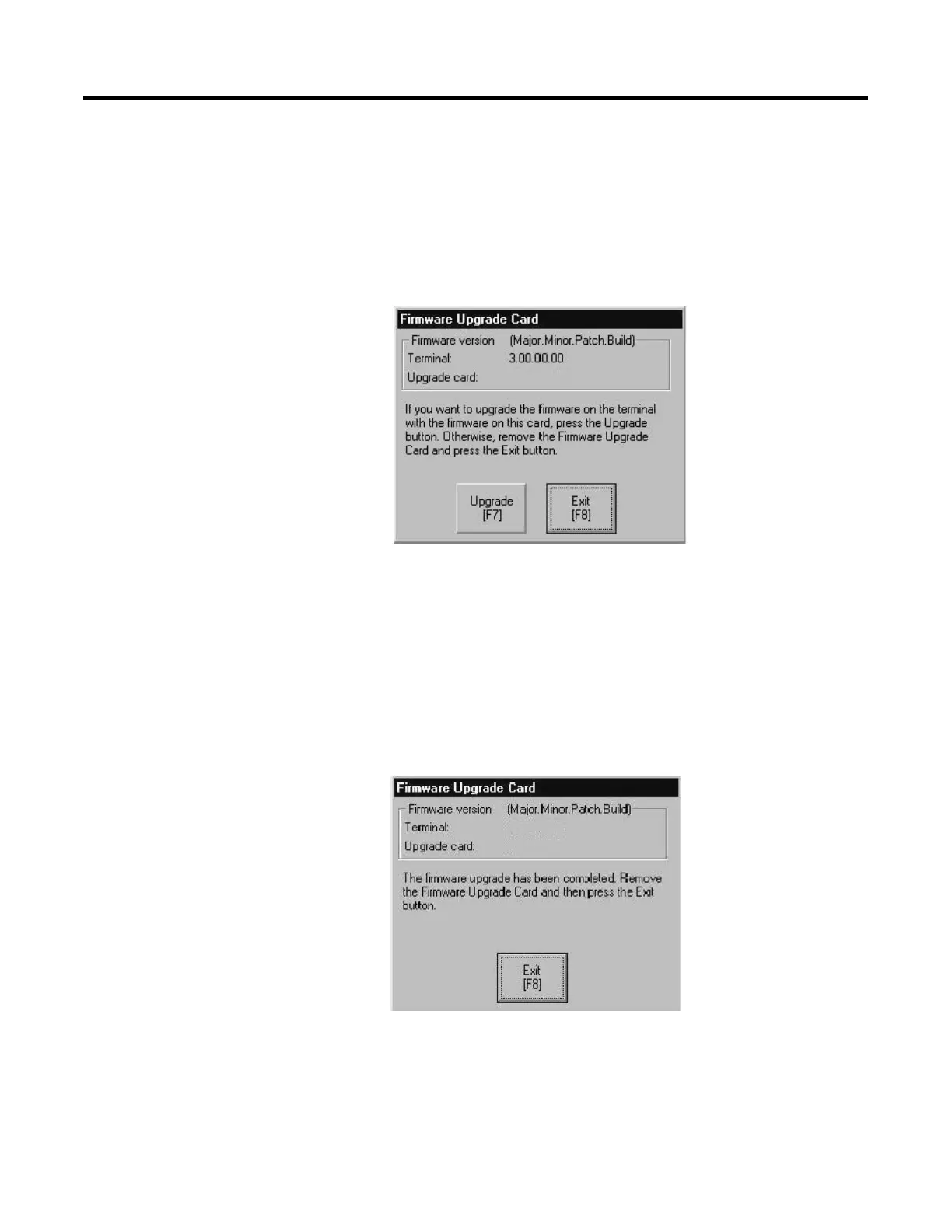

The following dialog appears.
2. Press the Upgrade button to start the upgrade.
The terminal restarts. If RSView ME is running on the terminal, it
will be stopped before the restart.
While the firmware is upgraded, you will see a dialog with the
following messages:
Upgrading firmware
Please wait . . .
When the upgrade is complete, the following dialog appears.
3. Press Exit to close the dialog.
The dialog shows the firmware
version currently on the terminal
and the firmware version of the
files on the card.
3.01.00.00
The Terminal and Upgrade card
version numbers are the same
when the firmware is complete.
3.01.00.00
X.XX.XX.XX
