3-2 Applying Power
Installing and Removing
Power Terminal Block
You can remove and re-install the DC or AC power terminal block for
ease of installation, wiring, and maintenance. The terminal block is
pre-installed when shipped.
400 - 600 Terminals
WARNING
!
Explosion Hazard
• Substitution of components may impair suitability
for hazardous locations.
• Do not disconnect equipment unless power has
been switched off and area is known to be
non-hazardous.
• Do not connect or disconnect components unless
power has been switched off.
• All wiring must comply with N.E.C. articles
501-4(b), 502-4(b), 503-3(b) as appropriate.
• Peripheral equipment must be suitable for the
location it is used in.
ATTENTION
!
Disconnect all power before installing or replacing
components. Failure to disconnect power may result
in electrical shock and/or damage to the terminal.
ATTENTION
!
AC and DC terminal blocks are keyed and marked
differently so be sure to follow markings. Do not
force terminal blocks into connectors to prevent
potential damage to terminal.

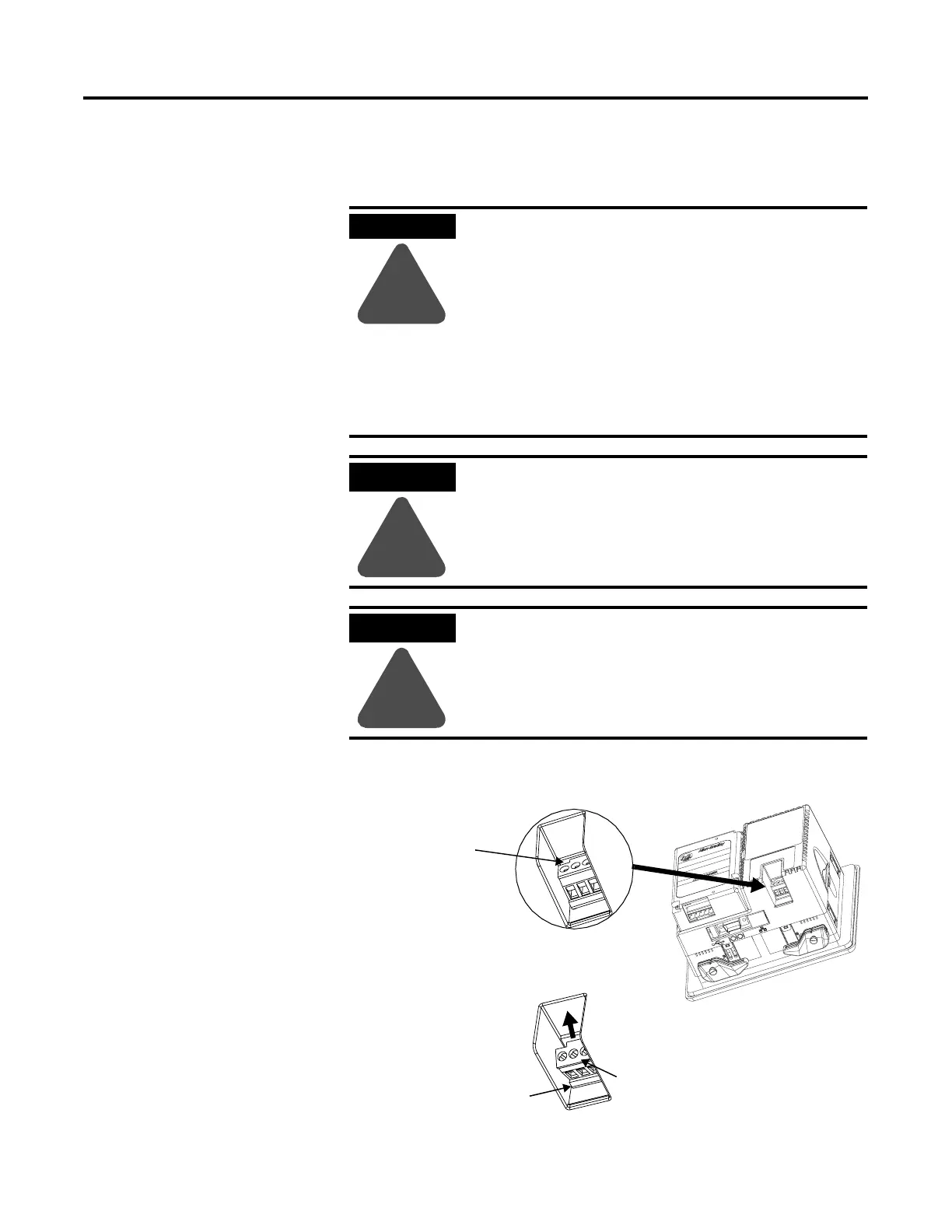

1. Insert tip of small,
flat-blade, screw driver into
terminal block access slot.
2. Gently pry terminal block
away from terminal to release
locking mechanism
1. Press terminal block base in
first with block leaning outward.
2. Gently push top of terminal block back
to vertical position to snap in locking tab.
To remove terminal block:
To install terminal block:
