Publication 2711P-UM001B-EN-P
Applying Power 3-3
700 - 1500 Terminals
Connecting DC Power
The PanelView Plus are terminals have an integrated DC power
supply terminals have an integrated AC or DC power supply. The
electrical input ratings for DC power are:
The DC power supply is internally protected against reverse polarity.
The input power terminal block on the integrated power supply is
removable and supports the following wire sizes:
PanelView Plus terminals using 24V dc power are EN 61131-2
Equipment Class II devices.

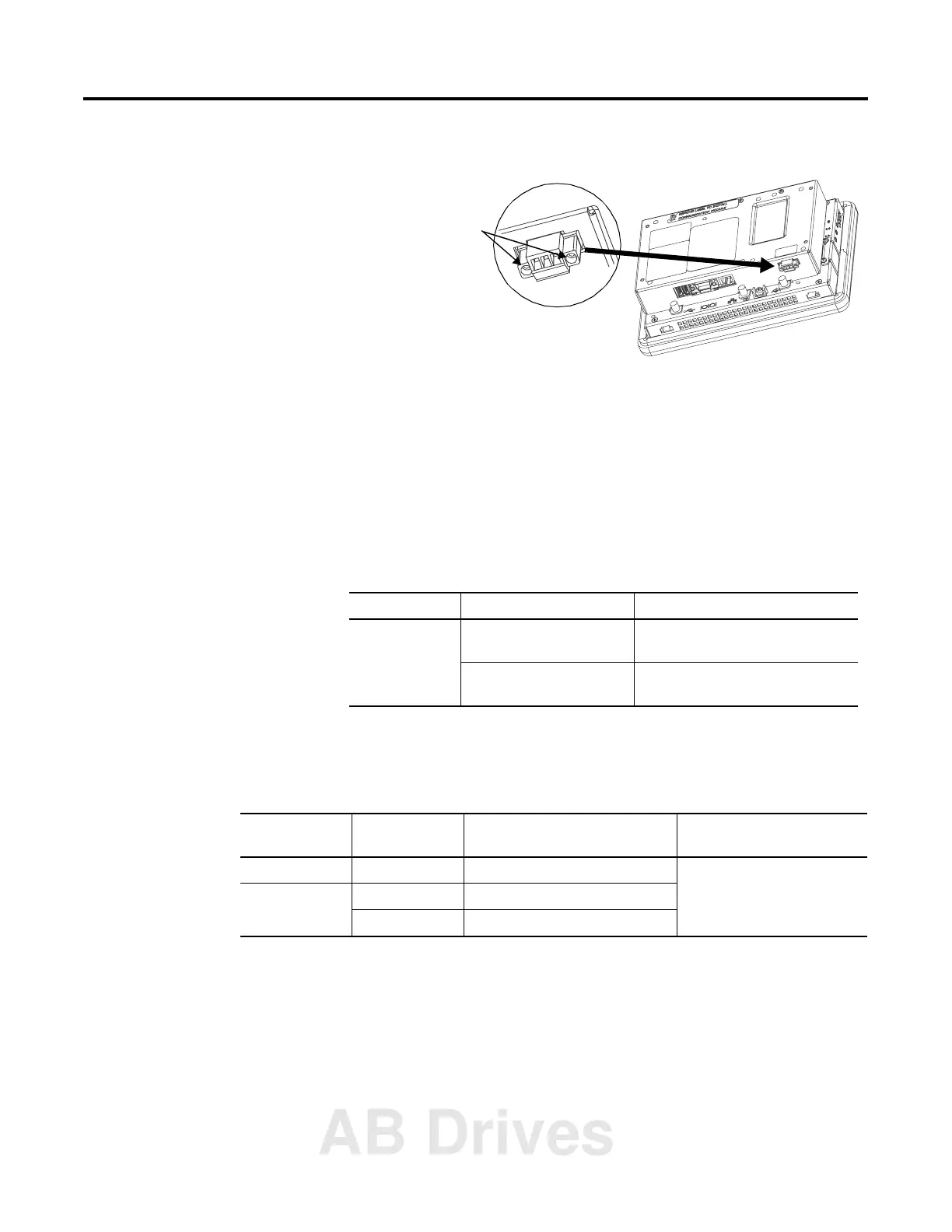

1. Remove the two screws
that secure the terminal
block.
2. Gently pull the terminal
block away from the
connector.
1. Re-attach the terminal block
to the connector until seated.
2. Replace the 2 secures that secure the
terminal block to the connector.
To remove terminal block:
To install terminal block:
Power Type Terminal Input Range
DC
400 - 600 24V dc nominal (18…30 V dc)
25 Watts maximum (1.0 A at 24V dc)
700 - 1500 24V dc nominal (18…32 V dc)
70 Watts maximum (2.9 A at 24V dc)
Terminal Wire Type
Wire Size
(2-wire maximum per terminal)
Terminal Block
Screw Torque
400 - 600 Stranded or Solid #18 to #12 AWG
.23 - .45 N•m (2 - 4 in-lbs)
700 - 1500
Stranded #16 to #22 AWG
Solid #18 to #22 AWG
