3-6 Applying Power

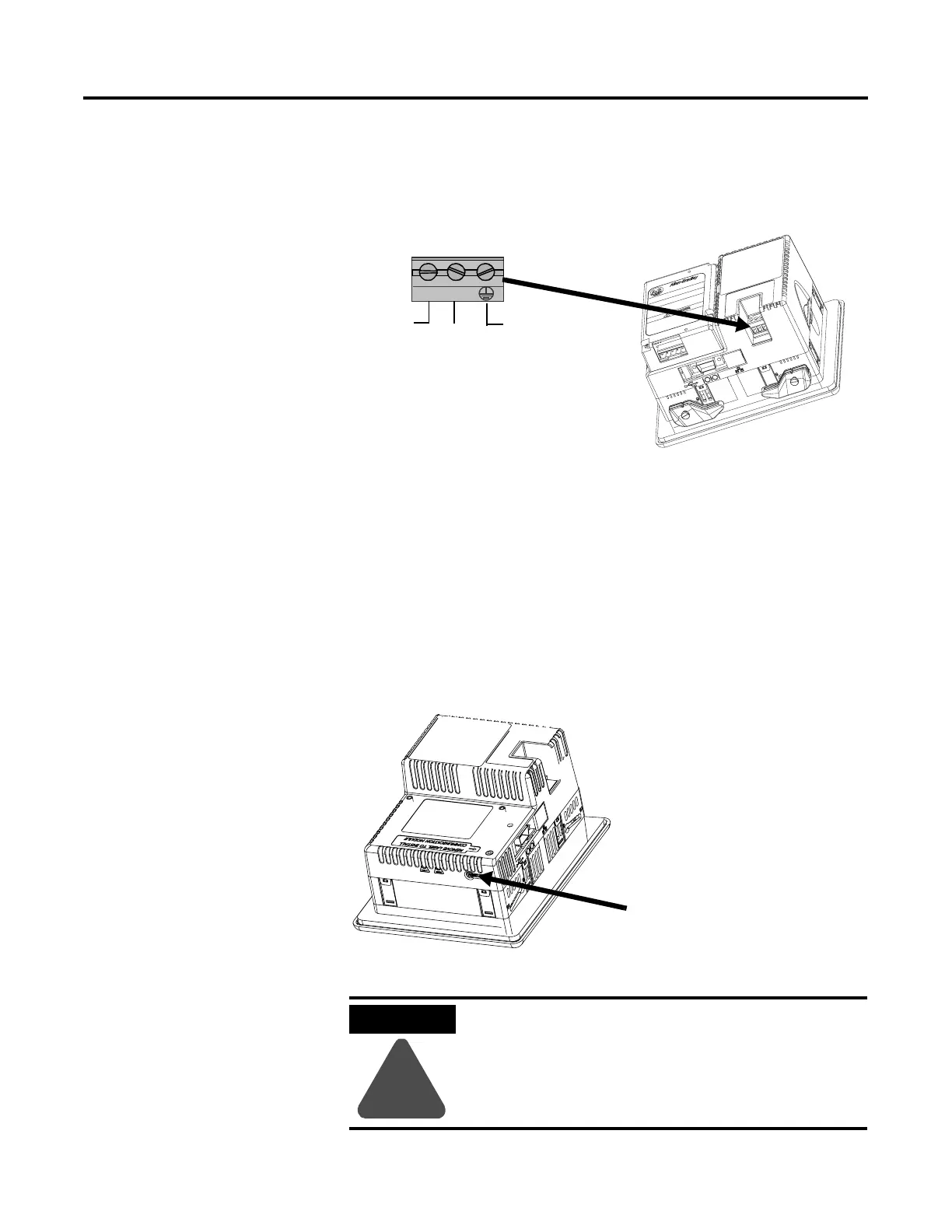

To connect AC power:
1. Secure the AC power wires to the terminal block screws.
2. Secure the Earth Ground wire to the appropriate terminal block
screw.
3. Apply power to the terminal.
Resetting the Terminal
400 - 600 Terminals
The PanelView Plus 400 and 600 terminals have a Reset switch on the
side of the terminal. Use the Reset switch to restart the terminal
without having to disconnect and reapply power. When reset, the
terminal will perform a series of startup tests and run RSView ME. The
loaded .MER application may also run depending on how the terminal
is configured.
Press Reset with your finger or a nonconducting object.
L1
L2/N
Protective
Earth Ground
L1 L2N
ATTENTION
!
Use a nonconducting object to press the RESET
switch. Do not use a conducting object such as a
paper clip or you may damage the terminal. Do not
use the tip of a pencil; graphite may damage the
terminal.
Reset Switch
To Next Page
