Publication 2711P-UM001B-EN-P
Installation 2-5
Mounting Dimensions

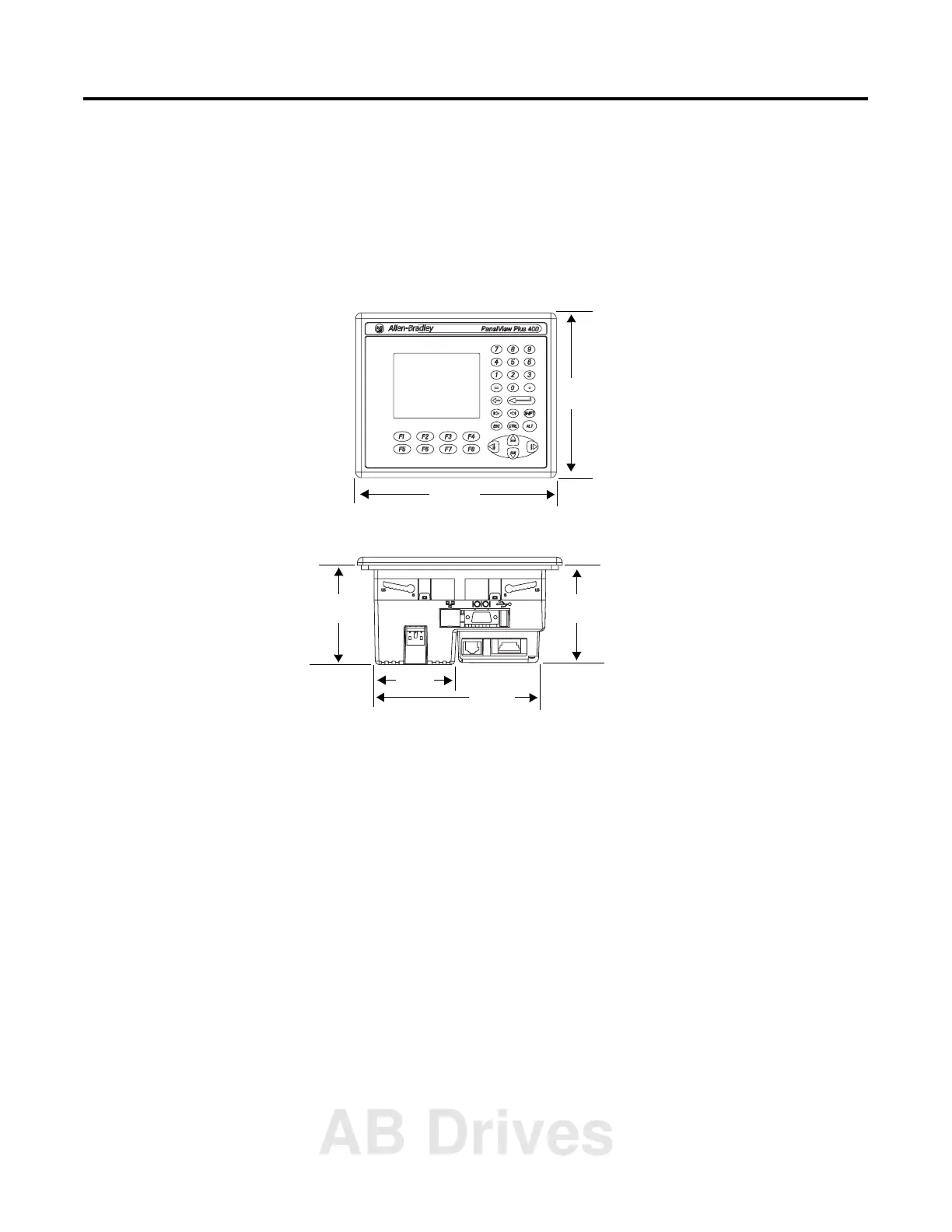

This section provides mounting dimensions for the entire line of
PanelView Plus terminals. All measurements are in mm (inches).
PanelView Plus 400
152
(6.0)
185 (7.28)
60
(2.35)
90
3.54)
71 (2.81)
154 (6.08)
