1-6 Overview
Keypad or Keypad & Touch
The keypad versions of the PanelView Plus 400 and 600 terminals are
available with the following options:
• 400 terminals: grayscale display with keypad input only
• 600 terminals: color or grayscale displays with either keypad or
keypad & touch input

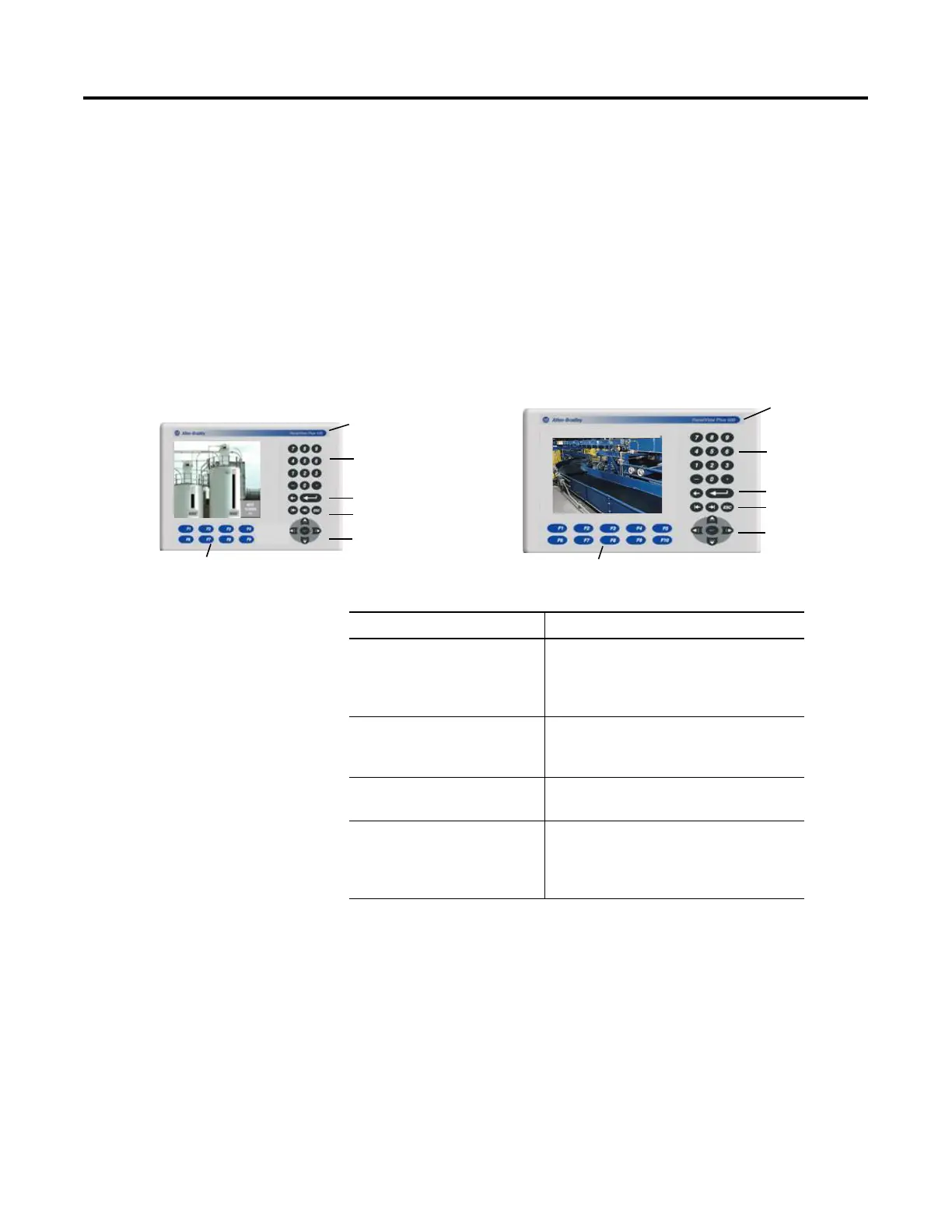

The following illustration shows the features of each terminal:
Navigation Keys
Numeric Keypad
Backspace and
Enter Keys
Tab and Shift Keys
400 Grayscale Terminal
with Keypad
600 Grayscale or Color Terminal
with Keypad or Keypad & Touch Screen
Navigation Keys
Numeric Keypad
Backspace and Enter Keys
Tab and Shift Keys
8 Programmable Function Keys
10 Programmable Function Keys
Replaceable ID Label
Replaceable
ID Label
Keys Description
400 F1 - F8
600 F1 - F10
Programmable keys that initiate functions
on terminal display. Replaceable legends
are available for the 600 terminals allowing
for custom function key labels.
ID Label Allen-Bradley ID label. The ID label is
replaceable allowing for custom product
identification.
Numeric Keypad 0-9, ., -, Backspace, Enter, Left and Right
Tab keys, Shift keys
Navigation Keys Use the arrow keys for navigation.
Use the Alt+arrow keys to activate home,
end, page up, and page down functions.
