Overview 1-11
Keypad or Keypad & Touch

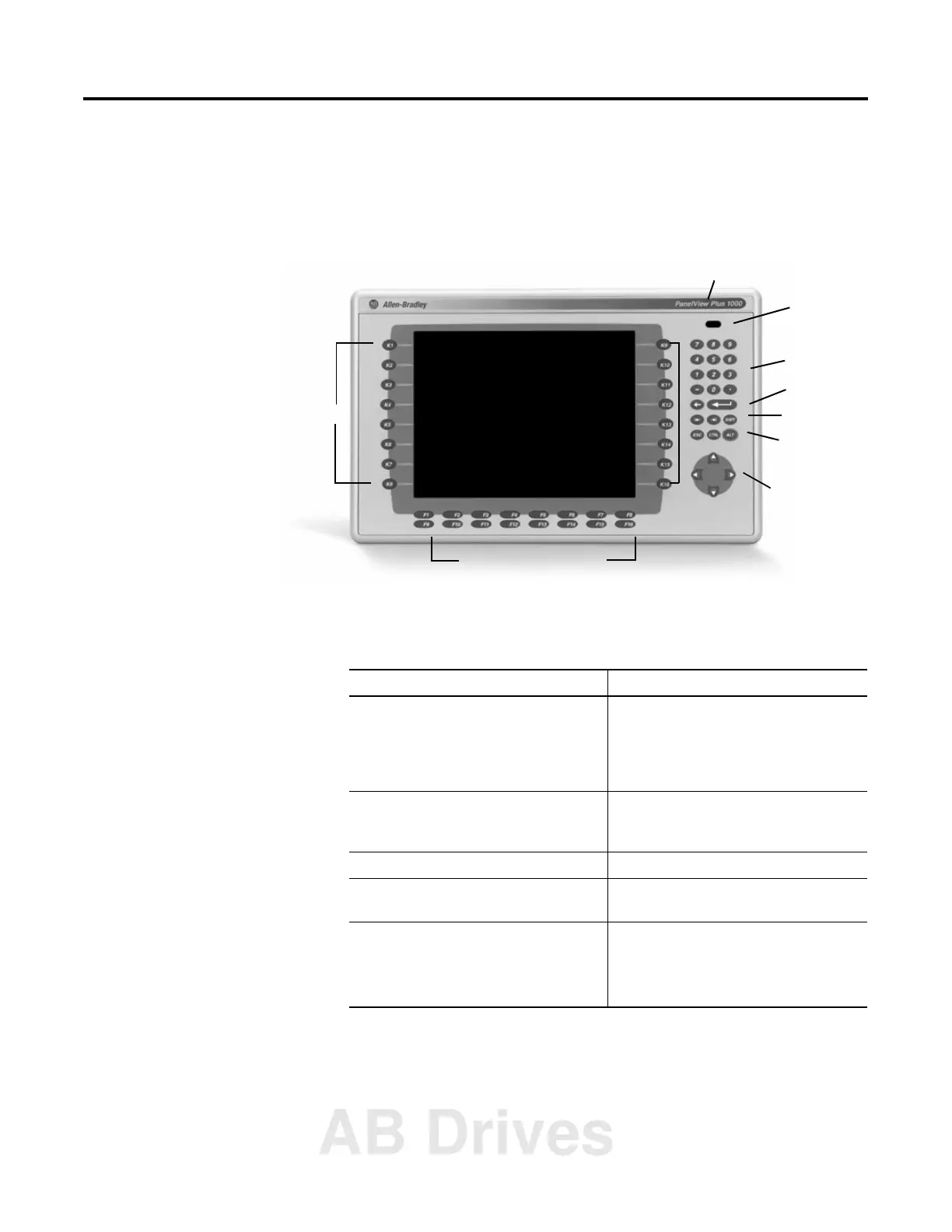

The following illustration shows the features of the 1000 keypad or
keypad & touch display. All of the displays are similar except for size
and the number of function keys available.
All of the Kxx and Fxx function keys on the keypad terminals are
programmable.
Backspace
and Enter Key
IrDA Port
Navigation Keys
Numeric Keypa
Programmable Function Keys
Replaceable ID Label
Tab, Shift Keys
Esc, CT, Alt Keys
Programmable
Function Keys
Feature Description
Function Keys
700 (F1-F10, K1-K12)
1000 (F1-F16, K1-K16)
1250 (F1-F20, K1-K20)
1500 (F1-F20, K1-K20)
Programmable keys that initiate functions
on terminal display. Replaceable legends
are available for the terminals allowing for
custom function key labels.
Label Allen-Bradley ID label. The ID label is
replaceable allowing for custom product
identification.
IrDA Port For data or application transfers.
Numeric Keypad 0-9, ., -, Backspace, Enter, Left and Right
tab, Shift, Esc, Ctrl, Alt keys
Navigation Keys Use the arrow keys to move cursor in lists,
select objects,
Alt+arrow key activates home, end, page
up, page down functions.
