Allen-Bradley PowerFlex 755T Installation Instructions

46 Rockwell Automation Publication 750-IN100B-EN-P - July 2017
Chapter 3 Prepare for Installation

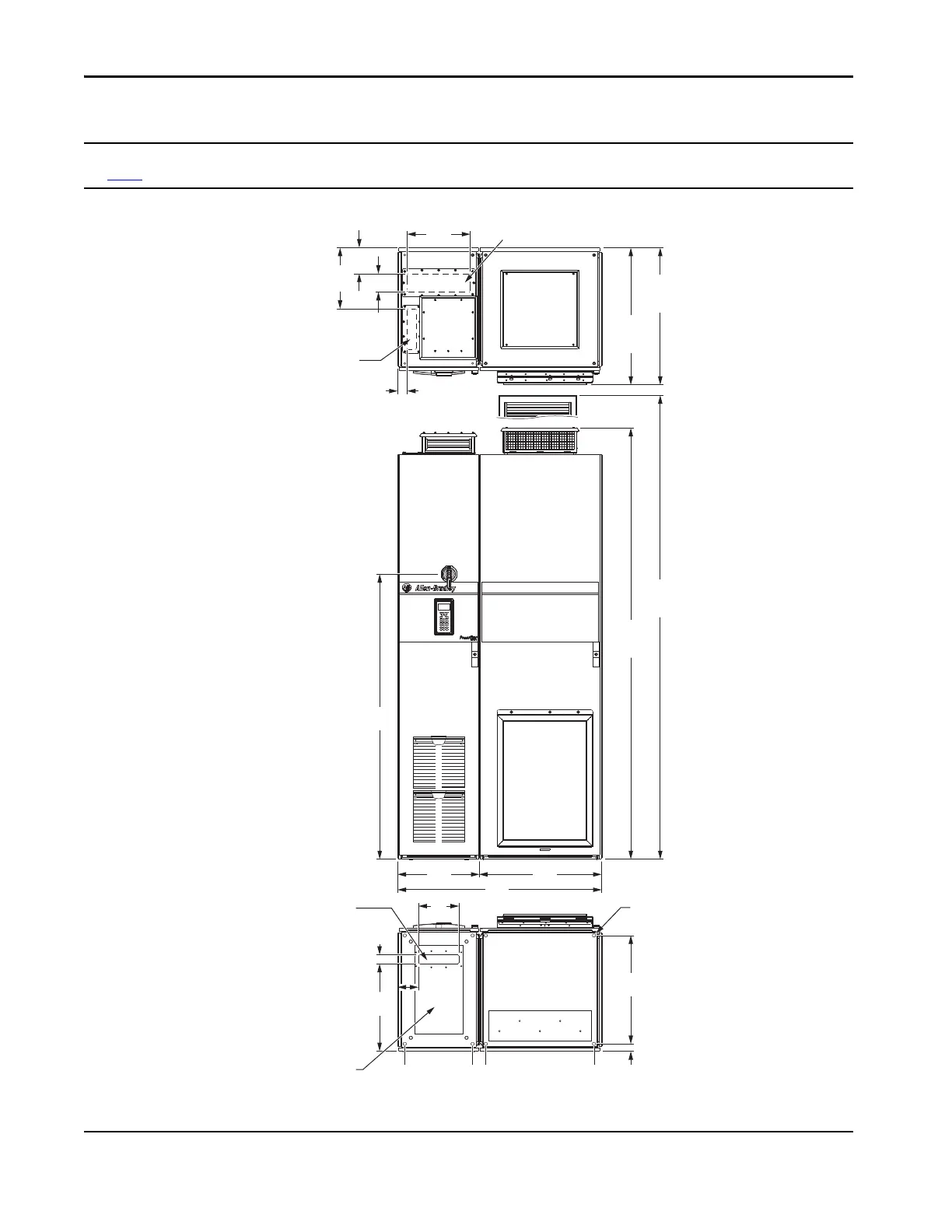

PowerFlex 755TM Bus Supplies Approximate Dimensions
Frame 8 Bus Supplies Top, Front, Bottom, and Side Views - Dimensions are mm (in.)
See page 51 for optional entry wire bay dimensions.
335 (13.2)
0 (0)
431
(17.0)
45
(1.8)
1006
(39.6)
400
(15.7)
1407
(55.4)
48
(1.9)
301
(11.9)
128
(5.0)
90
(3.5)
312
(12.3)
935 (36.8) 400 (15.8)
600
(23.6)
36
(1.4)
535
(21.1)
IP21, UL Type 1
2132
(83.9)
IP54, UL Type 12
2291
(90.2)
IP21, UL Type 1
676
(26.6)
IP54, UL Type 12
721
(28.4)
103
(4.1)
200
(7.9)
Input Power Cables - Top Entry
Signal Cables - Top Entry
Dimensions same as bottom.
Signal Cables - Bottom Entry
Mounting Holes
Input Power Cables - Bottom Entry
Power BayInput Bay
