Rockwell Automation Publication 750-IN100B-EN-P - July 2017 77
Mechanical and Electrical Installation Chapter 4

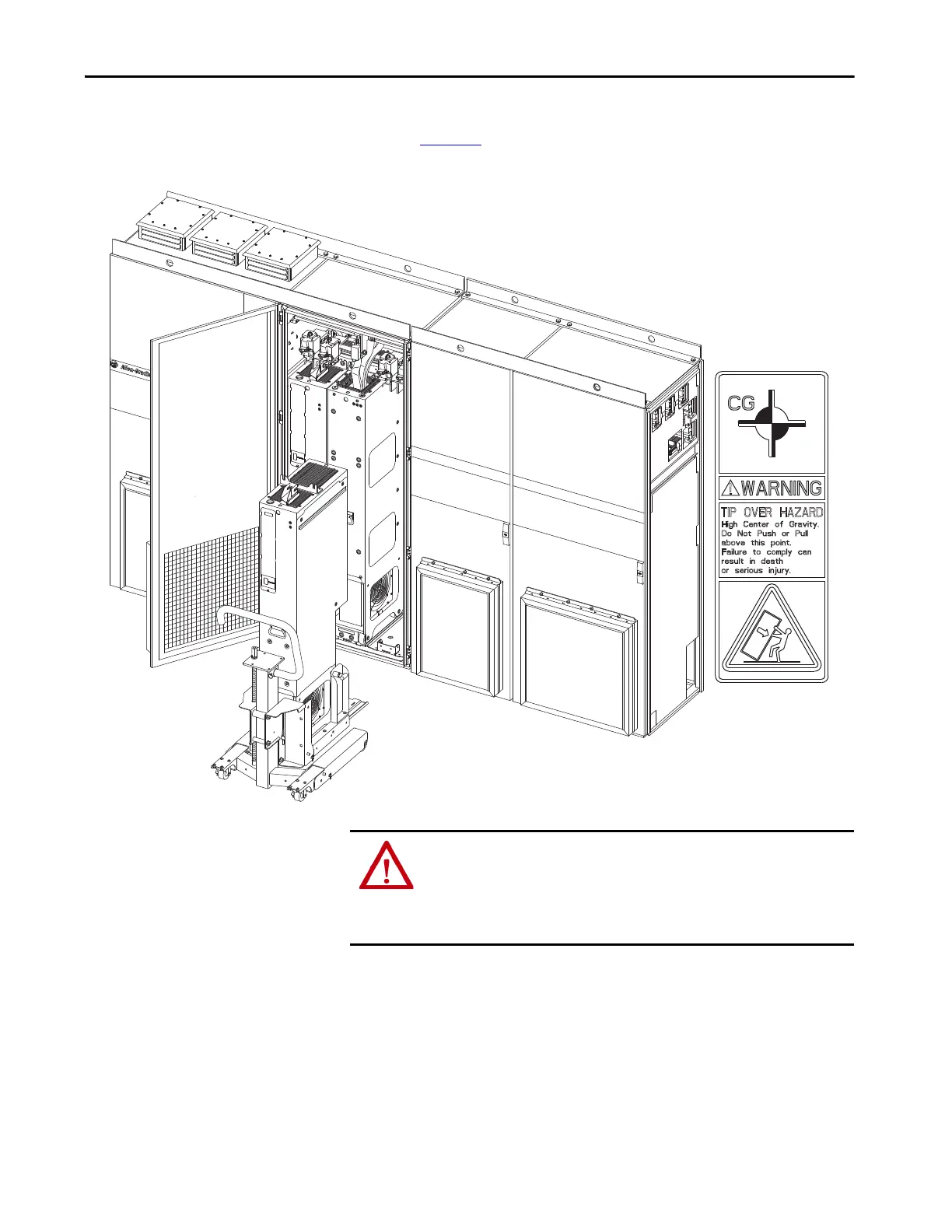

15. Remove the two remaining M10 screws to release the power module
(see Figure 40
).
16. Remove the power modules from the enclosure.
ATTENTION: LCL filter modules and power modules have a high center of
gravity and a tip-over hazard exists. To guard against death, serious personal
injury, or equipment damage, do not subject the module to high rates of
acceleration or deceleration while transporting. Do not push or pull above
the points indicated on the module.
