Quick Start for Experienced Users 19

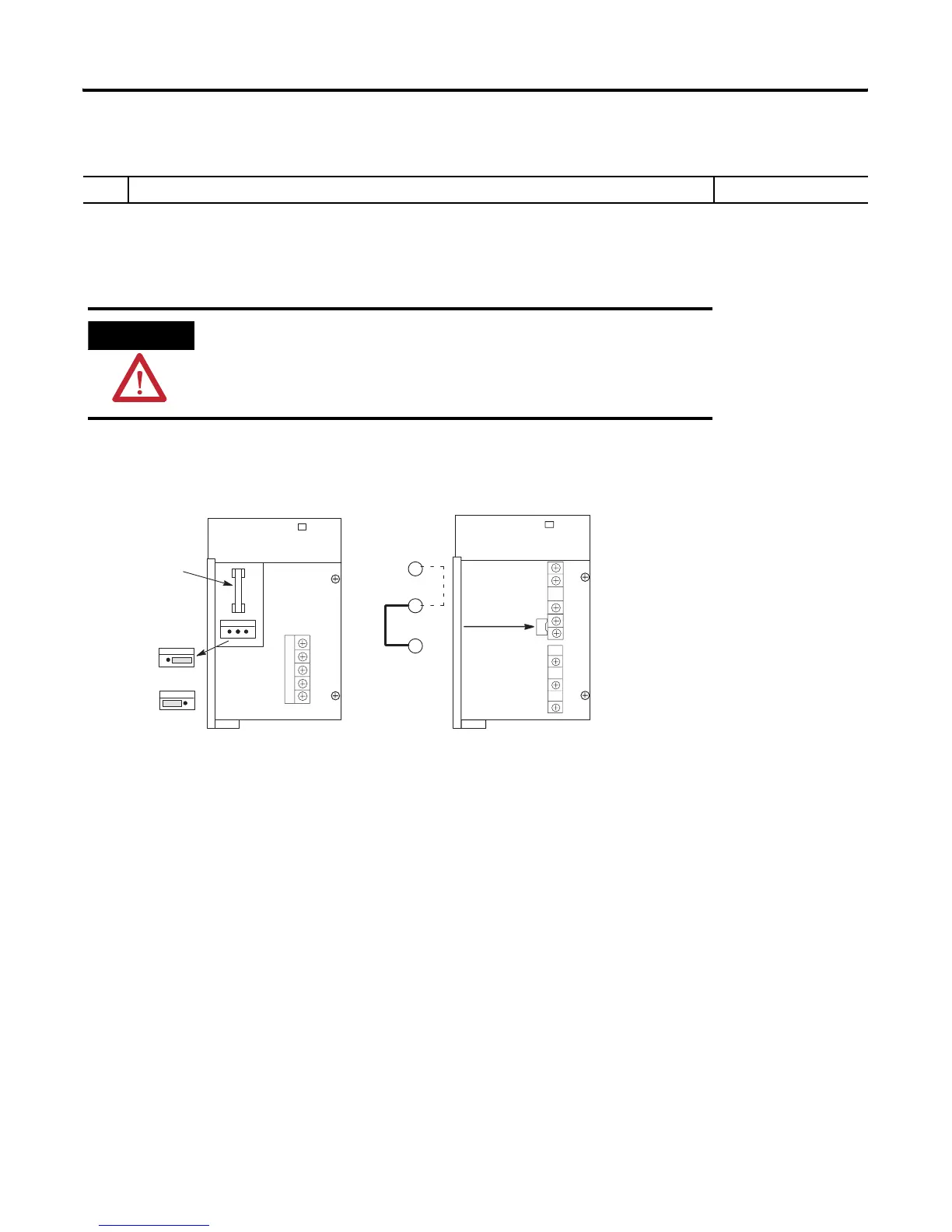

4. Make jumper selection for 120/240V ac on 1746-P1, 1746-P2, and 1746-P4 power supplies. Reference
Place the input voltage jumper to match the input voltage. This does not apply to the
1746-P3, 1746-P5, 1746-P6, or 1746-P7 power supplies which do not have jumpers.
Chapter 6
(Installing Your
Hardware
Components)
ATTENTION
Set the input jumper before applying power. Hazardous voltage is present on
exposed pins when power is applied; contact with the pin may cause injury to
personnel.
POWER
POWER
1746-P1 and 1746-P2 Power Supplies
Fuse
Jumper Selection
100/120 Volts
200/240 Volts
1746-P4 Power Supply
Jumper Selection
85-132V ac
170-250V ac
