Layout and function
3.6 Auxiliary systems
3.6.1 Sealing system
Sealing systems in various designs are available from the
manufacturer upon consultation.
3.6.2 Heating and cooling system (optional)
The followin g parts can be tempered with an optio nal heating
and cooling system (ID and IE design):
• Gland packing casing
• Suction casing
•Stator
The heating and cooling systems of the casings are double-
jacket casings, which are permanently supplied with cool ing
and heating medium.
3.7 Ty pes of setup
The following types of setup are possible:
– Horizontal, dry
– Vertical dry, wall installation (only permissible if drive
and bearing at top)

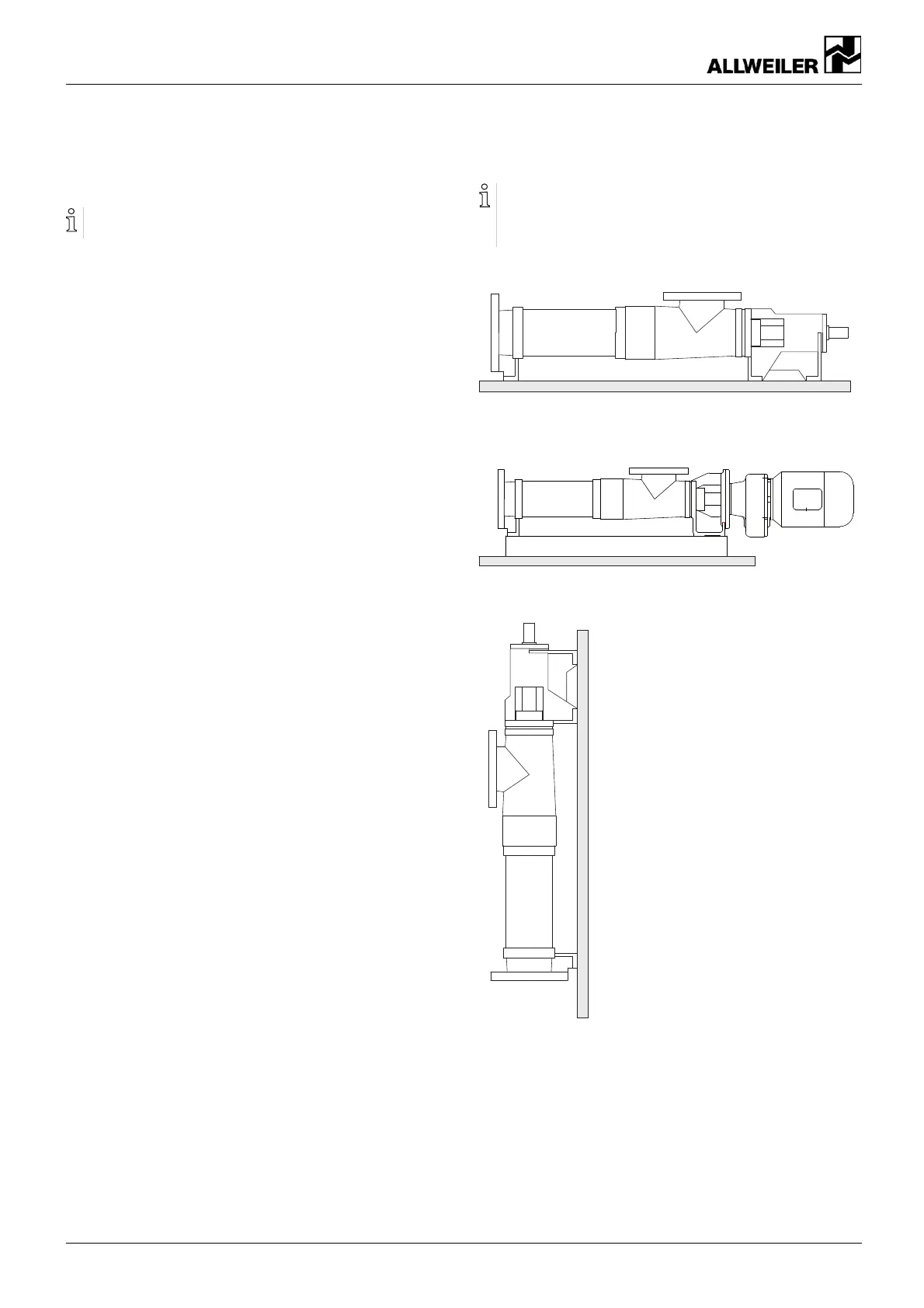

Fig. 5 Horizontal dry pump setup
Fig. 6 Horizontal dry pump unit setup
Fig. 7 Vertical dry pump unit setup, wall installation
