Layout and function
3 Layout and function
3.1 Labels
3.1.1 Nameplate
If the pump is not approved for the explosion-hazard area,
the field 1 remains empty.
1
2
3
56
4

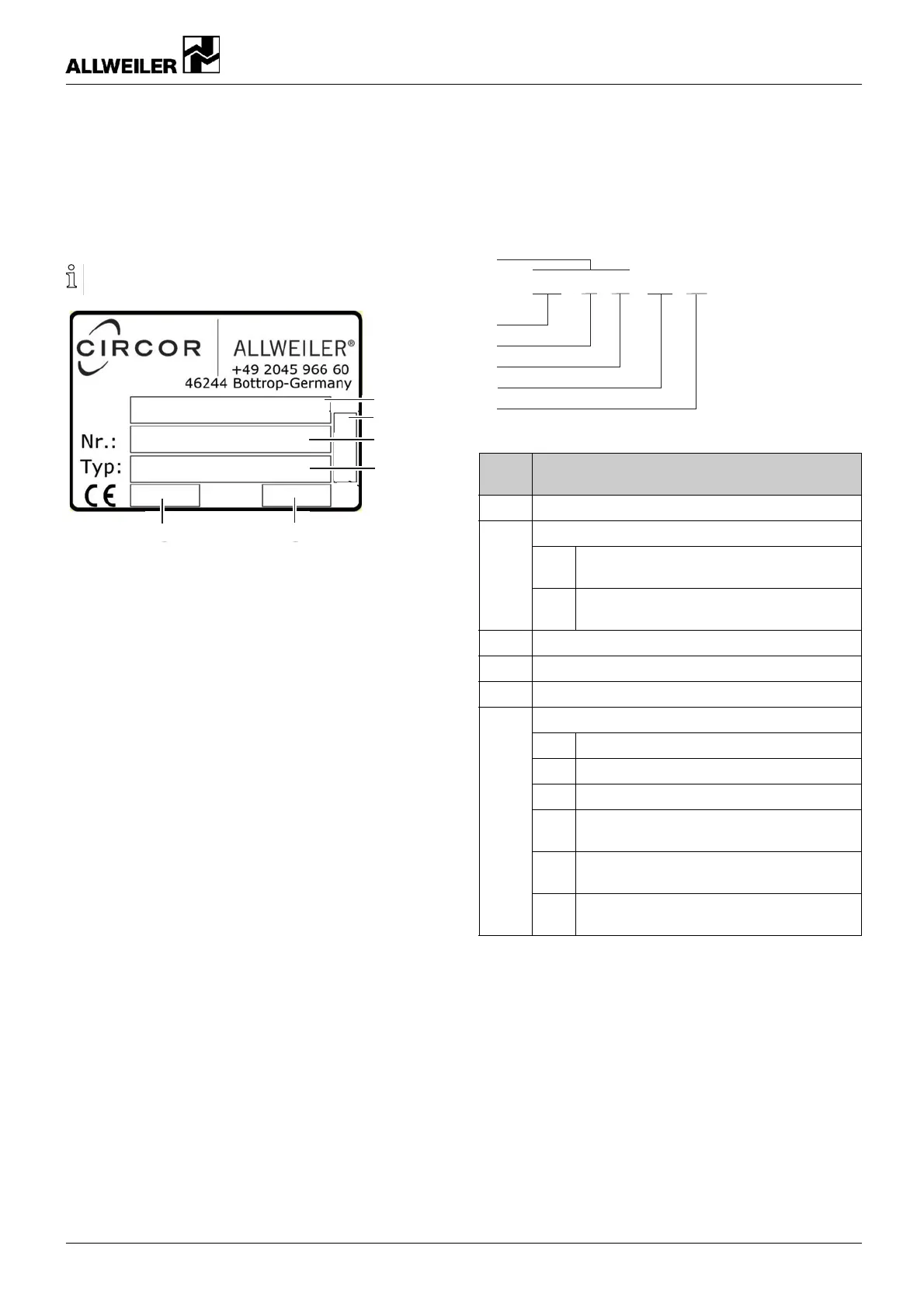

Fig. 1 Nameplate (example with explosion
protection mark)
1 Explosion protection mark
2 Pump equipment number
3Pumptype
4 Direction of rotation or flow
5 Direction of rotation or flow
6 Year of manufacture
3.1.2 Pump type code
2
3
4
5
AEB
1 N 200 – ZE
6
1
Fig. 2 Pump type code (example)
Posi-
tion
Meaning
1
Series
Product
AE Allweiler progressive cavity pump in a
bearing pedestal design
2
AEB Allweiler progressive cavity pump,
close-coupled
3
Number of stages
4
Mechanics (F, L, E, N, H, V)
5
Size
Design
DE Dosing version with external bearings
ID Industrial version with internal bearings
IE Industrial version with external bearing s
RG Open-fee d v ersion with internal gearbox
mounting
ZD Feeding screw version with internal
bearings
6
ZE Feeding screw version with external
bearings
Tab. 5 Pump type code
260371 – 176-982/0 BA-2020.05 en-US AE 9
