7. GETTING TO KNOW YOUR SPA POOL
SUMMIT SPA POOL OVERVIEW
Components:
Spa Pool Controller SpaNet SV-SMART
TopsideControlPanel SpaNet SV-SMART
Heater Element 3KW
Pumps 1xCirculationPump+1xJetMassagePump(3HP)+AirBlower
Skimmer/FilterType Grate Filter
Sanitizers Ozone,Ultra-Violet
Electrical Info 15amps 230 - 240V AC 50hz IPX5
Cable 15ampCablePre-Connected
Locating the Controller & Cable
Removethecabinetpanelsfromthesideofthespapoolthathousesthesystem
controller(seefollowingpageforexactlocation).Insideyouwillndthecable
coiledup.

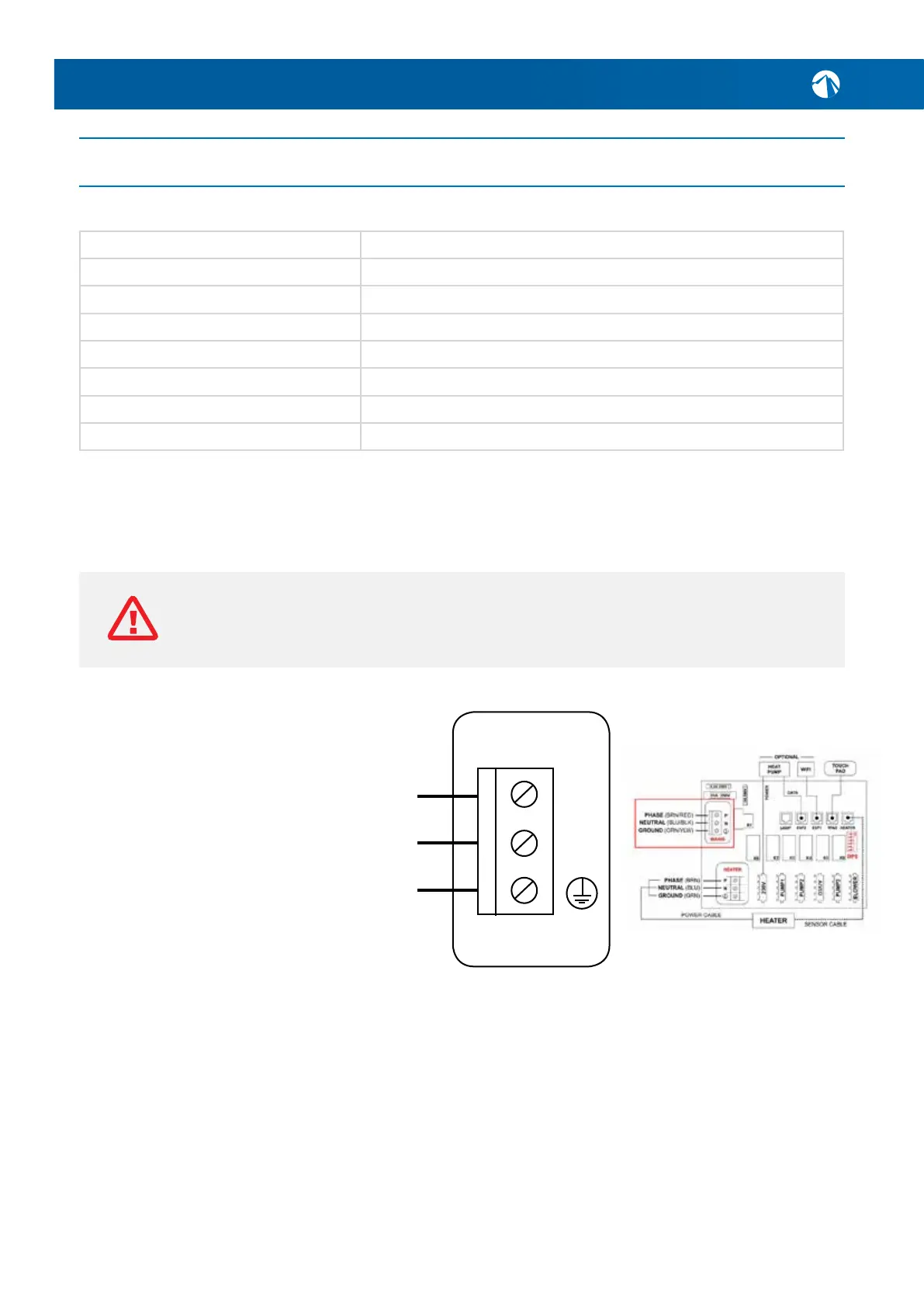

BELOW DIAGRAM IS FOR SINGLE PHASE 15A AND IS ONLY
REQUIRED IF DISCONNECTING & RECONNECTING CABLE.
DIP SWITCHES DO NOT NEED ALTERING.
Cable & Wiring:
This15ampspapoolincludesa4.5metre15amppowercablethathasbeen
pre-connectedandinstalledontothesystemcontroller.
Tosetupforhighamp(25A,noloadshed*)seepage15forinformation.
PHASE (BRN/RED)
NEUTRAL (BLU/BLK)
GROUND (GRN/YLW)
MAINS
P
N
DO NOT POWER THE SPA POOL BEFORE IT HAS BEEN FILLED
