Alpine Spas SPA POOL - Entertainer X90 Spa Pool Overview

72
7. GETTING TO KNOW YOUR SPA POOL
ENTERTAINER X90 SPA POOL OVERVIEW
Components:
Spa Pool Controller SpaNet SV3-VH
TopsideControlPanel SpaNet SV3-VH
Heater Element 6KW(Variable)
Pumps 1xCirculationPump+3xJetMassagePump(3HP)+AirBlower
Skimmer/FilterType StandardWeirFilter
Sanitizers Ozone,Ultra-Violet
Electrical Info 32amps - 45amps. 230 - 240V AC 50hz IPX5
Cable NoCable-HardwiringRequired.
Hardwire Required:
Thisspapoolrequiresdirecthardwiringfromthecircuitboardtothesystem
controllerwithsuitableelectricalcable.
Locating the Controller
Removethecabinetpanelsfromthesideofthespathathousesthecontroller(see
followingpictureforexactlocation).

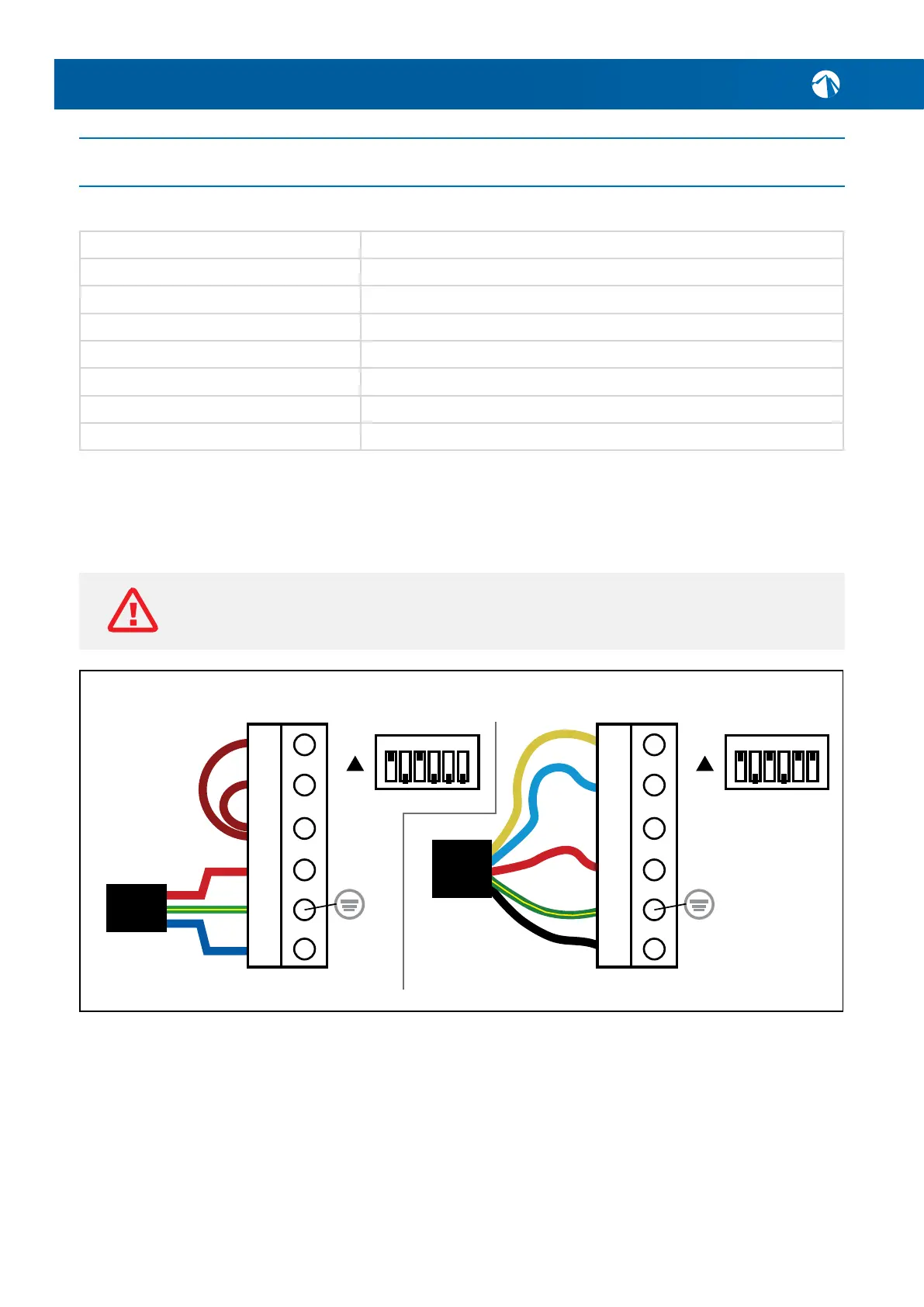

BELOW DIAGRAMS ARE FOR 32A - 45A CONNECTIONS.
DIP SWITCHES ARE PRESET FOR SINGLE PHASE.
P3
P2
CS
P1
G
N
ON
S1 S6 S1 S6
P3
P2
CS
P1
G
N
ON
DO NOT POWER THE SPA BEFORE IT HAS BEEN FILLED
SINGLE PHASE THREE PHASE
DIP SWITCHES DIP SWITCHES
A32ampconnectionwillrequireloadshed/limitingforthecomponentsasthey
cannotallrunsimultaneously.SeetheSpaNetuserguideformoreinformation.
A45ampconnectionprovidespowerforallcomponentstorun.
