Product description
10
Amaco BAG0028.0 04.06
3 Product description
This chapter:
•
Provides a comprehensive overview of the
AMACO
structure.
•
Provides the names of the individual modules and controls.
3.1 Overview
•
Scope of delivery and spare part numbers

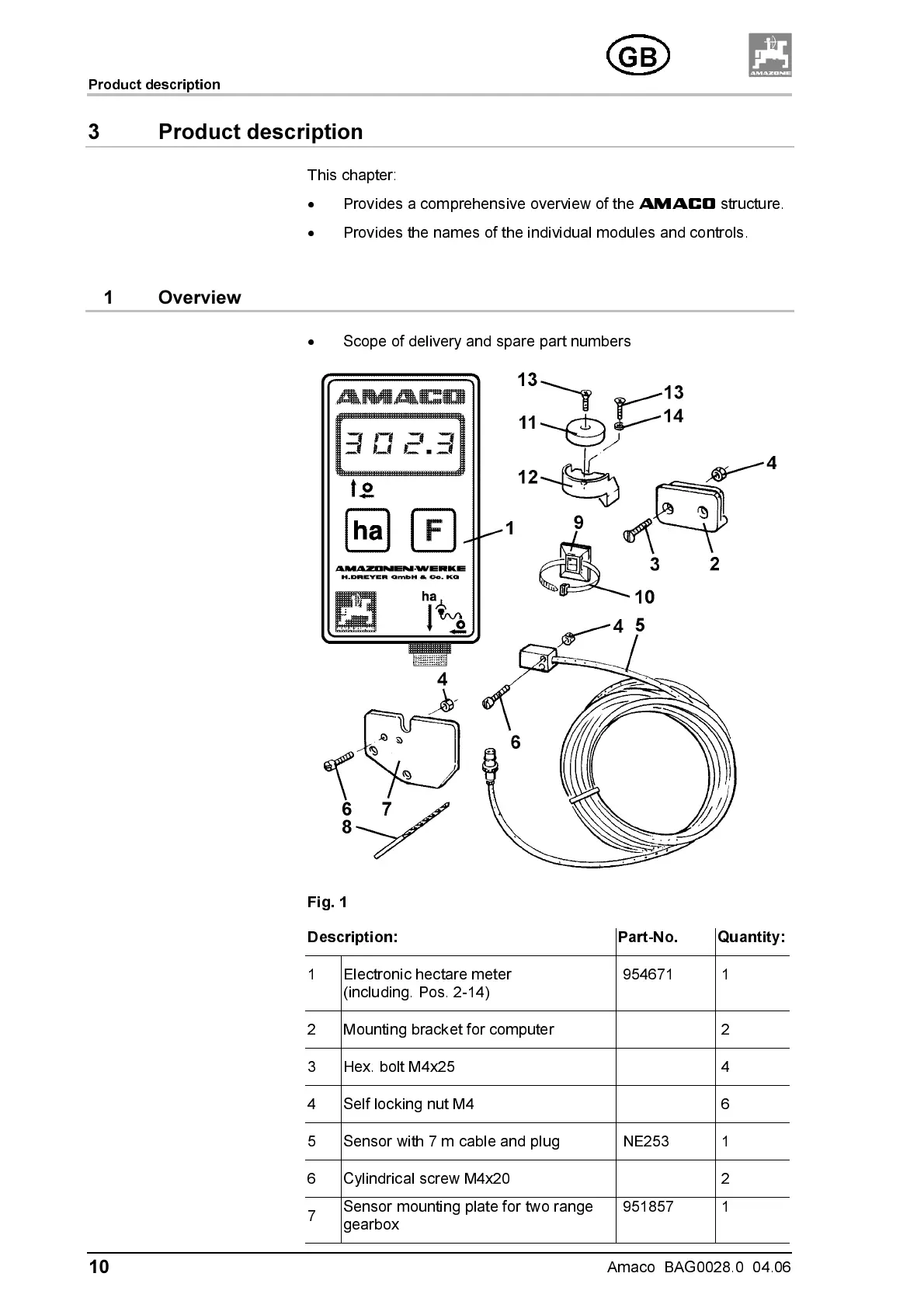

Fig. 1
Description: Part-No. Quantity:
1 Electronic hectare meter
(including . Pos. 2-14)
954671 1
2 Mounting bracket for computer
2
3 Hex. bolt M4x25 4
4 Self locking nut M4 6
5 Sensor with 7 m cable and plug NE253 1
6 Cylindrical screw M4x20 2
7
Sensor mounting plate for two range
gearbox
951857 1
