Amazone AMACO - Fitting to Two-Range Gearbox

Structure and function
Amaco BAG0028.0 04.06
13

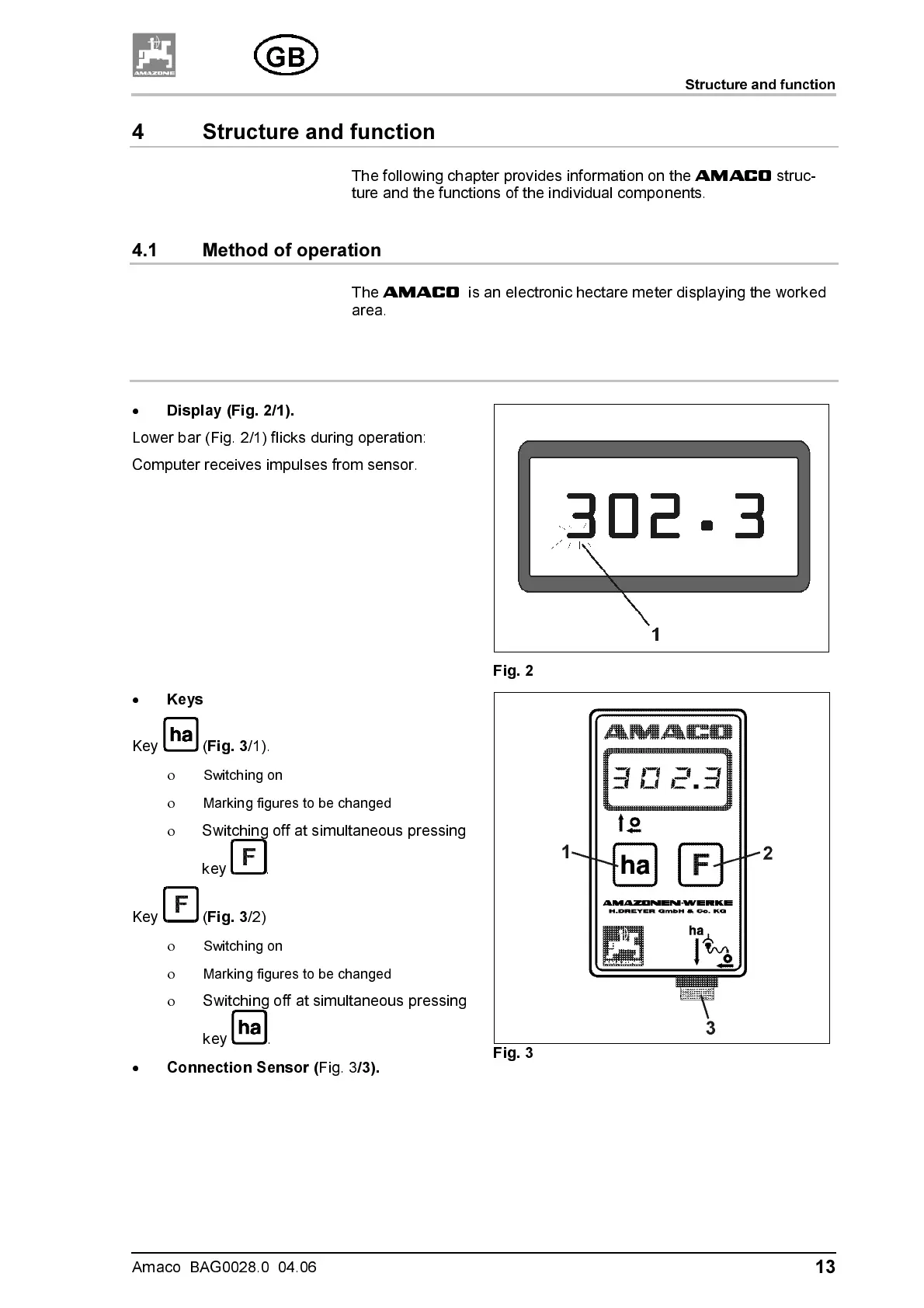

4 Structure and function
The following chapter provides information on the AMACO struc-
ture and the functions of the individual components.
4.1 Method of operation
The AMACO is an electronic hectare meter displaying the worked
area.
4.2 Structure
• Display (Fig. 2/1).
Lower bar (Fig. 2/1) flicks during operation:
Computer receives impulses from sensor.
Fig. 2
• Keys
Key
( Fig. 3 /1).
ο
Switching on
ο
Marking figures to be changed
ο Switch ing off at simultaneous
pressing
key
.
Key
( Fig. 3 /2)
ο
Switching on
ο
Marking figures to be changed
ο Switch ing off at simultaneous
pressing
key
.
• Connection Sensor ( Fig. 3 /3).
Fig. 3
