Structure and function
14
Amaco BAG0028.0 04.06

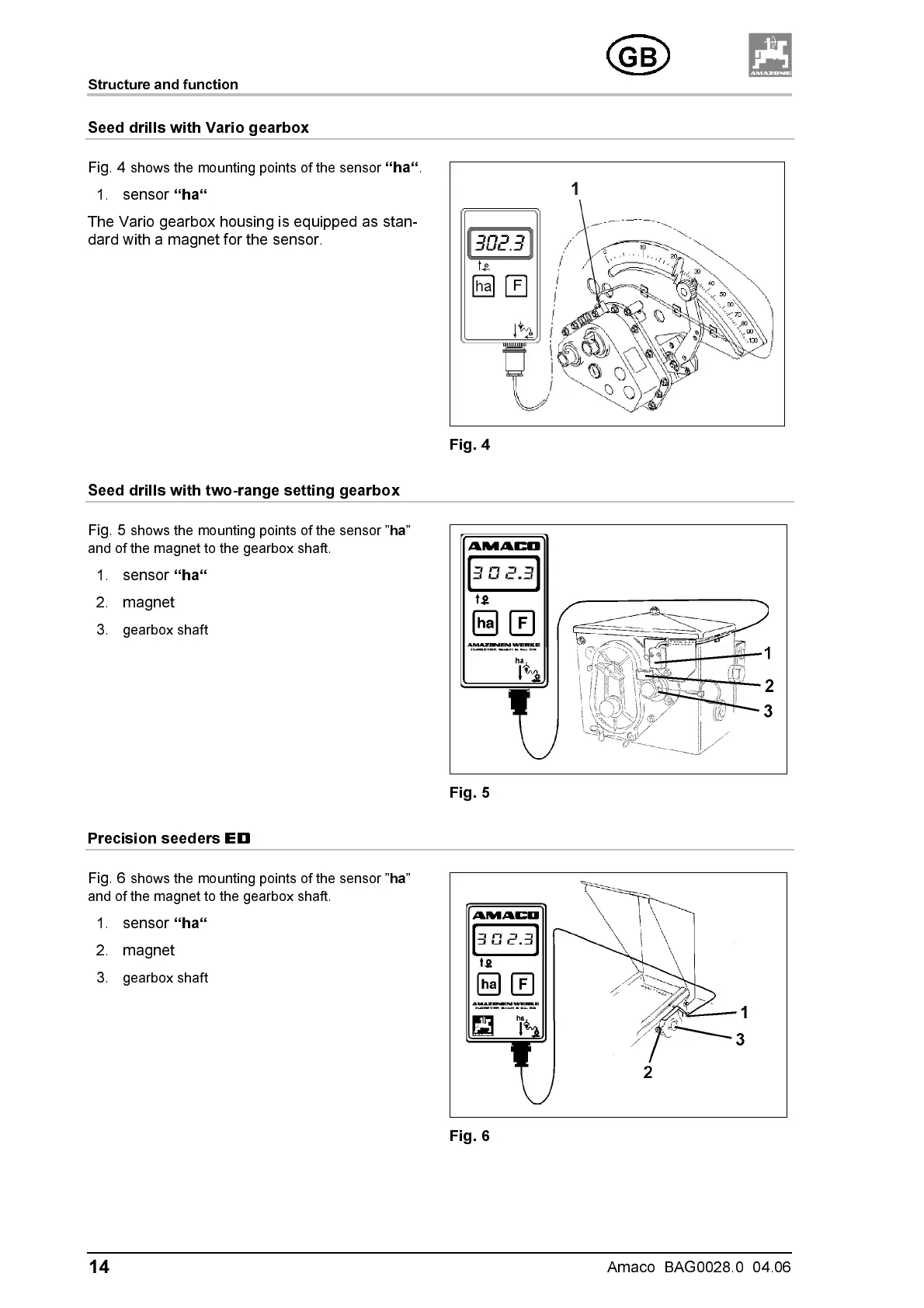

Seed drills with Vario gearbox
Fig. 4 shows the mounting points of the sensor “ha“ .
1. sensor “ha“
The Vario gearbox housing is equipped as stan-
dard with a magnet for the sensor.
Fig. 4
Seed drills with two-range setting gearbox
Fig. 5 shows the mounting points of the sensor ” ha ”
and of the magnet to the gearbox shaft .
1. sensor “ha“
2. magnet
3.
gearbox shaft
Fig. 5
Precision seeders ED
Fig. 6 shows the mounting points of the sensor ” ha ”
and of the magnet to the gearbox shaft .
1. sensor “ha“
2. magnet
3.
gearbox shaft
Fig. 6
