Layout and function
AMADRILL+ BAH0040-9 01.19
13
4 Layout and function
The following section provides information on the structure of the control terminal and the functions of
the individual components.

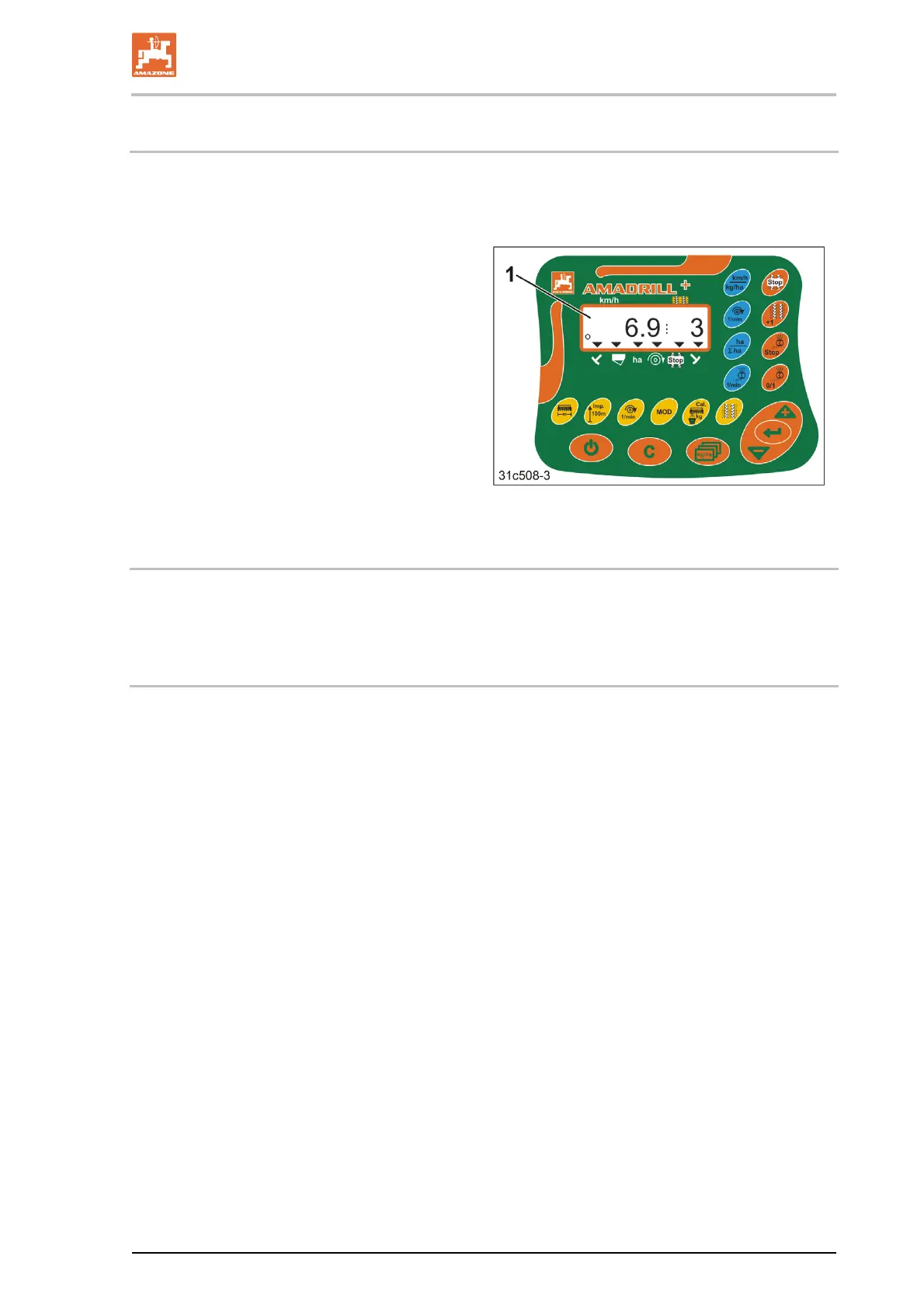

The control terminal has 6-digit display (Fig. 3/1).
The control terminal is equipped with an
EEPROM (memory chip) for storing data.
The data are again available for the next use,
even after a long period of deactivation of the on-
board power supply.
Fig. 3
4.1 Operation with DMC Primera direct seed drills
The control terminal issues an alarm when the set minimum fertiliser quantity is reached in the
fertiliser hopper.
4.2 Rotary cultivator operation
The control terminal monitors the function of the overload clutch.
Acoustic alarm in event of tool carrier standstill.
