Start-up
24
AMADRILL+ BAH0040-9 01.19
5 Start-up
5.1 Installing the control terminal

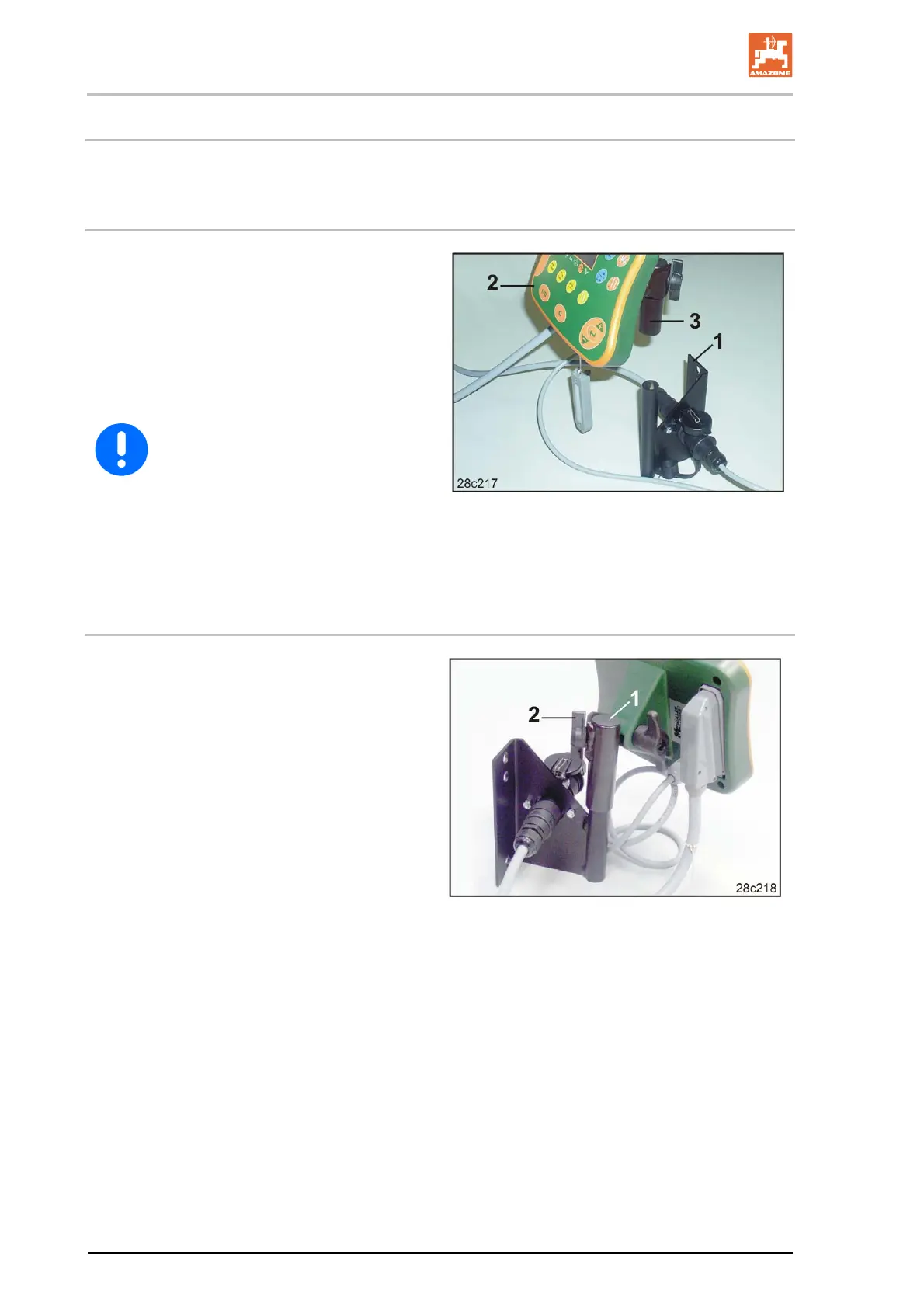

1. Screw the bracket (Fig. 17/1) so that is free
from vibrations and electrically connected to
the right of the driver's position in the tractor
cab, within visual range and easy to access
(Fig. 17/2).
The distance from the radio unit or aerial
must be at least 1 m.
Fig. 17
The control terminal must have a
conductive connection via the bracket
to the tractor chassis!
Remove the paint at the installation
points before installing the bracket!
2. Equip the control terminal with the
counterpart (Fig. 17/3).
5.2 Connecting the control terminal
1. Fit the counterpart (Fig. 18/1) onto the
bracket and clamp it in place with the wing
screw (Fig. 18/2).
Fig. 18
