4.4 Work display

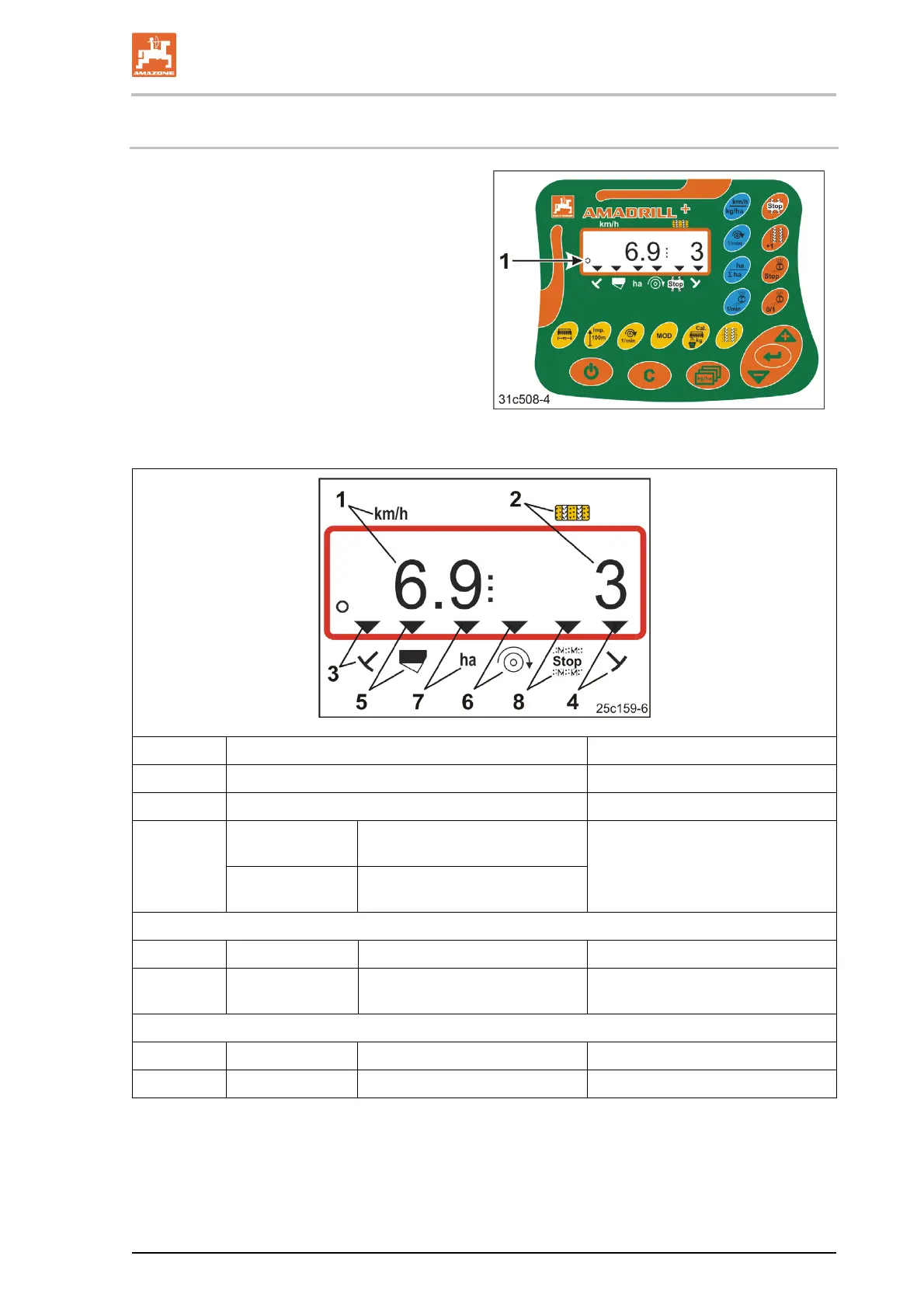

The work display (Fig. 12) appears with the first
pulse from the distance sensor.
The flashing circle symbol (Fig. 12/1) during work
indicates that
The control terminal receives pulses from
the distance sensor
The control terminal is working correctly.
The work display depends on the working
situation [see table (Fig. 13)].
Fig. 12
Fig. 13/… Display and/or control symbol Sensor
1 Forward speed [km/h] pulses from the distance sensor
2 Tramline counter position Control terminal data
3
or
4
Control symbol
Left track marker
in working position
pulse,
e.g. from track marker sensor
Control symbol
Right track marker
in working position
Display appears automatically in event of faults:
5 Control symbol Refill hopper pulses from level sensor
6 Control symbol
Blower fan speed deviation
above 10%
pulses from fan sensor
(pneumatic seed drills)
Displays called up via function buttons:
7 Control symbol Worked area [ha] pulses from the distance sensor
8 Control symbol Blocking the tramline counter Manual entry
