Amazone AmaDrill+ - Operation with Seed Drills

Layout and function
14
AMADRILL+ BAH0040-9 01.19
4.3 Operation with seed drills
The AmaDrill+
 adapts the seeding rate to the working speed when equipped with the appropriate equipment
 measures the covered part area [ha].
 stores the cultivated total area [ha].
 indicates the forward speed [km/h].
 controls the tramline control and the tramline marker
 indicates the position of the hydraulically operated track markers
 initiates an alarm when the set minimum quantity is reached in the tank (fill level sensor
required).
4.3.1 Operation with cam wheel seed drill

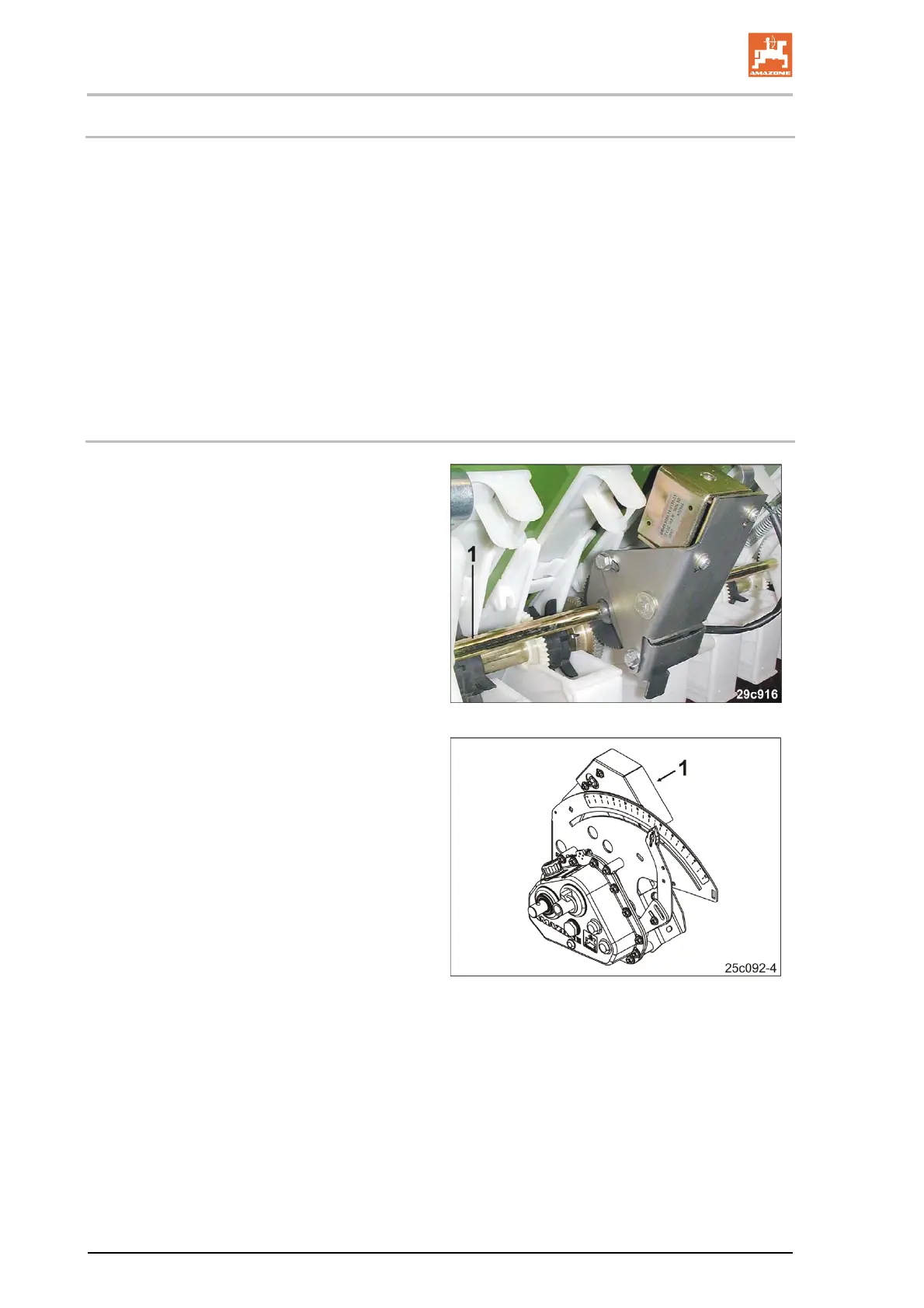

The AmaDrill+ monitors the lay shaft drive (Fig.
4/1) for seed drills equipped with tramline control.
Fig. 4
The AmaDrill+ regulates and controls the
seeding rate via the seed rate remote control.
The seed rate remote control is activated by an
electric cylinder 12V stroke = 130 mm (Fig. 5/1).
Fig. 5
