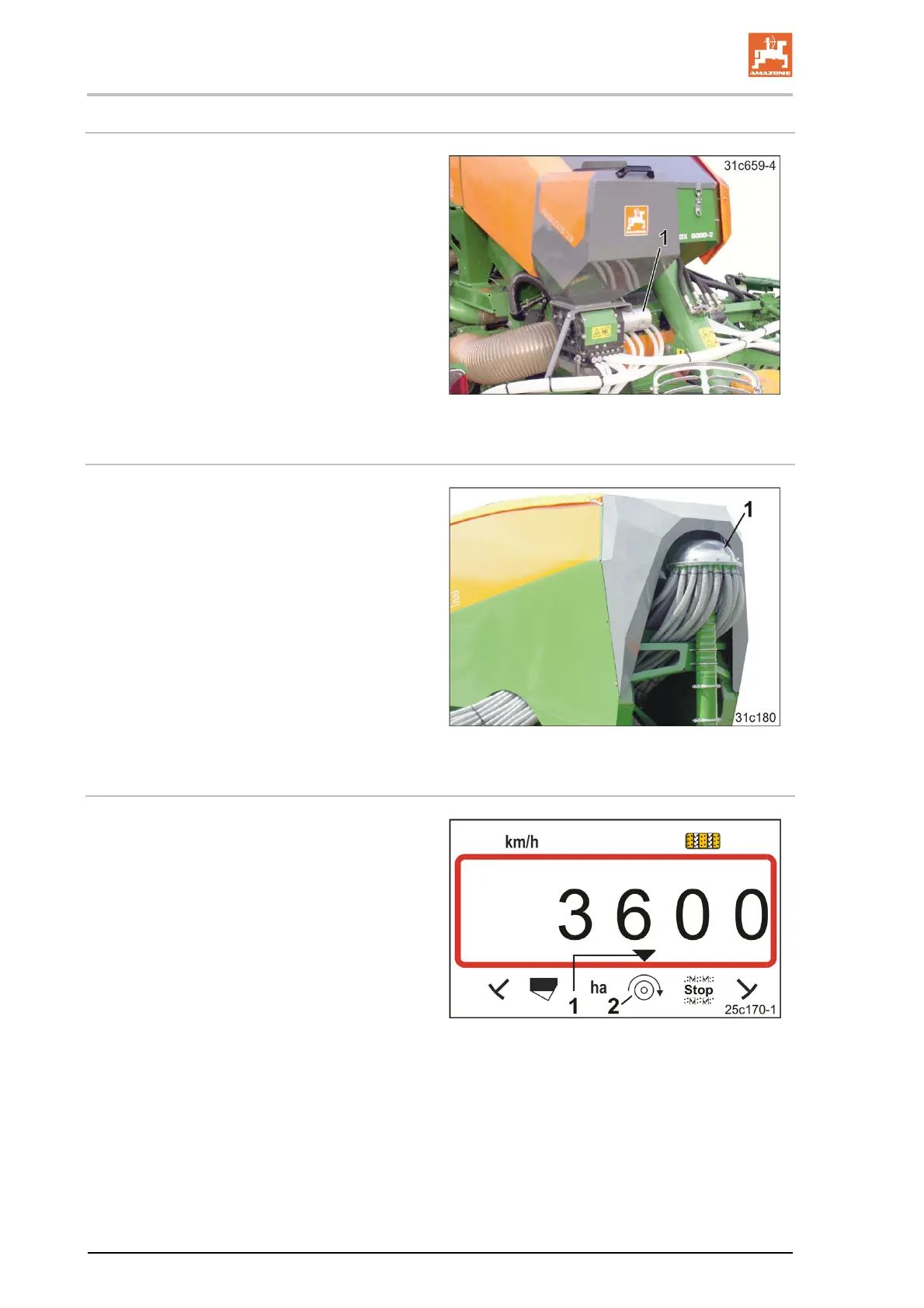

Micropellet spreader
The AmaDrill+ regulates and controls the
seeding rate of the micropellet spreader.
The metering unit of the micropellet spreader is
driven by an electric gear motor (Fig. 9/1).
Fig. 9
Distributor head
The AmaDrill+ monitors the tramline control in
the distributor head (Fig. 10/1). An acoustic
alarm sounds in the event of incorrect shutter
position.
Fig. 10
Blower fan
The control terminal monitors the fan speed.
If the actual speed deviates by more than 10 %
from the target speed, an acoustic signal is
initiated and in the display the control lamp (Fig.
11/1) above the speed symbol (Fig. 11/2)
flashes.
The speed monitoring is only active when the
seed drill is working.
Fig. 11
